Sea-ice-associated algae and zooplankton fecal pellets fuel organic particle export in the seasonally ice-covered northwestern Labrador Sea

Ocean warming and Arctic sea-ice decline are expected to affect the biological pump efficiency by altering the timing, quantity, quality, and composition of export production. However, the origins and composition of sinking organic matter are still generally understudied for the oceans, especially in ice-covered areas. Here, we use the compound-specific isotope analysis (CSIA) of amino acids (AAs) to investigate the sources and composition of exported organic matter from a sediment-trap-derived time series of sinking particles collected at depths of 469 and 915 m at the edge of Saglek Bank in the northwestern Labrador Sea from October 2017 to July 2019. The outer edge of Saglek Bank is located at the confluence of cold and fresh Arctic outflow and relatively warmer Atlantic waters. The area is subject to seasonal sea-ice cover and is a biological hotspot for benthic organisms, including deep-sea corals and sponges. Sea ice was present for ∼ 50 % to 60 % of the deployment days in both cycles. Phytoplankton blooms at our study site co-occurred with the onset of sea-ice melt. Microalgal taxonomy indicated the presence of ice-associated diatoms in the sinking particles during the spring bloom in 2018, confirming that sea-ice algae contributed to the organic particle export at our study site. The presence of abundant copepods and copepod nauplii caught in the sediment traps was consistent with a high abundance of copepods in overlying epipelagic waters. Stable carbon isotopes (δ¹³C) of essential amino acids (EAAs) of the sinking particles revealed a potentially important contribution of sea-ice algae as a carbon source at the base of the food web to sinking particles, with only minor modification by microbial resynthesis. Stable nitrogen isotopes (δ¹⁵N) of AAs of sinking particles provided independent evidence of the minor bacterial degradation, and Bayesian mixing models based on normalized δ¹⁵N-AA values revealed the dominant contribution of fecal pellets (76 %–96 %) to the sinking particles. Our study demonstrates the importance of sea-ice algae and fecal pellets to the biological pump in the seasonally ice-covered northwestern Labrador Sea, with sea-ice algae exported either directly via passive sinking or indirectly via zooplankton grazing and with fecal pellets dominating the organic particle fluxes.

1 Introduction

The ocean's biological pump sequesters about 10 Pg of carbon per year, which represents up to one-third of anthropogenic carbon emissions to the atmosphere (Sabine et al., 2004; Sabine and Tanhua, 2010). The pump operates by exporting unrespired particulate organic matter (POM) via three pathways: passive sinking (“gravitational pump”), active transport by animals (“migrant pump”), and physical mixing (“mixing pump”; Volk and Hoffert, 1985; Turner, 2015; Nowicki et al., 2022). Despite the importance of the biological pump in global biogeochemical models, the proportional contribution of each biological pump export pathway is poorly estimated. The effects of climate change (i.e., rising temperatures, enhanced ocean stratification and acidification, and changing nutrient availability) compound the uncertainties in biological pump functioning and efficiency (Finkel et al., 2010; Passow and Carlson, 2012; Arrigo and van Dijken, 2015). Arctic and subarctic seas are thought to represent a globally important carbon sink (Bates and Mathis, 2009; MacGilchrist et al., 2014) due to high rates of primary productivity across the expansive continental shelves (Kaltin and Anderson, 2005; Harrison et al., 2013), high nutrient availability (Kaltin et al., 2002; Murata and Takizawa, 2003), and sea-ice and solar dynamics (Rysgaard et al., 2007; Harrison et al., 2013). However, ongoing declines in seasonal sea-ice extent and enhanced freshwater input due to global warming have affected particulate organic carbon (POC) export in these regions (Steele et al., 2008; Lalande et al., 2009b; Grebmeier, 2012; Arrigo and van Dijken, 2015). An increase in primary production has been observed in the Arctic (Arrigo and van Dijken, 2015), which could lead to an increase in POC export (Lalande et al., 2009a, b). On the other hand, the loss of sea ice has also been shown to cause a reduction in surface nutrient availability and a shift in plankton community structure from larger-celled plankton to picoplankton, which may decrease the POC export to the deep sea (Li et al., 2009; Finkel et al., 2010). The accelerating loss of sea ice necessitates a deeper understanding of both the factors controlling POC export in ice-covered ecosystems and the ecosystem responses.

In remote regions, sinking particles are typically collected, measured, and characterized using moored sediment traps (Honjo and Doherty, 1988), especially in regions where seasonal sea-ice cover constrains the remote sensing of ocean color, preventing the detection of under-ice algal blooms (Strass and Nöthig, 1996; Yager et al., 2001; Fortier et al., 2002; Mundy et al., 2009; Arrigo et al., 2012, 2014). Export flux measurements, phytoplankton and zooplankton identification, and geochemical analyses of sinking particles provide information on (1) the sources, cycling, and fate of key elements in the ocean (e.g., carbon and nitrogen) and their biogeochemical roles and (2) the processes and mechanisms that control the fluxes of sinking particles. Nevertheless, it is difficult to identify and quantify the main sources contributing to sinking particles collected in sediment traps. Microalgae and zooplankton taxonomic enumeration can be complicated by large morphological variability within and between species, lack of taxonomic expertise, and inconsistency in identification methods (McQuatters-Gollop et al., 2017). Estimates of biomass or POC based on composition and abundance data can also be confounded by the wide range in cell sizes within and between functional groups (e.g., diatoms and dinoflagellates; Leblanc et al., 2012). Combining taxonomic methods with biomarker approaches will enhance quantification of the composition of exported sinking particles. This improvement is key to better understanding and predicting the responses of the Arctic/subarctic biological pump, marine ecosystems, and benthic communities to a rapidly changing climate.

Stable isotopes of carbon (δ¹³C) and nitrogen (δ¹⁵N) have been widely used to investigate biogeochemical processes in marine ecosystems (Peterson and Fry, 1987; Altabet et al., 1999). Isotopic compositions of sinking organic matter collected in long-term sediment traps record information about the sources and cycling of carbon and nitrogen on timescales of months to years (Nakatsuka et al., 1997; Altabet et al., 1999; Montes et al., 2013). However, traditional measurements of stable isotope values of bulk organic matter can be difficult to interpret due to confounding factors of source variability and heterotrophic modifications (Boecklen et al., 2011). Recent advances in carbon and nitrogen compound-specific isotope analysis (CSIA) of amino acids (AAs) has helped to address these complications (Larsen et al., 2009; Larsen et al., 2013; McMahon et al., 2013; Batista et al., 2014; Ohkouchi et al., 2017; Close, 2019; Shen et al., 2021). Interpretation of δ¹³C-AA analysis is based on the classification of AAs into essential and nonessential groups. Essential amino acids (EAAs) are synthesized only by autotrophs; hence, their δ¹³C values remain unchanged with trophic transfers (Larsen et al., 2013; McMahon et al., 2013). Diverse biosynthetic pathways and associated isotopic effects result in distinct and consistent δ¹³C-EAA signatures of different primary producers, which are reflected in the δ¹³C-EAA patterns of consumers (Hayes, 1993; Larsen et al., 2009). Interpretation of δ¹⁵N-AA, on the other hand, is based on different groupings that are independent of those based on δ¹³C. The δ¹⁵N values of source AAs (SrcAAs) undergo little or no δ¹⁵N enrichment during trophic transfers, whereas those of trophic AAs (TrAAs) are enriched with increasing trophic position or modified by microbial processing (McClelland and Montoya, 2002). Hence, the complementary but fully independent δ¹³C-AA and δ¹⁵N-AA analyses offer detailed insights into carbon and nitrogen origins, trophic changes, and microbial degradation and allow for more accurate and detailed interpretation of stable isotope data (McMahon et al., 2013; McMahon and McCarthy, 2016).

The goal of this study is to investigate the organic carbon and nitrogen sources and trophic and microbial processing of sinking particles in the seasonally ice-covered northwestern Labrador Sea. Two sediment traps were deployed at different depths (469 and 915 m, respectively) at the outer edge of Saglek Bank from October 2017 to August 2018 and from August 2018 to July 2019. Measurements of particle flux, phytoplankton and zooplankton taxonomy, and bulk stable isotopes were combined with CSIA-AA to characterize the origins, alteration, and transport mechanisms of sinking particles. Together, these data help constrain the sources and relative contributions of different components to the sinking particles in the northwestern Labrador Sea.

2 Material and methods

2.1 Study site

Located in the northwestern section of the Atlantic Ocean, the Labrador Sea is a high-latitude marginal sea of the Atlantic Ocean and an important transition zone connecting Arctic and subarctic ecosystems, bounded by the Labrador and Newfoundland shelves to the west and the southern tip of Greenland to the east (Fragoso et al., 2017). The overall circulation of the Labrador Sea is cyclonic, with layers of distinct water masses in the boundary currents. The upper layer of boundary currents comprises cold and fresh Arctic waters from mixing between the water entering Baffin Bay from the eastern Davis Strait, which is cooled in the winter as it circulates within the bay, and the inflow from the Arctic Ocean, which is mainly identified as the Baffin Island Current (BIC) and the Labrador Current (LC; Fig. 1; Tang et al., 2004). Underneath are the relatively warm and saline waters of the West Greenland Current (WGC), with a dominant inflow through the eastern Davis Strait and a branch deflecting westwards forming a counterclockwise gyre (Irminger Current) while the remaining waters propagate north (Fig. 1; Yashayaev, 2007; Frajka-Williams et al., 2009). In Baffin Bay, below the WGC water lies the Baffin Bay Deep Water at 1200–1800 m and the Baffin Bay Bottom Water below 1800 m, which have no direct access to the Arctic and Atlantic oceans due to the relatively shallow sill depths of the Arctic channels and the Davis Strait (Tang et al., 2004). The inner shelf of the Labrador Sea is covered by landfast ice with drifting pack-ice cover further offshore from January to May each year (Hall et al., 1999; National Snow and Ice Data Center). The study area lies in a transitional zone between the ice-dominated Boreal Polar Province (BPLR) of the Labrador Shelf, and the largely ice-free and deeply convective Atlantic Arctic Province (ARCT) of the Atlantic Polar Biome (Longhurst, 2010), within the path of high iceberg drifts from the north (Baffin Bay) and the west (Hudson Strait; Marson et al., 2018). Differences in physical–chemical parameters shape variability in phytoplankton community composition and the seasonality of phytoplankton blooms between and within these two provinces (Fratantoni and Pickart, 2007; Yashayaev, 2007; Frajka-Williams and Rhines, 2010; Fragoso et al., 2017). Phytoplankton blooms start on the Labrador Shelf from April to early May. These blooms are typically dominated by diatoms, favored by high silicate concentrations in Arctic waters (Fragoso et al., 2018), and facilitated by vigorous tidal mixing in Hudson Strait (Drinkwater and Harding 2001). From mid-May to June, weaker blooms occur in the central Labrador Sea, induced by increased light levels (Frajka-Williams and Rhines, 2010). The strong bottom currents on the Labrador Shelf expose hard substrates, providing suitable habitats for deep-sea corals and sponges (Wareham and Edinger, 2007). Observations of abundant and diverse deep-sea corals and sponges have been reported at Saglek Bank, forming important habitats for many fish and invertebrate species (Wareham and Edinger, 2007; Dinn et al., 2020). With ongoing global warming and sea-ice decline, ice conditions at the study site are projected to be impacted, with up to a 70 % decrease in winter sea-ice extent and a shorter winter ice duration (Han et al., 2019), which may have cascading effects on the phytoplankton community; export fluxes; and, in turn, benthic communities.

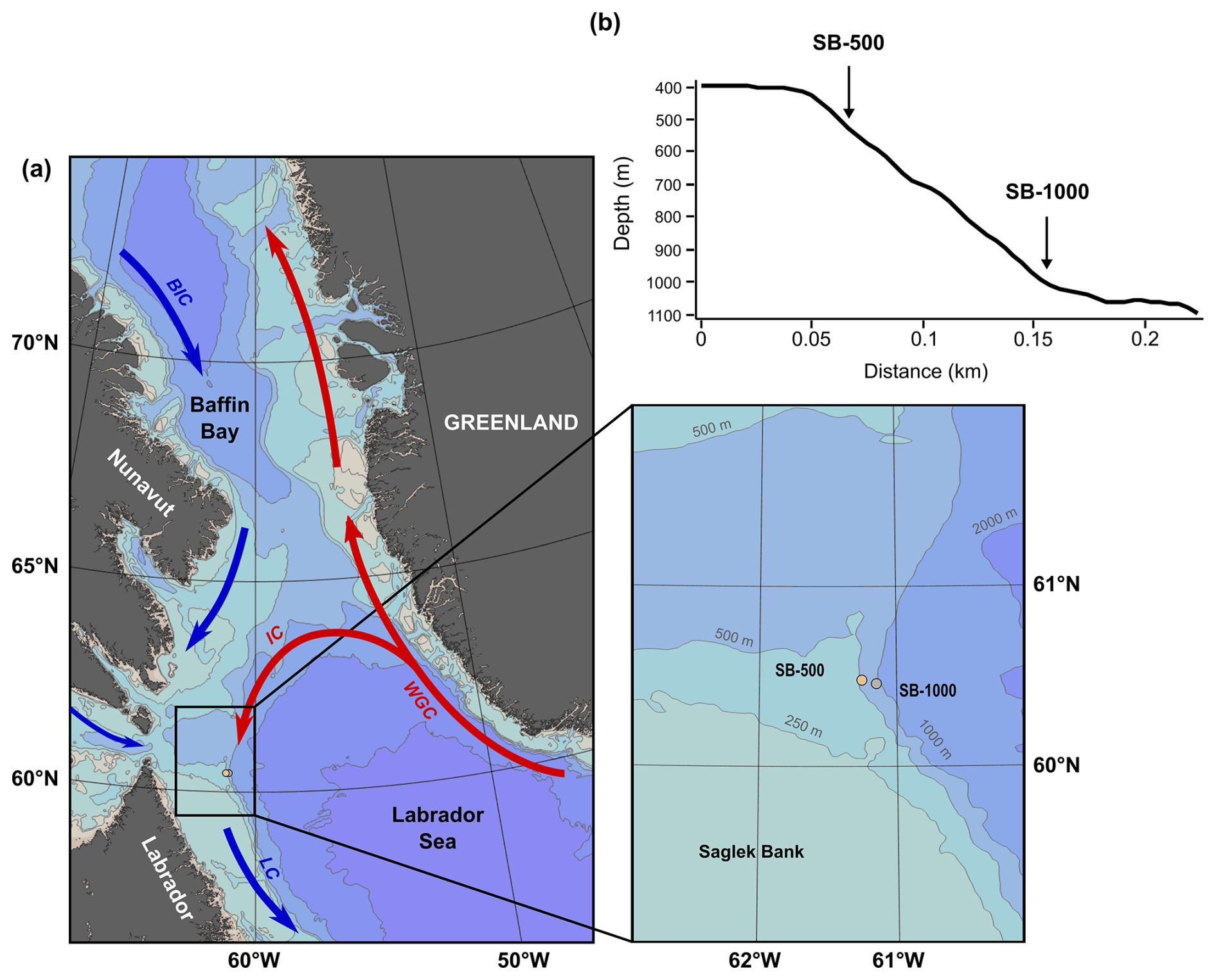

Figure 1 (a) Map and detailed inset of the study site off Labrador and Nunavut (Canada) with the bathymetry (gray contours) and a simplified representation of the main boundary currents (arrows) and sediment trap locations (circles). (b) A cross section of the continental slope outlining where the two sediment traps (SB-500 and SB-1000) were deployed and their depth profiles. The black rectangle in panel (a) represents the area where the sea-ice concentration and surface chl-a concentration were derived (59–62° N, 60–63° W). The abbreviations used in panel (a) are as follows: BIC, Baffin Island Current; LC, Labrador Current; IC, Irminger Current; and WGC, West Greenland Current. The figure was made with Ocean Data View (Schlitzer, 2021).

2.2 Remote sensing

Satellite-derived daily average sea-ice concentrations were retrieved at a 12.5 km resolution from the Centre ERS d'Archivage et de Traitement (CERSAT) of the French Research Institute for the Exploration and Exploitation of the Sea (IFREMER) and averaged for a 3° × 3° grid centered at the mooring location (59–62° N, 60–63° W; Fig. 1). Weekly average chlorophyll-a (chl-a) concentrations for the same selected grid (59–62° N, 60–63° W) were derived from NASA Ocean Color (Aqua MODIS, 4 km × 4 km; missing data are due to obstacles in observing conditions (e.g., clouds); https://oceancolor.gsfc.nasa.gov/, last access: 18 October 2023) and the Bedford Institute of Oceanography Remote Sensing Group (https://github.com/BIO-RSG, last access: 18 October 2023). The large areal grid (333 km × 172 km) used for sea-ice and chl-a retrieval was necessary to smooth out data coverage gaps.

2.3 Sediment trap and zooplankton net sampling and processing

Two sediment traps were deployed off Saglek Bank on the northwestern Labrador slope from October 2017 to August 2018 at a depth of 469 m (bottom depth: 509 m; 60.47° N, 61.26° W; SB-500) and from August 2018 to July 2019 at a depth of 915 m (bottom depth: 1015 m; 60.46° N, 61.16° W; SB-1000) during the annual ArcticNet expeditions of the Canadian Coast Guard Ship (CCGS) Amundsen (Table 1; Fig. 1). Both sediment traps (TECHNICAP PPS 3/3; 0.125 m² aperture) were equipped with a baffle sieve (diameter: 9.5 mm) covering the trap opening and 24 sampling bottles (265 mL) programmed to rotate every 14 d. Before deployment, each sampling bottle was filled with filtered seawater with a salinity of > 36 PSU (where PSU denotes practical salinity units) adjusted using sodium chloride. Sodium-borate-buffered formaldehyde (2 % $v/v$) was added to preserve the collected particles during and after deployment. In August 2018 and July 2019, both sediment traps were recovered before the final sampling bottle rotation; therefore, the last sampling bottles remained open and were excluded from the study. Zooplankton were sorted from half of the volume of each trap sample under a stereomicroscope and preserved in 4 % formalin solution. Zooplankton were counted and identified to the lowest taxonomic level possible (Dezutter et al., 2021). Following the removal of zooplankton, subsamples were analyzed for total particulate matter (TPM), particulate organic carbon (POC), and particulate nitrogen (PN), and they were converted to daily fluxes ($\mathrm{mg}{\mathrm{m}}^{-\mathrm{2}}{\mathrm{d}}^{-\mathrm{1}}$) following Dezutter et al. (2021). Microalgal cells were enumerated and counted to the lowest taxonomic level possible using an inverted microscope (Wild Heerbrugg) in accordance with Lund et al. (1958). For each sample, a minimum of 100 cells were enumerated along three transects (Genin et al., 2021) at a magnification of 20× for the 2017–2018 deployment and a magnification of 60× for the 2018–2019 deployment. Microalgal counts were converted to daily fluxes ($\mathrm{cells}{\mathrm{m}}^{-\mathrm{2}}{\mathrm{d}}^{-\mathrm{1}}$). For bulk and amino acid stable isotope analyses, samples were washed with Milli-Q water, freeze-dried, and homogenized prior to further analyses.

Table 1 Sediment trap deployment information and sea-ice conditions during the deployment in the northwestern Labrador Sea.

^∗ Deployment days for the final sampling bottle rotations were excluded.

Zooplankton were opportunistically sampled with a MultiNet plankton sampler (HYDRO-BIOS, mesh size 200 µm) close to the HiBioC mooring site (60.47° N, 61.16° W) on 25 July 2021, during the annual CCGS Amundsen expedition. The net was opened at 200 m and pulled up all the way to the surface. Once retrieved, zooplankton from the 200–0 m layer were gently poured into incubation chambers filled with filtered seawater (0.2 µm) to clear their gut content for 6–12 h (Doherty et al., 2021; Stamieszkin et al., 2021). After incubation, zooplankton were transferred into a labeled plastic bag and immediately frozen and stored at −20 °C until further analysis.

In the laboratory, 30 to 50 copepods were subsampled from the zooplankton samples using a binocular microscope (Motic SMZ168). The subsampled copepods were freeze-dried and homogenized until further analysis. Detritus aggregates (clumps of dark-colored materials; Fig. 4b) that were collected along with the zooplankton from the incubation chambers were hand-picked into a Petri dish filled with Milli-Q water under the microscope. The collected detritus aggregates were then filtered onto 0.7 µm GF/F filters (Whatman) and freeze-dried until further analysis.

2.4 Bulk and amino acid δ¹³C and δ¹⁵N analysis

Subsamples were taken for bulk and amino acid stable isotope analyses (Tables S1 and S2 in the Supplement). Bulk δ¹³C and δ¹⁵N were measured in duplicate or triplicate based on the available dry weight of sinking particles. Subsamples for bulk δ¹³C analysis were decarbonated in 4 % HCl at 80 °C for 1 h and rinsed in Milli-Q water repeatedly until the pH neutralized, following the method of Galy et al. (2007). Decarbonated samples were dried at 50 °C overnight. Subsamples for bulk δ¹⁵N analysis were not pre-treated. Bulk δ¹³C and δ¹⁵N analyses were carried out at the Canada Excellence Research Chairs laboratory at Dalhousie University using an elemental analyzer (EA; Elementar MICRO cube) coupled with an isotope ratio mass spectrometer (IRMS; isoprime 100). Isotopic values were calibrated to co-analyzed reference material and reported in delta notation (δ) in units of per mill (‰) relative to Vienna Pee Dee Belemnite (VPDB) and air for δ¹³C and δ¹⁵N, respectively. Analytical precision based on differences between sample replicates was < 0.15 ‰ for both δ¹³C and δ¹⁵N.

Approximately 10 mg of organic carbon per sample was required for δ¹³C-AA and δ¹⁵N-AA analyses. Samples with insufficient organic carbon were combined with adjacent samples (if available). Each sample composite included no more than three samples (6 weeks) in total. Combined periods are 31 January to 3 March 2018, 3 April to 1 May 2018, and 3 August to 18 September 2018. Sample composites were hydrolyzed in 6N HCl (Sigma-Aldrich) at 110 °C for 20 h, purified, and derivatized in batches of six to seven samples following previously established protocols (Silfer et al., 1991; Larsen et al., 2013; Batista et al., 2014; McMahon et al., 2015; Chen et al., 2022). Samples were derivatized by esterification using isopropanol followed by acylation using trifluoroacetic acid anhydride (Ohkouchi et al., 2017). Each sample batch contained two calibration standards of AA mixtures with known δ¹³C and δ¹⁵N values and a laboratory standard (homogenized chlorella powder; ORGANIKA) processed in the same way as samples. Samples were measured in triplicate for δ¹³C and δ¹⁵N, bracketed by triplicate injections of calibration standards, using a TRACE 1310 gas chromatograph (GC) coupled with a DELTA V IRMS (Thermo Scientific). A total of 12 AAs were typically resolved: alanine (Ala), glycine (Gly), proline (Pro), valine (Val), leucine (Leu), isoleucine (Ile), asparagine + aspartic acid (Asx), threonine (Thr), serine (Ser), glutamine + glutamic acid (Glx), phenylalanine (Phe), and lysine (Lys). Final δ¹³C values were corrected for the isotopic fractionation and the introduction of carbon atoms during derivatization according to Silfer et al. (1991) and were normalized against instrument drift between successive triplicate injections of the amino acid standard by applying linear regression (Yarnes and Herszage, 2017). Final δ¹⁵N values were calibrated based on the offset between known and measured values of calibrated standards and normalized against instrument drift by applying linear regression. The average reproducibility of δ¹³C was ± 0.3 ‰ for the internal standard Nle (n = 12) and from ± 0.3 ‰ (Ala, Leu, Asp, and Phe) to ± 0.8 ‰ (Lys) for AA standards, respectively (n = 12 for each AA). The average reproducibility of δ¹⁵N was ± 0.4 ‰ for the internal standard Nle (n = 11) and from ± 0.2 ‰ (Glx) to ± 0.6 ‰ (Ala, Val, and Ile) for AA standards, respectively (n = 11 for each AA). The absolute (mol) and relative (mol %) abundances of amino acids were estimated by calibration of mass 44 peak areas against that of the internal standard (Nle) using a relative response factor for each AA, following Kaiser and Benner (2005). Yields of total hydrolyzable AAs (THAAs) were determined by dividing the total abundance of AAs by the amount of hydrolyzed material.

2.5 Calculations and statistical analyses

To account for the spatiotemporal variations in baseline δ¹³C (Larsen et al., 2015; Chen et al., 2022), the δ¹³C-AA values were internally normalized by subtracting the mean of five EAAs (Phe, Leu, Ile, Thr, and Val) for each sample (denoted as normalized δ¹³C). Lys was excluded from the EAA group due to its coelution issues with tyrosine (Tyr). Normalization accounts for influences from inorganic carbon sources and other environmental parameters, whereas the internal variations between AAs reveal the underlying biochemical mechanisms (Larsen et al., 2015; McMahon et al., 2015; Stahl, 2021; Elliott Smith et al., 2022).

The δ¹⁵N values for THAAs (δ¹⁵N_THAA) were calculated by summing the mole-percentage-weighted δ¹⁵N values following McCarthy et al. (2013):

$$\begin{array}{}\text{(1)}& {\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_{\mathrm{THAA}}=\sum \left({\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_i\times {\mathrm{mol}\mathrm{\%}}_i\right),\end{array}$$

where δ¹⁵N_i is the calibrated δ¹⁵N value of an individual AA and mol %_i is the mole percentage of the corresponding AA.

The “metazoan” trophic position (TP_meta) of samples was calculated based on calibrated δ¹⁵N values of Glx and Phe, following the equation proposed by Chikaraishi et al. (2009) and modified by Nielsen et al. (2015):

$$\begin{array}{}\text{(2)}& {\text{TP}}_{\text{met}}={\displaystyle \frac{\left({\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_{\mathrm{Glx}}-{\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_{\mathrm{Phe}}-\mathrm{2.9}\mathrm{‰}\right)}{\mathrm{6.6}\mathrm{‰}}}+\mathrm{1}.\end{array}$$

The “protozoan” trophic position (TP_proto) was calculated based on calibrated δ¹⁵N values of Ala and Phe, following Deìcima et al. (2017) and Décima and Landry (2020):

$$\begin{array}{}\text{(3)}& {\text{TP}}_{\text{pro}}={\displaystyle \frac{\left({\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_{\mathrm{Ala}}-{\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_{\mathrm{Phe}}-\mathrm{3.2}\mathrm{‰}\right)}{\mathrm{4.5}\mathrm{‰}}}+\mathrm{1}.\end{array}$$

Three proxies are commonly used to evaluate the degree of heterotrophic bacterial degradation in organic material, based on changes in AA composition or average deviation of δ¹⁵N-TrAAs. The percentage of N represented by THAA in total N (THAA-N %) is used as a degradation indicator, where a THAA-N % below 38 % is considered to indicate diagenetic alteration (Cowie and Hedges, 1992). THAA-N % was calculated as follows:

$$\begin{array}{}\text{(4)}& \text{THAA-N}\mathit{\%}={\displaystyle \frac{\sum ({\mathrm{mol}}_i\times n_i)}{\text{DW}\times \text{TN}\mathit{\%}÷M_{\mathrm{N}}}}\times \mathrm{100}\mathit{\%},\end{array}$$

where n is the number of N atoms in an individual AA, mol_i is the absolute abundance of this AA, DW is the dry weight of hydrolyzed material, TN % is the weight percentage of total N, and M_N is the atomic mass of N. Similarly, the percentage of carbon represented by THAA in total organic carbon (THAA-C %) was calculated based on the number of carbon atoms, the total organic carbon percentage, and the atomic mass of carbon.

The commonly used degradation index (DI) is based on the changes in the relative concentration of AAs with diagenetic alteration (Dauwe and Middelburg, 1998; Dauwe et al., 1999), and this index was calculated following Dauwe et al. (1999):

$$\begin{array}{}\text{(5)}& \text{DI}=\sum _i\left[{\displaystyle \frac{{\text{var}}_i-{\text{AVG}}_i}{{\text{SD}}_i}}\right]\times {\text{fac.coef}}_i,\end{array}$$

where var_i is the mole percentage of each AA in this dataset (Ala, Asp, Glx, Gly, Ile, Leu, Phe, Thr, and Val); AVG_i and SD_i are the mean and standard deviation of an individual AA in the reference dataset from Dauwe et al. (1999), respectively; and fac.coef_i is the factor coefficient for the corresponding AA based on the first principal component factor from Table 1 in Dauwe et al. (1999). More positive or negative DI values indicate relatively fresher or more degraded materials, respectively. Note that the DI was calculated without the full suite of AAs used in Dauwe et al. (1999), as these AAs were unable to be resolved across all samples (Ser, Tyr, and methionine) or were not measured under the given analytical conditions (histidine and arginine). The calculated DI values are, therefore, used for assessing relative changes in diagenetic alteration among samples and may not be directly comparable to literature data. The degree of selective heterotrophic resynthesis was evaluated by calculating the ∑V based on the average deviation of calibrated δ¹⁵N values of TrAAs from their mean, following the formula from McCarthy et al. (2007):

$$\begin{array}{}\text{(6)}& \sum V={\displaystyle \frac{\mathrm{1}}{n}}\sum \text{ABS}\left({\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_i-{\mathit{\delta }}^{\mathrm{15}}{\mathrm{N}}_{\mathrm{mean}}\right),\end{array}$$

where n is the number of TrAAs used in the calculation, δ¹⁵N_i represents the calibrated δ¹⁵N values of each TrAA (Ile, Leu, Asx, Glx, Pro, and Ala), and δ¹⁵N_mean is the average δ¹⁵N of these AAs. Higher ∑V values suggest a higher degree of heterotrophic resynthesis, with values of ∼ 1 in fresh phytoplankton biomass, 1–2 in fresh zooplankton biomass, and up to ∼ 4 in highly degraded materials such as deepwater suspended POM and high-molecular-weight dissolved organic matter (McCarthy et al., 2007; Yamaguchi and McCarthy, 2018; Ianiri and McCarthy, 2023).

AA-related indexes were not measured across all 39 individual sediment trap samples because of insufficient organic content or because sample material was exhausted following bulk geochemical analyses. Therefore, where possible, temporally adjacent samples were combined to obtain the requisite 10 mg of organic carbon for GC-IRMS analysis. In some samples, one or more AAs were not resolved due to small peaks or coelution during GC-IRMS runs, also leading to missing values.

Differences in CSIA-AA patterns and parameters were tested between sediment traps, detritus, copepods, and other published end-members using two-sample t tests. Prior to carrying out the two-sample t test, the residuals of normalized δ¹³C and calibrated δ¹⁵N values were tested for univariate normality with a Shapiro–Wilk test (R package: stats). To compare the normalized δ¹³C signatures between sediment traps and sea-ice and pelagic algae, principal component analysis (PCA; R package: FactoMineR) and linear discriminant analysis (LDA; R package: MASS) were performed in R version 4.1.1 with the RStudio interface (version 1.4.1717). Standard ellipse areas (SEAs) were plotted for each group's bivariate means in the PCA, each enclosing ∼ 40 % of the data (Batschelet 1981; Jackson et al., 2011).

Bayesian mixing models based on δ¹⁵N-AA were used to estimate the proportional contributions of end-member sources (phytoplankton, zooplankton, fecal pellets, and microbially degraded organic material; Wojtal et al., 2023; Golombek et al., 2024). To ensure robust representation of end-member signatures and because there were no end-member data specific to the Labrador Sea, the data are from all available literature sources (McClelland and Montoya, 2002; Chikaraishi et al., 2009; Hannides et al., 2009, 2013; Yamaguchi and McCarthy, 2018; Doherty et al., 2021). The models were parameterized using end-member means and standard deviations of δ¹⁵N-Ala and δ¹⁵N-Thr, normalized to δ¹⁵N-Phe to account for regional differences in baseline δ¹⁵N. These specific AAs have been shown to best separate the potential end-member sources (Doherty et al., 2021). Models were run in R (MixSIAR; Stock and Semmens, 2016) with an uninformative prior and a Markov chain Monte Carlo (MCMC) length of 10⁶ (Stock and Semmens, 2016). Model convergence was tested with Geweke and Gelman–Rubin diagnostic tests (Stock and Semmens, 2016). We report the median of results for each end-member to account for the skewed distributions of model results.

3 Results

3.1 Environmental conditions

Sea ice in the study area began forming in early January for both sediment trap deployments and persisted until June in 2018 and until May in 2019 (Table 1, Fig. 2a). Sea-ice concentration during the ice season averaged around 40 % during both deployments (Table 1).

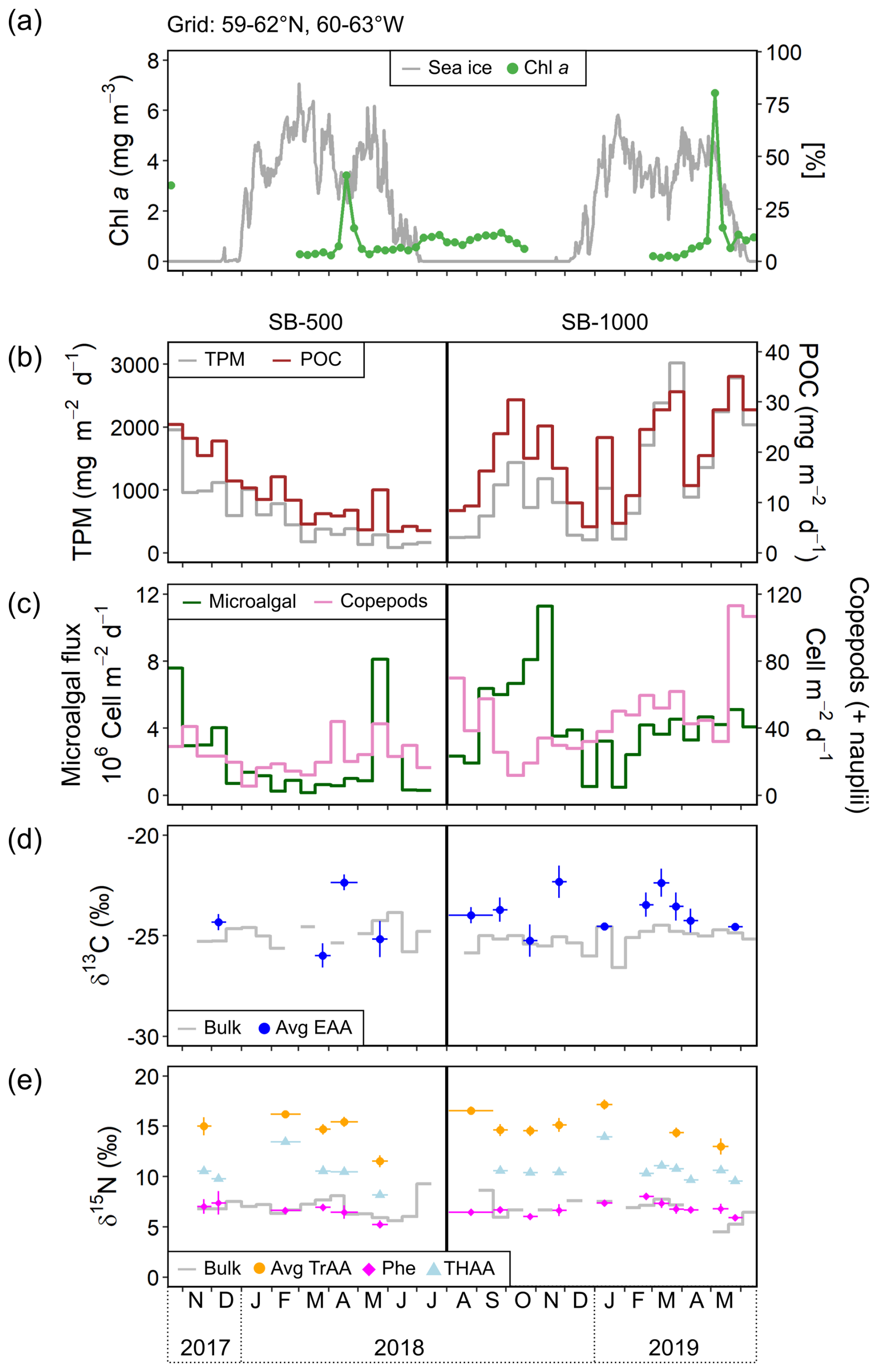

Figure 2 Time series of (a) satellite-derived daily sea-ice concentration at a 12.5 km resolution from the Centre ERS d'Archivage et de Traitement (IFREMER) and weekly averaged chl-a concentration derived from NASA Ocean Color (Aqua MODIS, 4 km × 4 km; missing data are due to obstacles in observing conditions; https://oceancolor.gsfc.nasa.gov/, last access: 18 October 2023) and the Bedford Institute of Oceanography Remote Sensing Group (https://github.com/BIO-RSG, last access: 18 October 2023) for the 3° × 3° grid centered at the mooring site (59–62° N, 60–63° W); (b) total particulate matter (TPM) and particulate organic carbon (POC) fluxes; (c) microalgal flux (diatoms × Chlorophyceae × flagellates) and copepod flux (including copepod nauplii); (d) bulk δ¹³C and average δ¹³C of five essential amino acids (Avg EAA; Phe, Thr, Ile, Leu, and Val); and (e) bulk δ¹⁵N, average δ¹⁵N of trophic AAs (Avg TrAA), Phe, and total hydrolyzable AAs (THAA) of SB-500 and SB-1000 sinking particles. Vertical error bars show ± 1 SD for each sample (n = 3–4). Horizontal error bars show the temporal ranges of individual or combined samples (see Sect. 2.4).

The remotely sensed chl-a concentration showed peaks in late April in 2018 and in early May in 2019, when the ice concentration was still > 25 % (Fig. 2a). The timing of these blooms coincided with the onset of > 15 h of daylight (Astronomical Applications Department of the United States Naval Observatory, 2023, “Duration of Daylight”), followed by smaller peaks in chl-a concentrations (< 2 mg m⁻³) during the open-water period (defined as a sea-ice concentration of < 10 %; Fig. 2a).

3.2 Particulate matter and organic carbon fluxes

Daily fluxes of TPM shared similar trends with POC for each cycle (Fig. 2b). In SB-500, TPM and POC showed an overall decreasing trend from late October 2017 to July 2018, with a small peak in May (Fig. 2b). In SB-1000, TPM and POC peaks were observed in early October in 2018 and late March and May in 2019 (Fig. 2b).

3.3 Microalgal fluxes and swimmers

Diatoms, green algae (Chlorophyceae), and flagellates composed most of the microalgal flux (∼ 97 %). Algal fluxes peaked in late October 2017 and late May 2018 at SB-500 and in early November 2018 at SB-1000 (Fig. 2c). Peaks in diatom fluxes were observed in late October in 2017 and from May to June in 2018 at SB-500 (Fig. 3a). Centric diatoms contributed the majority of the diatom export in both cycles (Fig. 3b). Shortly before the peak in diatom flux in late May 2018, a surface chl-a maximum was observed in April (Figs. 2a and 3a). During the peak diatom flux in late May in 2018, the sea-ice-exclusive species Nitzschia frigida and Melosira arctica were reported (Fig. 3). Centric and pennate diatom species that are ice-associated, for example, Fragilariopsis spp. and Nitzschia/Pseudo-nitzschia spp., were also reported during the peak flux in 2018 (Fig. 3). Relatively high fluxes of green algae (> 2 ×10⁶ $\mathrm{cells}{\mathrm{m}}^{-\mathrm{2}}{\mathrm{d}}^{-\mathrm{1}}$) were observed in late October and November and in early December in 2017 at SB-500 and from early September to early November in 2018 at SB-1000 (Fig. 3a). Flagellates dominated the algal fluxes at SB-1000, contributing up to ∼ 75 % of the flux (Fig. 3b).

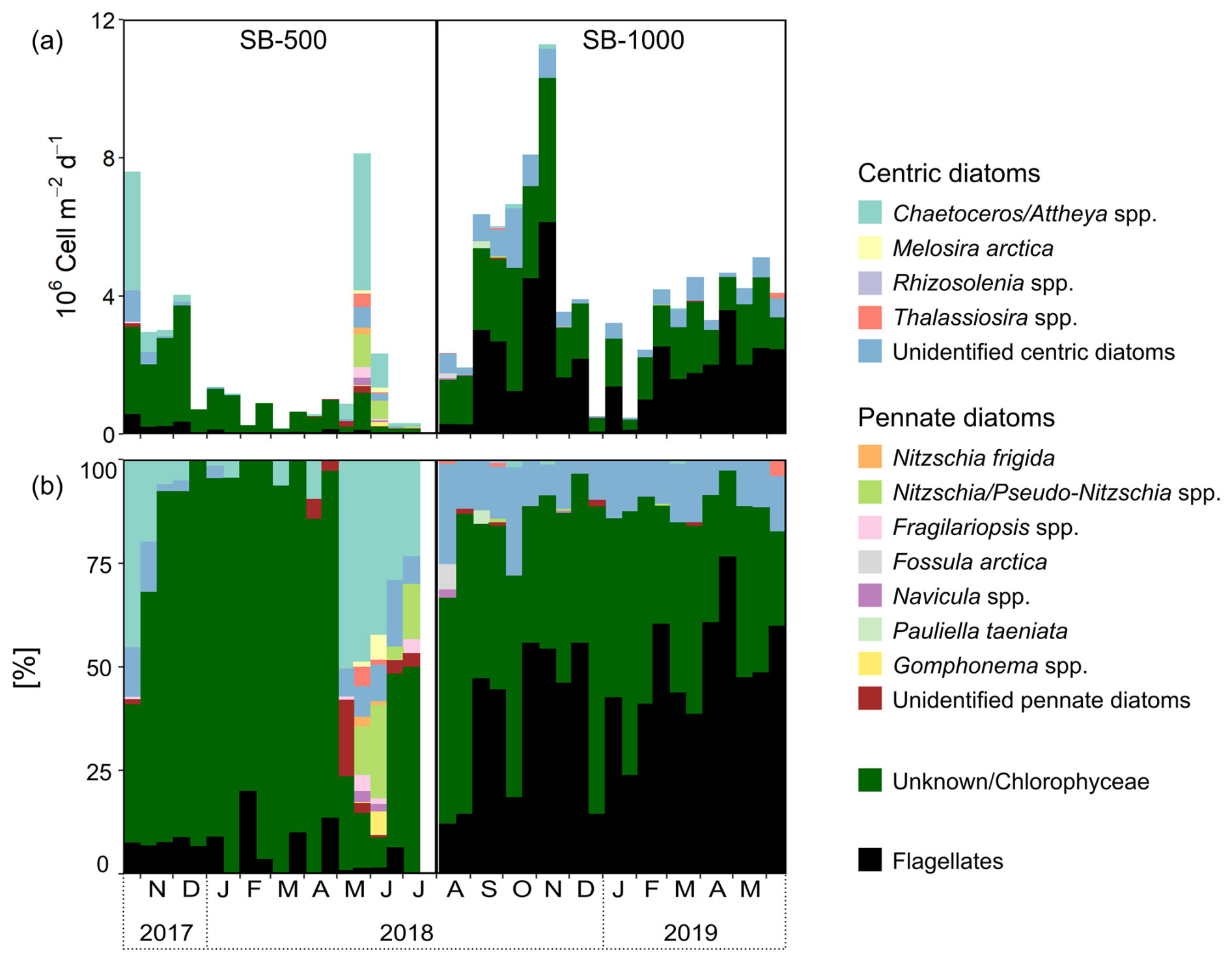

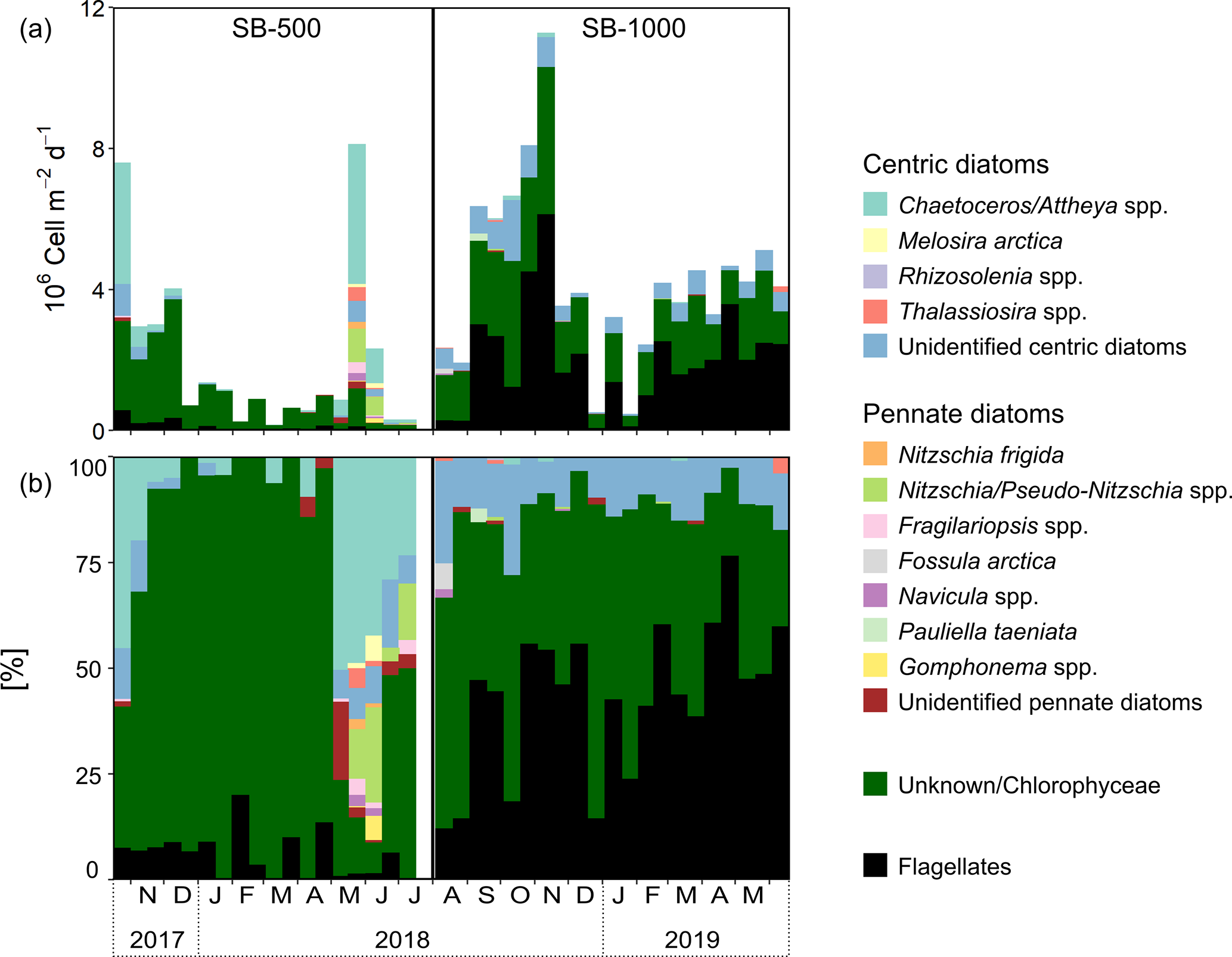

Figure 3 (a) Fluxes of diatoms, Chlorophyceae (listed as “unknown” in the 2017–2018 cycle), and flagellates. (b) The percent contribution of diatoms, Chlorophyceae, and flagellates in sinking particles collected in SB-500 and SB-1000 sediment traps.

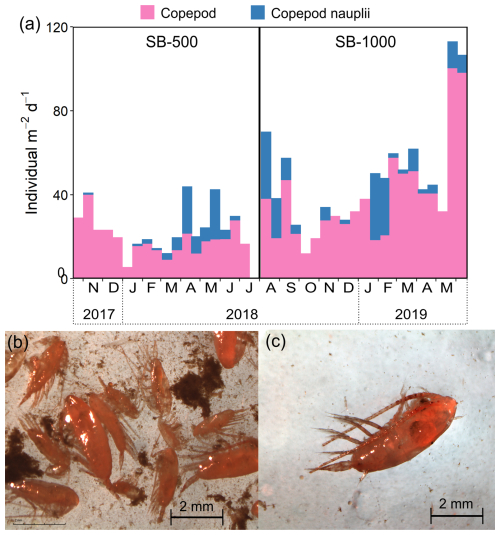

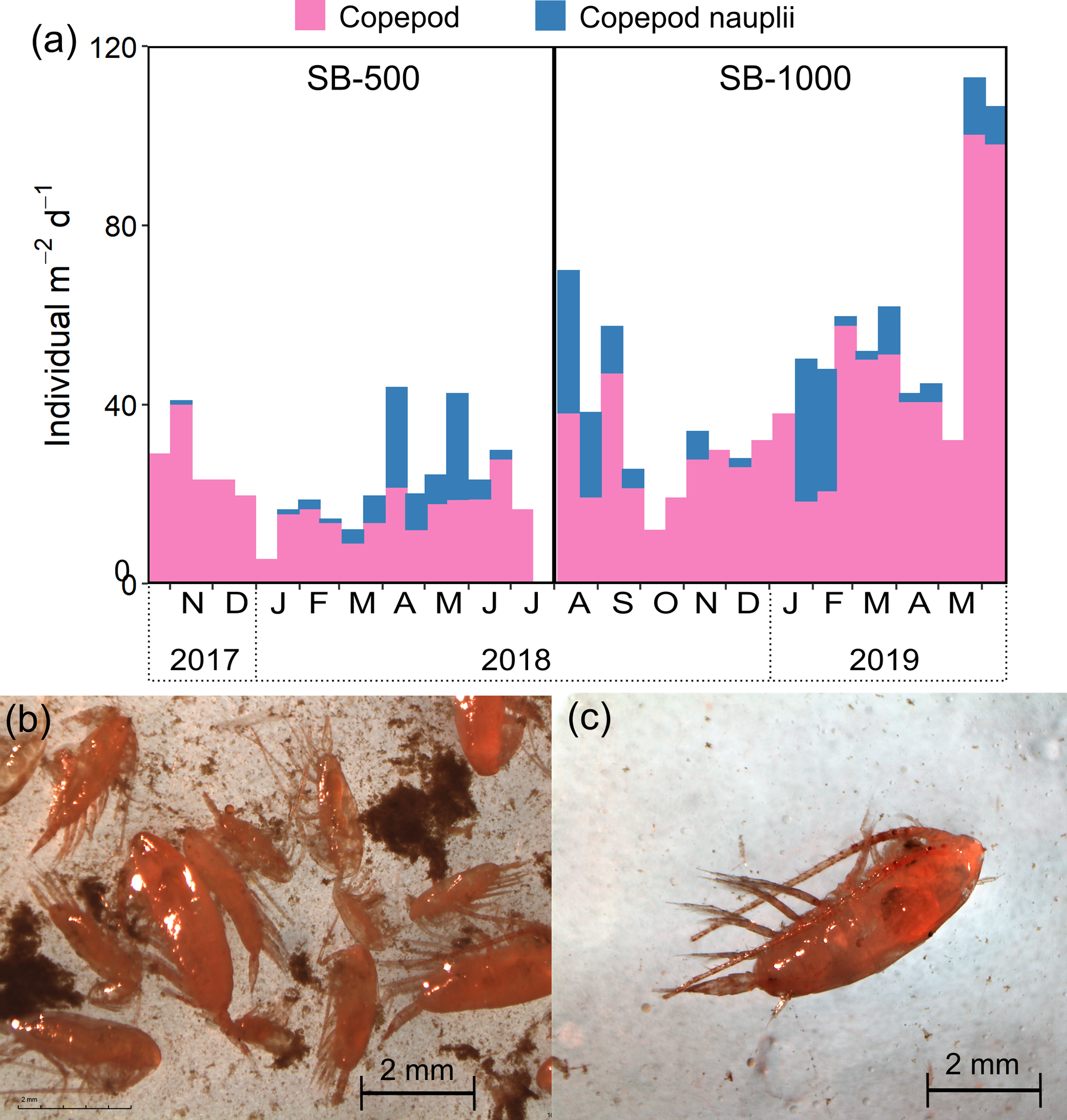

Figure 4 (a) Stacked fluxes of copepods and copepod nauplii in sinking particles collected in the SB-500 and SB-1000 sediment traps and example images of zooplankton collected in the northwestern Labrador Sea in 2021. (b) A mixture of copepods and detritus aggregates in the MultiNet samples. (c) An example of an individual copepod subsampled for CSIA-AA analyses.

Copepods and copepod nauplii dominated the zooplankton community for most of both deployment periods, except when the empty shells of pteropod Limacina spp. were dominant in late November 2017 and in September 2018 (data not shown). Peaks in copepod abundances were observed in early November 2017 and in early April and late May 2018 at SB-500, while peaks were noted in early August 2018 and in late March and late May 2019 at SB-1000 (Fig. 4a). In July 2021, large copepods, e.g., Calanus spp., dominated the zooplankton community collected near the sediment trap site (Fig. 4b and c).

3.4 Amino acid compositional variability

THAA yields of the SB-500 and SB-1000 traps averaged 97.8 ± 46.0 and 65.8 ± 39.5 µmol g⁻¹, respectively (Table 2). In SB-500, THAA-C % and THAA-N% averaged 14.3 ± 3.6 % and 38.3 ± 8.7 %, respectively (Table 2). THAA-C % and THAA-N% of SB-1000 averaged 9.2 ± 4.7 % and 24.9 ± 15.9 %, respectively (Table 2). The DI of the SB-500 and SB-1000 traps averaged −0.8 ± 0.3 and −0.3 ± 1.0, respectively (Table 2). No significant differences were found in THAA yields, THAA-C %, THAA-N%, or the DI between SB-500 and SB-1000.

Table 2 Total particulate matter (TPM) and particulate organic carbon (POC) daily fluxes and the bulk and amino acid stable isotopes of sinking particles collected from October 2017 to July 2019 in the northwestern Labrador Sea.

^∗ CSIA-AA values were combined for adjacent sampling periods (cups). NA: not available.

3.5 Temporal changes in bulk and amino acid δ¹³C and δ¹⁵N

Bulk δ¹³C values of the SB-500 and SB-1000 traps were similar, varying from −25.8 ‰ to −23.8 ‰ and from −26.6 ‰ to −24.5 ‰, respectively (Fig. 2d). The average δ¹³C-EAA values of the sinking particles were more variable than the bulk δ¹³C values, fluctuating from −26.0 ‰ to −22.3 ‰ with no significant difference (Fig. 2d). Bulk δ¹⁵N values of the SB-500 and SB-1000 traps ranged from 5.6 ‰ to 9.3 ‰ and from 4.5 ‰ to 8.6 ‰, respectively (Fig. 2e). The δ¹⁵N-Phe values, which are commonly used to indicate the N source δ¹⁵N value, averaged 6.6 ± 0.7 ‰ and 6.8 ± 0.6 ‰ for the SB-500 and SB-1000 traps, respectively, with both minima occurring in May shortly after the surface water chlorophyll peaks (Fig. 2e). The δ¹⁵N-TrAA values in both sediment traps were ∼ 8.0 ‰ more elevated than the δ¹⁵N-Phe values on average, varying from 11.5 ‰ to 17.2 ‰ (Fig. 2e). The δ¹⁵N of total hydrolyzable AAs (THAA) averaged 10.5 ± 1.7 ‰ and 10.7 ± 1.2 ‰ for the SB-500 and SB-1000 traps, respectively, ranging between δ¹⁵N-Phe and δ¹⁵N-TrAA (Fig. 2e).

3.6 Amino acid δ¹³C and δ¹⁵N patterns

To explore potential carbon sources to export production, we compared the normalized δ¹³C-AA patterns with algae collected from melted brash ice and pelagic algae collected from the depth of the deep chlorophyll maximum in the northwestern Labrador Sea and Baffin Bay in 2019 and 2021 (see details in Chen et al., 2022). Sinking particles obtained during both sampling periods and at both depths shared similar δ¹³C-EAA patterns, with δ¹³C values of ∼ −4.3 ‰ for Phe and Val, ∼ 12.5 ‰ for Thr, ∼ 2.9 ‰ for Ile, and ∼ −6.8 ‰ for Leu (Fig. 5a). The δ¹³C-EAA patterns of sinking particles were more similar to those measured previously for sea-ice algae than to those of pelagic algae. Between sinking particles and sea-ice algae, only Leu was significantly different (two-sample t test, p < 0.05; Chen et al., 2022), whereas Phe, Thr, and Leu of sinking particles were significantly different from pelagic algae (< 0.05; Fig. 5a; Chen et al., 2022).

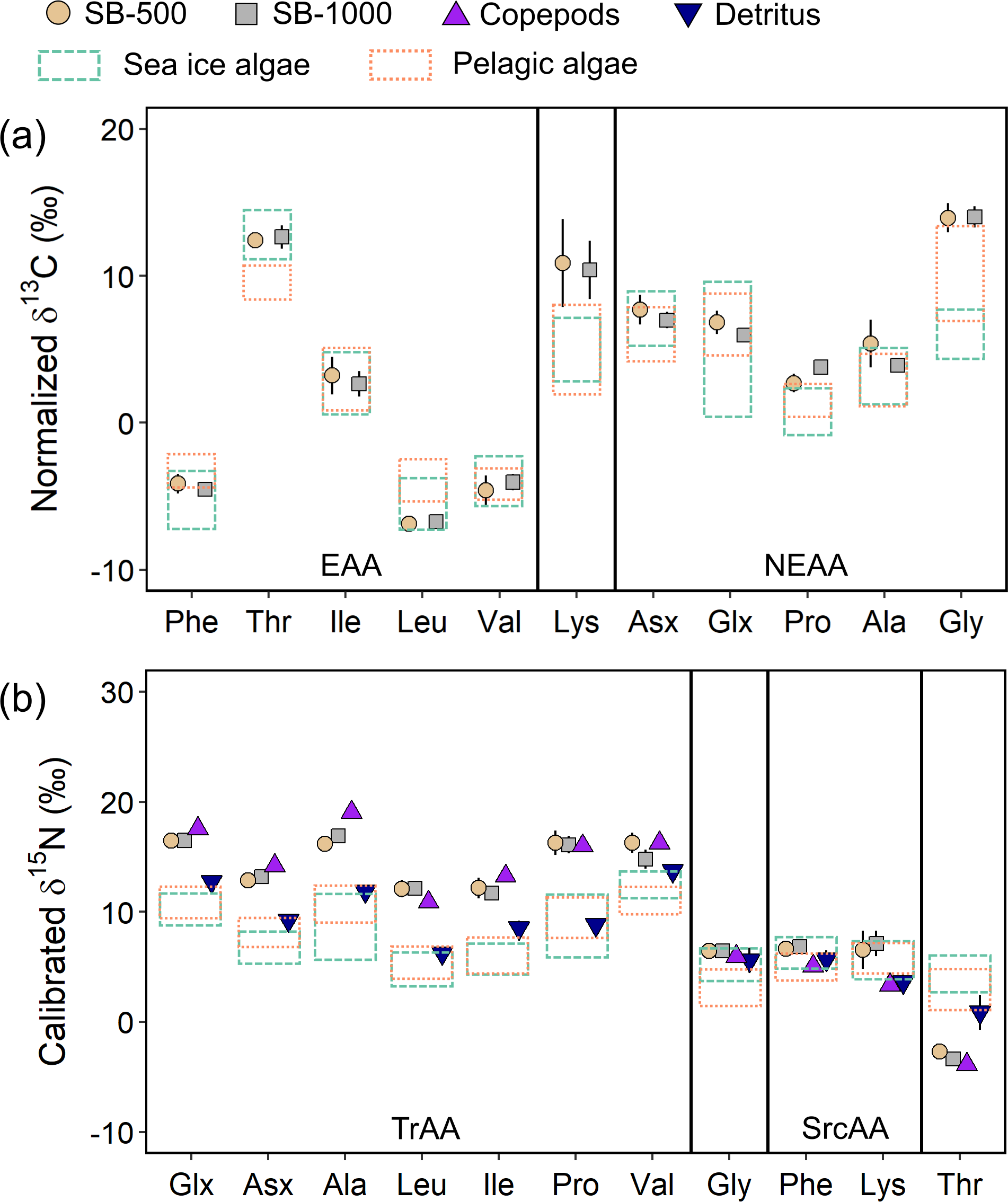

Figure 5 Normalized δ¹³C-AA patterns (a) and calibrated δ¹⁵N-AA patterns (b) of SB-500 and SB-1000 sinking particles, copepods, and detritus collected close to the mooring site. Data are compared with normalized δ¹³C-AA and calibrated δ¹⁵N-AA patterns of > 3 µm and 0.2–3 µm sea-ice and pelagic algae collected from the northwestern Labrador Sea and Baffin Bay, respectively (Chen et al., 2022; dashed and dotted rectangles bracket the data range of sea-ice and pelagic algae, respectively; range: mean ± 1 SD). Error bars show ± 1 standard error for each group (SB-500: n = 4–6; SB-1000: n = 7–11; copepods: n = 3; detritus = 3). The abbreviations used in the figure are as follows: EAA, essential amino acid; NEAA, nonessential amino acid; TrAA, trophic amino acid; and SrcAA, source amino acid. Due to coelution with Tyr, Lys was excluded from the EAA group in subsequent analyses.

Patterns of calibrated δ¹⁵N-AA (Fig. 5b) were broadly similar to those for sinking particles reported in other geographical locations, with more enriched δ¹⁵N-TrAA and more depleted δ¹⁵N-Thr compared to δ¹⁵N-SrcAA (Monterey Bay – Shen et al., 2021; Gulf of Maine – Golombek et al., 2024). No significant differences were found in δ¹⁵N-AA values between SB-500 and SB-1000 particles (two-sample t test, p > 0.05). The δ¹⁵N values of individual TrAAs fluctuated from ∼ 12.0 ‰ to ∼ 17.0 ‰ (Fig. 5b). The δ¹⁵N values of TrAAs and Thr for sinking particles showed significant distinctions from sea-ice and pelagic algae (p < 0.05) and detritus (p < 0.05 except Val). No significant differences were observed in δ¹⁵N-TrAAs between sediment traps and copepods (except Ala). The δ¹⁵N-Phe of sinking particles was comparable with sea-ice algae (p > 0.05) but significantly higher than pelagic algae, copepods, and detritus (p < 0.05; Fig. 5b).

3.7 Source contributions to sinking particles

To evaluate the potential contributions of sea-ice and pelagic algae and heterotrophic bacteria to the sinking particle fluxes, normalized δ¹³C-AA patterns were compared using PCA (Fig. 6a). PCA based on normalized δ¹³C-EAA explained 66.3 % of the total variation, with the first two principal components (PC1 and PC2) accounting for 49.9 % and 21.4 %, respectively (Fig. 6a). The standard ellipses of sinking particles mostly overlapped with each other as well as sea-ice algae, whereas they clustered apart from pelagic algae and heterotrophic bacteria (Fig. 6a). Linear discriminant analysis (LDA) was then employed to classify the sinking particles using the sea-ice and pelagic algae and heterotrophic bacteria as the training dataset. Using this approach, 9 out of the 14 measured sinking particle samples were classified as sea-ice algae with 87 %–100 % probability (Fig. 6b, Table S5), 3 samples were classified as pelagic algae (probability: 62 %–83 %), and 2 were classified as heterotrophic bacteria (75 %–98 %; Table S5).

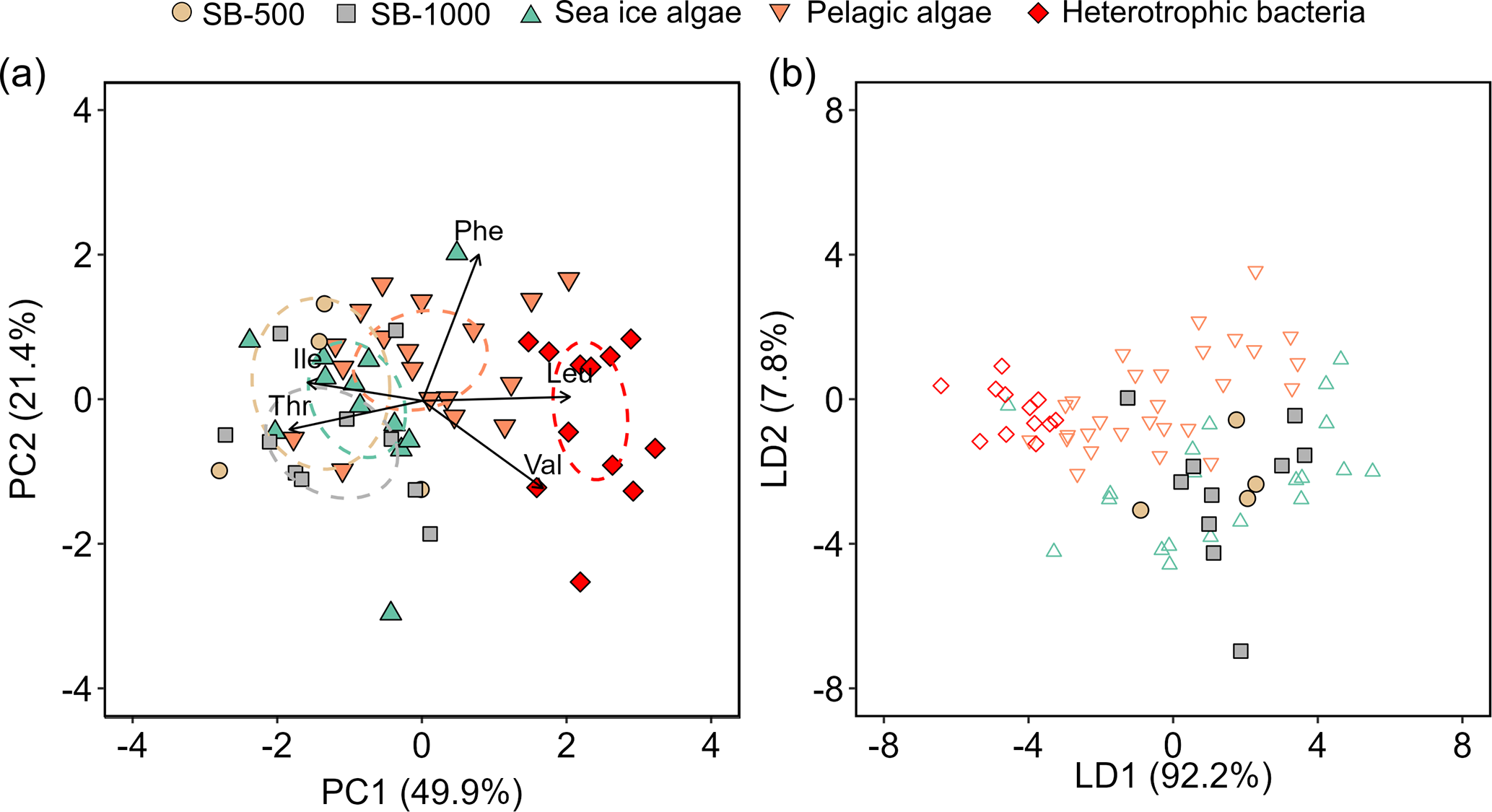

Figure 6 (a) Principal component analysis based on normalized δ¹³C values of five essential amino acids showing sinking particles collected in the SB-500 and SB-1000 sediment traps in relation to sea-ice and pelagic algae from Chen et al. (2022) and heterotrophic bacteria from Larsen et al. (2013). The colored ellipses represent standard ellipse areas for each corresponding group, containing ∼ 40 % of the data. (b) Linear discriminant analysis with the model trained by the sea-ice and pelagic algae and heterotrophic bacteria data in panel (a) to predict the classes of sinking particles in SB-500 and SB-1000. Values in parentheses shown in the axis titles are the percentage variation explained by each axis.

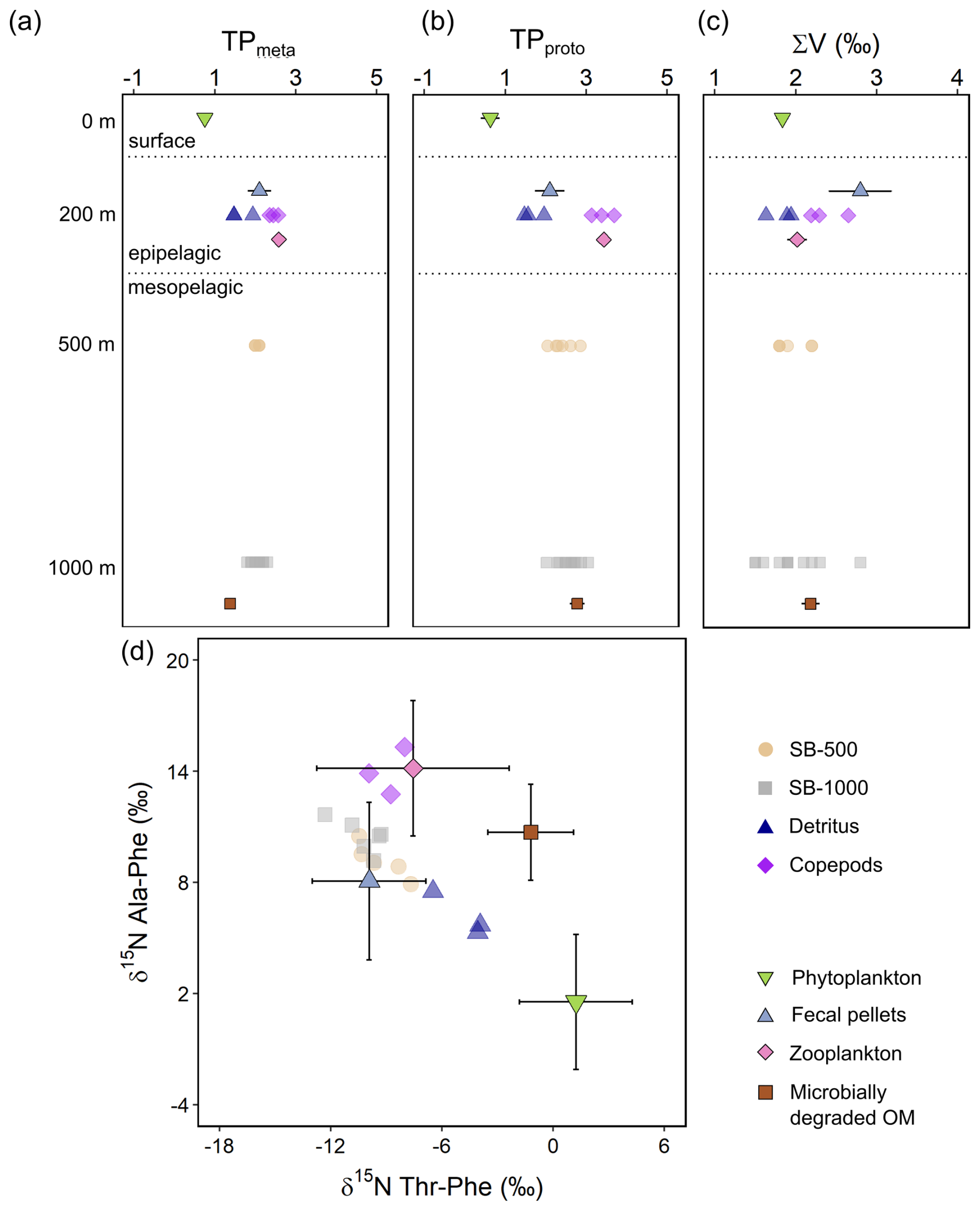

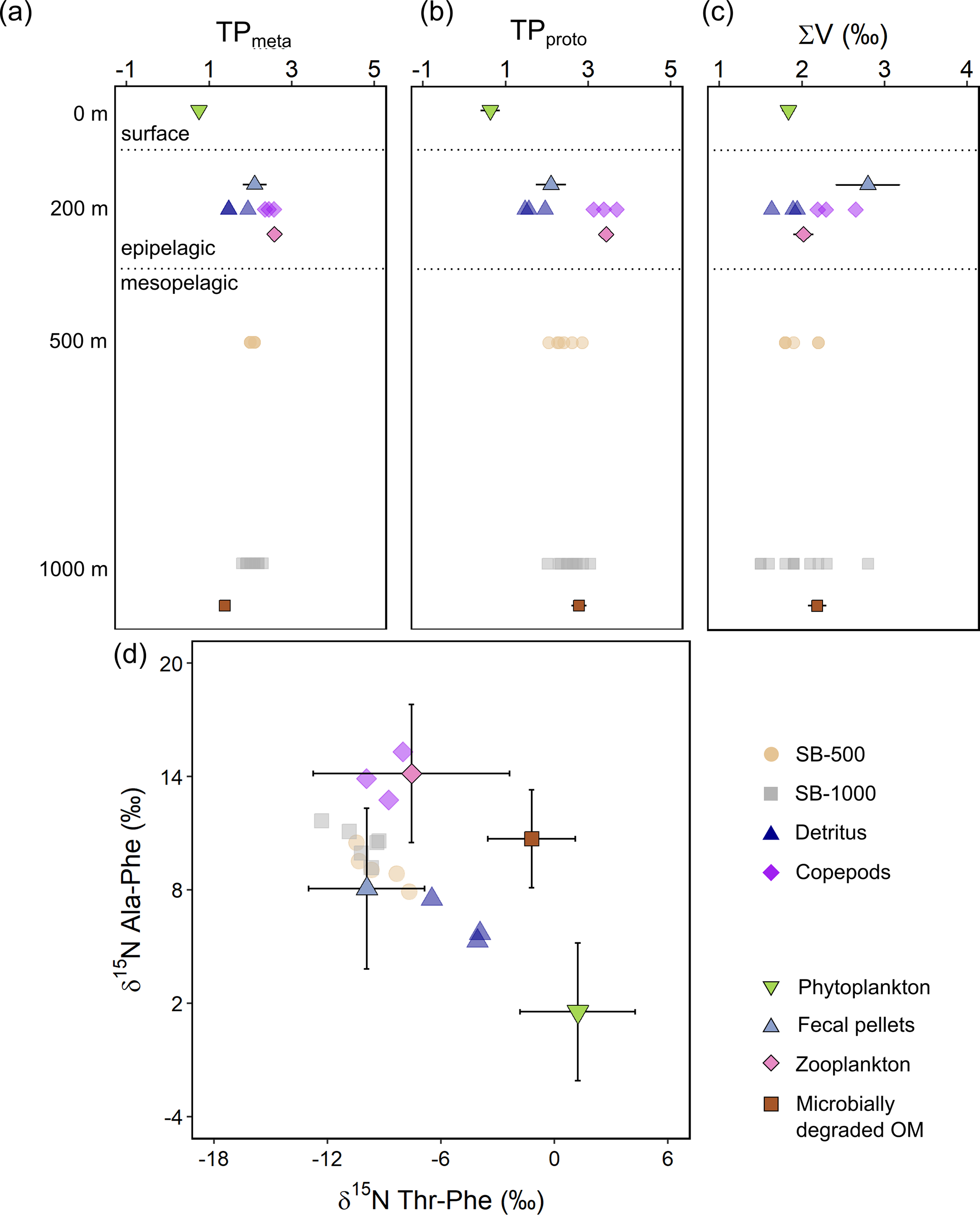

Figure 7 The δ¹⁵N-AA parameters for the trophic positions and microbial resynthesis of sinking particles collected in the SB-500 and SB-1000 sediment traps, detritus, and copepods (semitransparent shapes), compared with means of phytoplankton, fecal pellets, zooplankton, and microbially degraded OM end-members (shapes with error bars) for the (a) “metazoan” trophic position (TP_meta), (b) “protozoan” trophic position (TP_proto), and (c) the ∑V parameter in different water layers. (d) Phe-normalized δ¹⁵N of Ala and Thr. Error bars show ± 1 standard error for panels (a–c) and standard deviations for panel (d). End-member distributions are from previously published literature: McClelland and Montoya (2002), Chikaraishi et al. (2009), Hannides et al. (2009, 2013), Yamaguchi and McCarthy (2018), and Doherty et al. (2021).

The metazoan trophic position (TP_meta) values of both sediment traps averaged 2.0 (Fig. 7a). The protozoan trophic position (TP_proto) values averaged 2.4 and 2.6 for the SB-500 and SB-1000 traps, respectively, and were significantly different from but ranged between detritus (1.7 ± 0.3) and copepods (3.4 ± 0.3; two-sample t test, p < 0.01; Fig. 7b). Values of the ∑V parameter for microbial resynthesis for the SB-500 and SB-1000 sediment traps ranged from 1.8 ‰ to 2.2 ‰ and from 1.5 ‰ to 2.8 ‰, respectively, similar to detritus (1.6 ‰–1.9 ‰; two-sample t test, p > 0.1) and slightly lower than copepods (2.2 ‰–2.7 ‰; p < 0.05; Fig. 7c). No significant offsets were found in the TP_meta, TP_proto, and ∑V values between the SB-500 and SB-1000 sediment traps (p > 0.1).

Phe-normalized δ¹⁵N values of Ala and Thr have been shown to improve the characterization of potential end-member contributors to sinking particles (Doherty et al., 2021; Chen et al., 2022; Wojtal et al., 2023). The Phe-normalized δ¹⁵N-Ala and δ¹⁵N-Thr values were similar between the SB-500 and SB-1000 sediment traps (two-sample t test, p > 0.1), ranging around 10.0 ‰ and −9.5 ‰, respectively and overlapping with literature-derived values for fecal pellets (p > 0.1; Fig. 7d). Measured copepods shared similar δ¹⁵N-Ala and δ¹⁵N-Thr values with literature zooplankton values (p > 0.1). Measured detritus values ranged between literature phytoplankton, fecal pellets, and degraded OM end-members (Fig. 7d).

A three-end-member Bayesian mixing model based on Phe-normalized δ¹⁵N values of Ala and Thr demonstrated a dominant contribution (76 %–96 %) of fecal pellets to sinking particles in both sediment traps (Fig. 8, Table S6). Degraded OM contributed 1 %–3 % and phytoplankton contributed 2 %–17 % to the sinking particles (Fig. 8, Table S6). The phytoplankton contribution peaked during the spring bloom in 2018 (Figs. 2a, 3a, and 8). No significant differences were found in the modeled contributions of phytoplankton, degraded OM, and fecal pellets to the sinking particles between the SB-500 and SB-1000 traps.

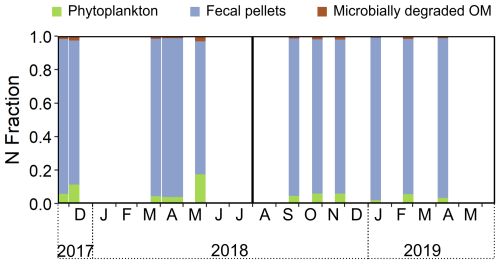

Figure 8 MixSIAR-derived relative contributions of different end-members in sinking particles. The relative N contributions from phytoplankton, fecal pellets, and degraded OM were estimated based on the Phe-normalized δ¹⁵N values of Ala and Thr. End-member source data are from previously published literature: McClelland and Montoya (2002), Chikaraishi et al. (2009), Hannides et al. (2009, 2013), Yamaguchi and McCarthy (2018), and Doherty et al. (2021).

4 Discussion

The benthic habitats of the Saglek Bank area, including the Labrador Shelf slope, are known to support abundant deep-sea corals and sponges, for example, the gorgonian Primnoa resedaeformis and the large sponge Geodia spp. (Wareham and Edinger, 2007; Dinn et al., 2020). These deepwater sessile organisms rely on the deposition of POM from the surface (Sherwood et al., 2005; Sherwood and Edinger, 2009; Dinn et al., 2020). Therefore, an enhanced understanding of the organic carbon and nitrogen sources and trophic and microbial processing in the sinking particles in the Saglek Bank area is critical. In our study, δ¹³C-EAA results revealed the dominance of relatively “fresh” organic matter (i.e., less microbially degraded) and a potentially high baseline contribution of sea-ice algae to sinking particles. The δ¹⁵N-AA data suggested that sinking particles were dominated by fecal pellets. Despite the more limited temporal resolution of the CSIA-AA data owing to sample size limitations, the combined results suggested that sea-ice algae and exported zooplankton fecal pellets can be a critical year-round source of POC and PN for the benthic fauna.

4.1 Contribution of microalgae

Bulk δ¹³C values of sinking particles at the study site (−26.6 ‰ to −23.8 ‰) fell toward the lower end of the typical range of marine particulate organic matter from Arctic/subarctic regions (−19 ‰ to −26 ‰; Schubert and Calvert, 2001; Søreide et al., 2006; Belt et al., 2008). The temporal variability in bulk δ¹³C was relatively small (∼ 2.0 ‰) and was not correlated with the more variable δ¹³C-EAA (∼ 4.0 ‰; r² = 0.004; Fig. 2d). Given the relatively low THAA-C % (< 20 %), the bulk δ¹³C signal in the sinking particles was likely driven by other (non-EAA) carbon-containing compounds (i.e., NEAAs, amino sugars, carbohydrates, lipids, and molecularly uncharacterizable organic compounds) and was, therefore, largely decoupled from δ¹³C-EAA due to biogeochemical and/or metabolic processing during sinking.

In a previous study, δ¹³C-EAA in sinking particles collected in sediment traps deployed at 1200 m depth in Monterey Bay was shown to quantitatively track the bulk δ¹³C of surface primary production (Shen et al., 2021). If this principle applies to sinking particles generally, then the δ¹³C-EAA measured in the Saglek Bank traps would imply that the bulk δ¹³C of surface water primary production ranges from −26.0 ‰ to −22.3 ‰ over an annual cycle. These values bracket a recently modeled estimate of mean annual baseline δ¹³C (−23.5 ‰) at 60° N, 60° W in the Labrador Sea but exceed the modeled annual variability by about 3 ‰ (Espinasse et al., 2022). Given the negligible microbial influence on δ¹³C-EAA values (discussed below), the δ¹³C-EAA results imply a potentially wider variability in primary producer δ¹³C than currently captured in isoscape models of baseline δ¹³C.

Beyond tracking the δ¹³C of primary production, δ¹³C-EAA signatures are potentially even more useful for quantifying the relative contributions of different primary producer functional groups in marine food webs (McCarthy et al., 2013; Larsen et al., 2013; Schiff et al., 2014; Vokhshoori et al., 2014). Sinking particles collected during both cycles demonstrated similar δ¹³C-EAA patterns with sea-ice and pelagic algae collected from the northwestern Labrador Sea and Baffin Bay (Chen et al., 2022; Fig. 5), suggesting that exported organic carbon primarily originated from surface primary production, assuming that sea-ice and pelagic algae are the major autotrophic sources (Irwin, 1990; Gosselin et al., 1997). Sea-ice algae are generally acknowledged to play an important role in primary and export production in the Arctic Ocean, especially in higher latitudes of the Arctic (Hsiao, 1980; Michel et al., 1996; Gosselin et al., 1997; Fernández-Méndez et al., 2014; Fadeev et al., 2021). In our study, a higher similarity was observed between sinking particles and sea-ice algae (two-sample t test, p > 0.1 except Leu), compared to pelagic algae (p < 0.05 for Phe, Thr, and Leu; Fig. 5a). This resemblance was further evidenced by the overlap of sinking particles with sea-ice algae in the PCA (Fig. 6b), suggesting that the carbon in EAAs of the sinking particles may originate largely from sea-ice algae.

The large contribution of sea-ice algae to the sinking particles is operated via two pathways: direct sinking of ice algal biomass and indirect transfers via heterotrophic processing (e.g., zooplankton grazing). Sea-ice algal biomass is generally composed of relatively large cells (> 5 µm; 50 %–100 %) in the Arctic (Gosselin et al., 1997) and, hence, is exported more efficiently to depth, compared to pelagic algae. Sea-ice or under-ice diatoms typically form large aggregates; when detached from ice, the strands sink rapidly, sporadically contributing large amounts of C to the benthic ecosystem (Fernández-Méndez et al., 2014). Fast-sinking ice-associated diatom aggregates contribute to higher export efficiency and enhanced pelagic–benthic coupling, whereas smaller and slow-sinking flagellate-dominated aggregates are largely recycled in the epipelagic waters (Fadeev et al., 2021). At our study site, sea ice was present for ∼ 50 %–60 % of the deployment days in both cycles (Table 1). Both chl-a maxima in early April 2018 and early May 2019 coincided with sea-ice breakups (defined as a sea-ice concentration of < 50 % for more than 5 consecutive days), suggesting a potential release of sea-ice algae to the water column by the ice melt (Fig. 2a; Michel et al., 1993). Following the chl-a maxima, the persistent phytoplankton blooms with a smaller magnitude (< 2 mg m⁻³) during the open-water period could be governed by nutrient limitation (Fig. 2a; Leu et al., 2015). In the Labrador Sea, light, which is largely governed by daylight periods, sea-ice cover, and snow depth, controlling the timing and initiation of under-ice blooms (Mundy et al., 2009, 2014; Leu et al., 2015), is the primary limiting factor to primary production for most of the year, whereas nutrients become co-limiting or limiting in summer/autumn as they become depleted within the mixed layer, especially for nitrate on the Labrador Shelf (Harrison and Li, 2007). Nevertheless, remote sensing of ocean color only accounted for phytoplankton blooms in open water; thus, under-ice algal growth remained “invisible”, and its magnitude was uncertain.

Direct sinking of sea-ice algae was also evidenced by the microalgal taxonomy of our sinking particles. Sea-ice and pelagic algae are often dominated by centric and pennate diatoms with species reported in both habitat types (Hsiao, 1980; Melnikov, 1998; Poulin et al., 2011), for example, Fragilariopsis spp. and Nitzschia/Pseudo-nitzschia spp., which were also observed in our samples (Fig. 3). Microalgal counts revealed a dominance of Chaetoceros/Attheya spp. in the fall diatom fluxes in 2017 and the fluxes in 2018, while unidentified centric diatoms dominated the fall fluxes in 2018 and the spring fluxes in 2019 (Fig. 3b). Although it is difficult to tell what fraction of the observed diatoms originated from sea-ice or pelagic habitats, the observation of the sea-ice-exclusive species Nitzschia frigida and Melosira arctica in the sinking particles of the northwestern Labrador Sea confirmed the co-occurrence of sea-ice algae in exported carbon (Fig. 3; Lalande et al., 2019a). The presence of N. frigida and M. arctica co-occurred with the dominance of Chaetoceros/Attheya spp. in May 2018, shortly after the surface chl-a maximum in April associated with the ice melt, suggesting concurrent pelagic production and sea-ice algal release induced by sea-ice breakup in 2018 (Figs. 2a and 3). Although the direct export of N. frigida and M. arctica accounted for only a small fraction, the magnitude of sea-ice algal export remains unknown, given the fact that many diatom species can be either from sea-ice or pelagic habitats (Fig. 3b). Further, taxonomic analysis provides a visual representation of plankton cells exported through passive sinking but does not account for other organic matter components, such as fecal pellets and detritus. Therefore, the taxonomic counts only represent a portion of exported sea-ice algae, whereas δ¹³C-EAA can trace the other portion that cannot be visually identified (e.g., degraded, assimilated, or excreted).

In terms of indirect carbon export from surface primary producers, flux of fecal pellets from zooplankton grazing is an important but highly variable component, which is governed by variation in sea-ice/pelagic algae and zooplankton biomass and community composition (Turner, 2015). Sea-ice algae were found to have higher nutritional quality compared to phytoplankton, due to their elevated essential fatty-acid content, and thereby may be a better food source for consumers (Park et al., 2002; Arrigo and Thomas, 2004; McMahon et al., 2006; Amiraux et al., 2021). The importance of sea-ice algae as food supply for zooplankton grazers has been reported in Hudson Bay (Runge and Ingram, 1988), Frobisher Bay (Grainger and Hsiao, 1990), the Canadian Arctic Archipelago (Michel et al., 1996), the Barents Sea (Scott et al., 1999, 2001), and northern Baffin Bay (Michel et al., 2002). A more recent biomolecular study also revealed active feeding on sea-ice algae by copepods (Calanus glacialis) under seasonal sea ice long before ice melt and the development of ice-edge blooms in the northern Bering Sea (Durbin and Casas, 2014). Overall, δ¹³C-EAA signatures revealed a dominance of relatively fresh organic matter (i.e., less microbially degraded) and a potentially high baseline contribution of sea-ice algae in sinking particles (via direct or indirect export), which was consistent with previous observations that sea-ice algae could be either exported via fast-sinking aggregates (e.g., in Beaufort Sea, Carey, 1987; in Eurasian Basin, Fernández-Méndez et al., 2014) or ingested by zooplankton and exported as fecal materials (e.g., in Canadian Arctic Archipelago, Michel et al., 1996). The contribution of fecal pellets to our sinking particles was further evidenced by the presence of intact fecal pellets and the independent δ¹⁵N-AA analyses, discussed in the section below.

4.2 Organic nitrogen composition of sinking particles

The δ¹⁵N-THAA values represent the mass-balanced N isotopic signature of all AAs and were 2 ‰–7 ‰ more elevated than bulk signals (Fig. 2e), indicating that other N-containing organic compounds (inorganic clays, nucleic acids, pigments, amino sugars, and uncharacterizable OM; Hedges et al., 2001; Kienast et al., 2005; Batista, 2016; McMahon and McCarthy, 2016) must be isotopically lighter than THAA. These offsets further reinforce the idea that bulk and compound-specific isotope signatures may be decoupled from each other, particularly in detrital materials such as sinking POM (Batista et al., 2014; Golombek et al., 2024).

In addition to microbial degradation (discussed separately in Sect. 4.3 below), variations in δ¹⁵N-AA mainly reflect the baseline δ¹⁵N values of source N and heterotrophic transfers (Ohkouchi et al., 2017). The δ¹⁵N-Phe in sinking particles (6.7 ± 0.6 ‰) was within range of the δ¹⁵N of nitricline nitrate (Sherwood et al., 2021) and sea-ice algae (Fig. 7b) in the study region. This indicates that δ¹⁵N-Phe in the sinking particles preserves baseline δ¹⁵N variability. The δ¹⁵N values of TrAAs, on the other hand, were substantially higher than those of ice or pelagic algae, indicating isotopic enrichment by heterotrophic metabolisms. Based on calculated values of TP_meta (2.0 ± 0.2), metazoan heterotrophy increased the trophic position of sinking particles, over that of fresh phytoplankton, by 1 unit. The slightly higher values of TP_proto (2.5 ± 0.3), indicated an additional 0.5-unit increase in trophic position resulting from protozoan heterotrophy. These results indicate that AAs in sinking POM were not sourced directly from algal detritus but rather cycled through metazoan and protozoan metabolisms.

The distribution of sinking particles in Phe-normalized δ¹⁵N-Ala vs. δ¹⁵N-Thr space helped resolve the relative contribution of end-member source materials (phytoplankton, zooplankton, fecal pellets, and microbially degraded OM) to the sinking particles (Fig. 7d). The theoretical basis for the separation of end-member data by δ¹⁵N-Ala and δ¹⁵N-Thr was outlined in Doherty et al. (2021). Briefly, Thr exhibits “reverse” fractionation (becomes more negative) with metazoan metabolism (McMahon and McCarthy, 2016) and effectively distinguishes animal metabolism (zooplankton and fecal pellets) from microbial metabolism (phytoplankton and microbially degraded OM). Alanine, on the other hand, has a higher sensitivity than the canonical TrAA Glx to protozoan heterotrophy (Gutieìrrez-Rodrıìguez et al., 2014; Deìcima et al., 2017) and, therefore, increases the separation between zooplankton and phytoplankton, particularly if mesozooplankton feed on protozoan microzooplankton (Doherty et al., 2021). Fecal pellets plot between zooplankton and phytoplankton along the δ¹⁵N-Ala axis, presumably because they comprise a mixture of zooplankton biomass, gut microbiota, and undigested phytoplankton (Doherty et al., 2021). Normalization of δ¹⁵N-Ala and δ¹⁵N-Thr to δ¹⁵N-Phe accounts for regional differences in baseline δ¹⁵N, allowing comparison of measured to literature data. As a demonstration of the validity of this approach, the measured copepods plot within the uncertainty envelope of literature zooplankton (Fig. 7d). Similarly, the previously published sea-ice and pelagic algae collected in the study region overlap with literature phytoplankton values (Chen et al., 2022).

Bayesian mixing models based on Phe-normalized δ¹⁵N values of Ala and Thr quantified contributions of source end-members to sinking particles. The zooplankton end-member was not included in the mixing model for the sinking particles because zooplankton individuals were sorted and removed from the sediment trap samples (See Sect. 2.3). Assuming phytoplankton, fecal pellets, and microbially degraded OM are the major N sources to the AA pool in sinking particles, the MixSIAR mixing model suggested a dominant contribution of fecal pellets throughout the 2 years (76 %–96 %; Fig. 8). The contribution of fecal pellets was evidenced by the observation of intact fecal pellet fluxes to the sinking particles in the 2018–2019 cycle (Fig. S2 in the Supplement; note that fecal pellets were not counted for the 2017–2018 cycle). This was consistent with the observations of sustained copepod communities in removed swimmers from sediment traps (Fig. 4a) and highly abundant large-bodied copepods caught in the plankton sampler at the study site (Fig. 4b and c) as well as previous observations of copepod dominance in the subarctic Labrador Sea (Darnis et al., 2022). During phytoplankton blooms, the contribution of direct phytoplankton export was up to 17 % (Fig. 8). Note that fecal pellets used in our mixing model consist of data collected from salp; amphipod; krill; and mixed community samples that involve feeding by herbivores, carnivores, and detritivores (Doherty et al., 2021) and, thus, may lead to a large uncertainty in the end-member; a future, more refined copepod fecal pellet end-member may help improve the accuracy of the model estimation. As a further demonstration of model validity, we also applied a four-end-member mixing model which included zooplankton on our measured copepod and detritus (Table S7). Copepod samples were accurately classified within the “zooplankton” end-member (56 %–87 %), while detritus samples were classified as “phytoplankton” (31 %–55 %) and “fecal pellets” (33 %–54 %). As the detritus aggregates were collected along with the zooplankton from the plankton net (see Sect. 2.3), they were likely contributed by large particles (marine snow) that originate from aggregated phytoplankton (phytodetritus) and fecal matter (Turner, 2015).

4.3 Preservation of AA-specific isotope signals

Sediment traps may be influenced by the lateral transport or resuspension of aged sediment which is more degraded (Rea and Hovan, 1995; Hwang et al., 2010). The sediment traps were deployed at the outer edge of Saglek Bank (Fig. 1), exposed to strong bottom currents and vertical mixing from the Hudson Strait outflow (Fig. 1; Hecker et al., 1980; Harding, 1998; Drinkwater and Harding, 2001; Wareham and Edinger, 2007; Ostiguy, 2022; de Froe et al., 2024). Inputs of these degraded materials have the potential to alter and confound either of the δ¹³C-EAA or δ¹⁵N-AA source attribution approaches described above. However, the influence of resuspended sediments is considered minor, at least to the AA pool, based on multiple lines of evidence. First, the established diagenetic indicator THAA-N% in the sinking particles averaged 38.3 ± 8.7 % in SB-500 and 24.9 ± 15.9 % in SB-1000 (Table 2), which (at times) exceeded the generally accepted lower limit (38 %) for living biomass (Cowie and Hedges, 1992). Second, the range of δ¹⁵N-Phe values argues against any impact of microbial metabolisms (i.e., extracellular hydrolysis; Hannides et al., 2009; Yamaguchi et al., 2017) that would otherwise increase δ¹⁵N-Phe above the regional δ¹⁵N baseline of ∼ 6 ‰–7 ‰ (Sherwood et al., 2021). Third, while the ΣV parameter for total microbial resynthesis appeared to have low diagnostic utility in distinguishing among potential OM sources, the average ΣV across both traps (2.0 ± 0.4) was within the range of fresh zooplankton and fecal pellet biomass (Fig. 7c). Finally, both AA-specific isotopic source attribution approaches explicitly account for bacterial carbon inputs in the case of δ¹³C-EAA (Fig. 6) and microbial resynthesis in the case of δ¹⁵N-AA (Figs. 7d and 8). These two fully independent approaches indicate minimal microbial degradation or alteration of source-specific isotope signatures in the sinking particles throughout both sediment trap deployments, despite significant temporal variations in TPM and POC fluxes. Overall, it appears that AA-specific isotope signatures are well preserved in the sediment traps, despite and independently of the apparent effects of seasonal and depth-related resuspension on bulk geochemistry.

4.4 Exported fecal pellets

The fecal-pellet-like δ¹⁵N-AA signatures in our sinking particles and Bayesian mixing model outputs revealed a potential dominance of fecal pellets to exported POM at the study site (Fig. 7d). Sinking fecal pellets serve as an important source of organic material for benthic communities but are hard to quantify (Pilskaln and Honjo, 1987; Wilson et al., 2013). The collection of recognizable fecal pellets and their proportion in sinking particles largely vary with depth, season, and location and are affected by zooplankton diets and other enhancing/inhibiting mechanisms during sedimentation (Noji, 1991; Hargrave et al., 1994; Wilson et al., 2013). During sedimentation, fecal pellets are likely to be modified and repackaged several times and become unrecognizable as fecal pellets, making visual identification difficult (Noji, 1991). For example, an earlier study estimated a low fecal pellet contribution to POC in a sediment trap collected under permanent ice cover in the Arctic (< 20 %), which was derived from the enumeration of two types of pellets (cylindrical and ellipsoid; Hargrave et al., 1994). Nevertheless, our results agreed with more recent studies that discovered a substantial contribution of fecal pellets from large copepods to vertical export (up to > 60 % of the POC flux) in other polar regions, such as the Fram Strait (Lalande et al., 2011), northern Baffin Bay (Sampei et al., 2004), the Beaufort Sea (Juul-Pedersen et al., 2010), and the Southern Ocean (Dagg et al., 2003; Gleiber et al., 2012; Décima et al., 2023). Recent applications of Bayesian mixing models using Phe-normalized δ¹⁵N values of Ala and Thr have revealed an increasing contribution of fecal pellets to both small and large particles with increasing depth in the North Pacific, indicating fecal pellet production by zooplankton and disaggregation into smaller particles at mesopelagic depths (> 50 % in the mid-mesopelagic zone; Doherty, 2021; Wojtal et al., 2023). A recent model study suggested that sinking fecal pellets accounted for 50 %–90 % of total carbon export for most low-latitude seas (Nowicki et al., 2022). Physical transport of suspended POC by vertical mixing, seasonal mixed-layer detrainment, eddy subduction, and large-scale ocean circulation also play an important role in exporting POC to depth (Omand et al., 2015; Dall'Olmo et al., 2016; Nowicki et al., 2022). For example, based on mixed-layer depth data from Argo floats and satellite estimates of POC, the largest mixed-layer pump can be found in high-latitude regions in the North Atlantic, Southern Ocean, and northwestern Pacific, accounting for, on average, 23 % of estimates of the biological carbon pump (Dall'Olmo et al., 2016). Glider observations complemented by high-resolution modeling revealed that eddy-driven POC flux can contribute up to half of the total POC export during spring blooms in highly productive subpolar oceans, such as the North Atlantic (Omand et al., 2015).

Overall, our findings suggested that sea-ice algae and zooplankton fecal pellets may fuel export productivity to the mesopelagic zone in a seasonally ice-covered region. This has important ecological implications for global warming and declines in sea ice in the Arctic and subarctic oceans (Pabi et al., 2008). Sea-ice declines represent habitat loss and reduced fatty-acid quality for sea-ice-reliant species (Post et al., 2013). This reduction, accompanied by younger and thinner ice, freshening surface water, and less ice-covered area in the Arctic/subarctic, may also induce changes in community structures and phenology of zooplankton and, hence, impact fecal pellet export and food supply to benthic communities (Post et al., 2013; Leu et al., 2015; Turner, 2015). Although primary production and POC fluxes have been predicted to increase in polar oceans as a result of longer ice-free periods, other mechanisms may limit the delivery of POM to benthic ecosystems (Sweetman et al., 2017). First, ocean warming accelerates remineralization and microbial degradation in the water column and, hence, may reduce the effectiveness of POM export to depth (Riebesell et al., 2009; Turner, 2015). Increased stratification caused by surface warming and freshwater input from sea-ice melting limits deepwater ventilation and reduces the nutrient supply to surface waters. The weakened deepwater intrusion may reduce the strength of the mixed-layer pump that acts as an important pathway for POM export in high-latitude seas (Dall'Olmo et al., 2016). Reduced nutrient supply shifts the surface plankton communities from dominance by diatoms and large zooplankton towards those dominated by picoplankton and small zooplankton, thereby reducing the strength of the biological pump and the sedimentation of organic particles to depth (Li et al., 2009; Finkel et al., 2010; Turner, 2015). This may further deprive benthic communities of organic matter supply, which is predicted to impact biodiversity hotspots, such as those inhabited by deep-sea corals and sponges (Levin and Le Bris, 2015; Sweetman et al., 2017). Hence, these habitats are particularly vulnerable to changes in food quality and quantity in the changing Arctic/subarctic oceans.

5 Conclusions

In this study, we applied CSIA-AA proxies on sinking particles time series collected in sediment traps at depths of 469 and 915 m in the northwestern Labrador Sea (∼ 60° N) to explore the sources and composition of organic carbon and nitrogen in sinking organic matter at the Arctic/subarctic boundary. The sinking particles' δ¹³C-EAA patterns indicated that sea-ice algae are an important food source to higher trophic levels and that surface primary production was largely preserved in exported organic matter at the study site. Additionally, δ¹⁵N-AA results independently verified the minor bacterial contribution to sinking particles and revealed dominant animal sources (fecal pellets and zooplankton) to the sinking flux. Overall, these results have significant implications for the use of CSIA-AA in biogeochemical and ecological studies of marine environments. The use of CSIA-AA in sinking particles time series obtained from moored sediment traps provides quantitative estimates of plankton and fecal pellet contributions to carbon export in the ocean, which may help improve the accuracy of flux estimates derived from counting methods and biogeochemical models. Combined with conventional analyses, such as plankton analyses and flux measurements, CSIA-AA may fulfill the promise of precise and high-resolution delineation of marine sinking organic matter in space and time. Climate-related ocean changes may further limit food availability for deepwater benthic assemblages, such as deep-sea corals and sponges (Levin and Le Bris, 2015; Sweetman et al., 2017). We suggest that future work should expand CSIA-AA measurements on sinking particles collected by sediment trap time series globally and establish a multi-proxy data repository for vulnerable ecozones. CSIA-AA end-member data for estimating sinking particle composition should be better constrained, especially for δ¹³C-EAA. Direct measurements of end-member data from the study region will improve the accuracy of source estimation. More accurate quantitative estimates of sinking particle composition and processing are beneficial for future studies to predict the biogeochemical and ecological responses in important deep-sea ecosystems to ongoing changing climate.
