Cold-water coral mounds are effective carbon sinks in the western Mediterranean Sea

Luis Greiffenhagen, Jürgen Titschack, Claudia Wienberg, Haozhuang Wang, and Dierk Hebbeln
Abstract

Cold-water corals (CWCs) build biogenic structures, known as CWC mounds, that can store large amounts of carbon(ate). However, there is a lack of quantification studies on both recent as well as geological timescales, and knowledge is limited to the accumulation of carbonate (i.e. the inorganic carbon fraction), which ignores the organic carbon fraction. This hinders the calculation of total carbon accumulation rates and a wider understanding of the role CWC mounds play in the carbon cycle. Here, we investigated two cores retrieved from CWC mounds in the Alborán Sea, western Mediterranean Sea, comprising a  400 kyr record of carbon accumulation. We calculated the accumulation of both inorganic and organic carbon within the CWC mounds. Further, we analysed the same parameters in two cores from the adjacent seafloor ( 120 kyr record) to compare the mound records with the surrounding sedimentary deposits. Our results show that the CWC mounds studied accumulate up to 15 g C cm−2 kyr−1, of which 6 %–9 % is derived from the organic carbon fraction. Moreover, during mound formation phases, the mounds store up to 14–19 times more carbon than the adjacent seafloor deposits. We suggest that there is a selective enrichment of organic carbon on the mounds, with about an order of magnitude higher organic carbon accumulation rates than on the adjacent seafloor. Consequently, in phases of mound formation, CWC mounds can be effective local sinks of both inorganic and organic carbon on geological timescales.

Share
1 Introduction

Within the carbon cycle, there are two subcycles, the short-term and the long-term carbon cycle (Burdige, 2007; Cartapanis et al., 2018). Within the world's oceans, the bulk of carbon stays in the “active” short-term cycle, while a small fraction is buried in the sediment that gets removed from the active system and transferred to the geological inventory (the long-term carbon cycle; Cartapanis et al., 2018). This fraction is immobilised for millions of years and stored as organic carbon (Corg) or inorganic carbon (Cinorg, i.e. derived from calcium carbonate). Benthic carbonate production through calcification plays a major role in this process (Ridgwell and Zeebe, 2005). As carbonate factories, some calcifying organisms create biogenic structures or extensive carbonate-rich facies over thousands of years (Schlager, 2000, 2003; Reijmer, 2021). Their carbonate accumulation has been quantified (Milliman, 1974, 1993; Smith and Mackenzie, 2016; O'Mara and Dunne, 2019); however, large knowledge gaps and high uncertainties remain (Cartapanis et al., 2018; Michel et al., 2019; Wood et al., 2023), especially for cold-water carbonate factories. In this context, cold-water coral (CWC) reefs in the deep sea may also play a significant role in the marine carbon budget (e.g. Lindberg and Mienert, 2005; Titschack et al., 2015; Hebbeln et al., 2019; Reijmer, 2021). However, due to the particular technological difficulty of exploring CWC reefs (mostly at 200–1200 m water depth), knowledge about their overall role in the marine carbonate budget is still limited. CWCs occur circumglobally, with only a few scleractinian CWCs, i.e. carbonate-framework-forming corals such as Lophelia pertusa (syn. Desmophyllum pertusum) and Madrepora oculata, being capable of building entire CWC reefs (Roberts et al., 2009; Wienberg and Titschack, 2017). With their three-dimensional framework, these CWCs provide the habitat and the foundation for some of the most biodiverse ecosystems of the deep sea (Henry and Roberts, 2007, 2017). The occurrence and proliferation of CWC reefs depend on a certain range of environmental conditions, such as temperature, pH, and oxygenation (e.g. Davies and Guinotte, 2011), combined with a sufficient nutrient supply through bottom currents and primary production (e.g. Portilho-Ramos et al., 2022; Maier et al., 2023).

In millennial-scale cycles of proliferation and extinction (e.g. Dorschel et al., 2005; Roberts et al., 2009; Wienberg and Titschack, 2017), CWC reefs build “CWC mounds”, consisting of successive generations of carbonate-framework-forming corals that grow on top of each other and are stabilised by sediment infill (e.g. de Haas et al., 2009; Titschack et al., 2009; Wang et al., 2021). Individual periods of reef proliferation are herein referred to as “mound formation phases”. The investigation of sediment cores taken from CWC mounds revealed that during mound formation phases, large amounts of carbonate accumulate (e.g. Dorschel et al., 2007b; Titschack et al., 2009). Thereby, one part is derived from the coral carbonate itself, and the other part comes from pelagic and benthic carbonate buried within the sediment that significantly contributes to mound formation (e.g. Titschack et al., 2009). High-resolution 3D-imagery-based core studies provide evidence that CWC mounds are substantial carbonate sinks, when comparing their accumulation rates to the surrounding sedimentary environments (Titschack et al., 2015, 2016). Moreover, the accumulation rates from CWC mounds are in the same range as other regional carbonate factories such as coralline algal beds, tropical warm-water coral reefs, and bryozoan facies (Titschack et al., 2016). Spatially upscaled estimates of carbonate accumulation for an entire mound province suggest significant regional or potentially global importance (Titschack et al., 2009; Hebbeln et al., 2019; Tamborrino et al., 2022).

Due to the limited number of published carbonate accumulation rates (ranging from 0.3 to 2114 g CaCO3 cm−2 kyr−1) for CWC mounds over both time and space (Lindberg and Mienert, 2005; Dorschel et al., 2007b; Titschack et al., 2009, 2015, 2016; Edinger et al., 2025), CWC mounds are still not a part of global carbon(ate) budget calculations – or at least are not well-represented (Titschack et al., 2015; Smith and Mackenzie, 2016; Wood et al., 2023). Existing high-resolution studies (Titschack et al., 2015, 2016) focus on the most recent mound formation phase. Hence, the detailed variation in carbonate accumulation across multiple mound formation phases remains unknown. Further, all studies so far have focused on the carbonate fraction (i.e. Cinorg) of the carbon accumulation on CWC mounds, and there is no study that combines Cinorg with Corg to get the holistic total mound carbon accumulation.

Here, we investigated  400 000 years of CWC mound formation in the Alborán Sea, western Mediterranean. Covering seven mound formation phases, we quantify the accumulation of Cinorg and Corg from two CWC mounds (based on two coral-bearing sediment cores) and provide the first total carbon accumulation rates. To provide evidence for their local significance in the long-term carbon cycle and as potential sinks of Cinorg and Corg, we further compare these rates with those obtained from the adjacent seafloor (based on coral-barren sediment cores).

2 Regional setting

Within the Mediterranean Sea, the Alborán Sea is a hotspot of primary productivity (Morán and Estrada, 2001; Sánchez-Garrido and Nadal, 2022); CWC mound formation (Lo Iacono et al., 2014; Stalder et al., 2018; Corbera et al., 2019; Hebbeln, 2019; Wang et al., 2019; Wienberg, 2019; Corbera et al., 2021; Wienberg et al., 2022); and, potentially, carbon burial (Masqué et al., 2003). The presence of CWCs in the Alborán Sea is closely linked to the flow path of the Levantine Intermediate Water (LIW) (Hayes et al., 2019). This well-ventilated and nutrient-rich water mass (Álvarez et al., 2023) promotes primary production as well as oxygen and food supply to the CWCs living on the mounds (Wienberg et al., 2022). In addition, the steep density gradient (pycnocline) between the low-salinity LIW and the high-salinity overlying Atlantic Water (Millot, 1999) can be disturbed when it intersects sloping topography, resulting in the formation of high-energy internal waves (e.g. Ercilla et al., 2016) that further enhance the delivery of food particles. In the southern Alborán Sea off the Moroccan margin lies the East Melilla Coral Province (EMCP), which comprises various CWC mounds of very different sizes and morphologies rising from water depths of 210–475 m on the upper continental slope (Fig. 1; Hebbeln, 2019). The CWC mounds of the EMCP developed during multiple mound formation phases from (at least) marine isotope stage (MIS) 11 ( 390 kyr ago) up to the early Holocene. Mound formation phases in the EMCP correspond mainly to interglacial periods but also to one glacial period (MIS 10). While there is no clear link between phases of active CWC mound formation and ice-age-paced climate oscillations, there seems to be a strong coupling with changes in the African hydroclimate (see Wienberg et al., 2022, for a detailed description).

https://bg.copernicus.org/articles/22/2201/2025/bg-22-2201-2025-f01

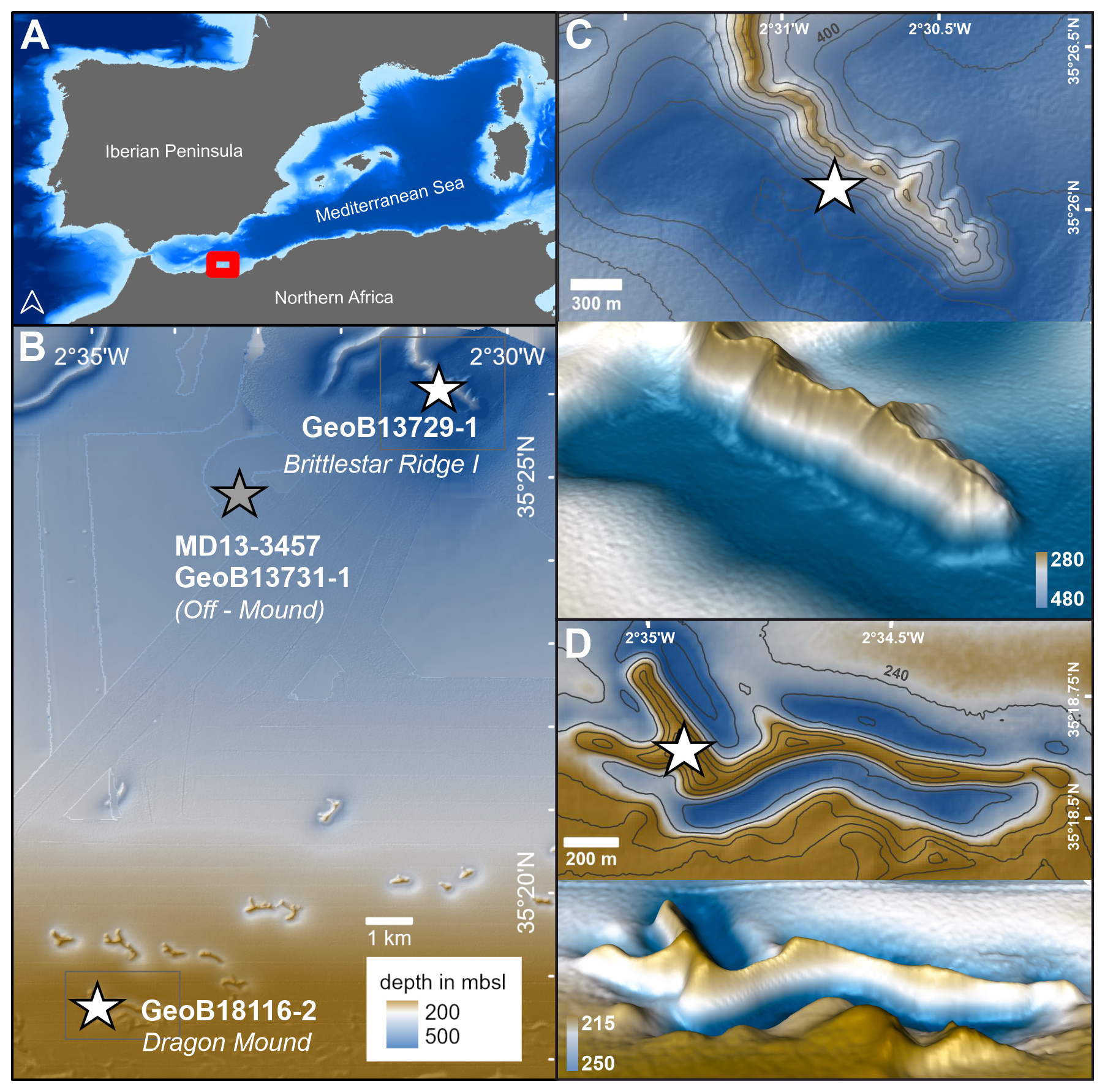

Figure 1(a) The study area (red box) located within the western Mediterranean Sea. (b) The East Melilla Coral Province (EMCP, red box in a) showing the location of sediment cores (stars, white represents mound cores, and grey represents off-mound cores) used in this study. (c) Close up view of Brittlestar Ridge I, with 2D (contour lines every 25 m of depth) and 3D views ( vertical exaggeration). (d) Close up view of Dragon Mound, with 2D (contour lines every 5 m of depth) and 3D views (7.5× vertical exaggeration). Maps created using ESRI ArcGIS Pro and ZIB Amira software. Bathymetry data derived from the GEBCO Bathymetric Compilation Group (2024, in a) and partly supplemented by EMODnet Bathymetry Consortium (2022, in b). A detailed bathymetry of the EMCP is available at https://doi.org/10.1594/PANGAEA.895349 (Hebbeln and Gaide, 2018).

3 Material and methods

This study focuses on four sediment cores collected from the EMCP in the Alborán Sea (Table 1). Two cores are taken from the CWC mounds Brittlestar Ridge I (BRI) and Dragon Mound (the on-mound cores GeoB18116-2 and GeoB13729-1) and two from the same location in the “off-mound” area between the mounds (the off-mound cores MD13-3457 and GeoB13731-1; Fig. 1). Brittlestar Ridge I, located in the northern part of the EMCP, is an elongated, ridge-shaped CWC mound with a height of 140 m above the seabed, while the much smaller and shallower Dragon Mound situated  15 km to the south of BRI rises 20–30 m above the seafloor (Fig. 1), with a 30–40 m extension below the seafloor.

The on-mound core GeoB18116-2 was taken during the R/V Maria S. Merian cruise MSM36 “MoccoMeBo” (Hebbeln et al., 2015) using the seafloor drill rig MeBo70 from MARUM, University of Bremen, Germany (Freudenthal and Wefer, 2013). The  70 m long MeBo core was retrieved from the summit of Dragon Mound in the southern part of the EMCP (Fig. 1, Table 1; Wienberg et al., 2022, for more details). MeBo drill cores are recovered in core barrels (235 cm each), which may lack sediment material (i.e. gaps in the sedimentary units) due to drilling operations or may have recoveries >100 % due to core expansion (this needs to be corrected for using specific depth models; see Sect. 3.2). Overall, GeoB18116-2 has a recovery rate of 96 % and contains coral fragments down to a core depth of  60–61 m (encompassing 26 core barrels), while below, only fine-grained coral-barren sediments occur (Wienberg et al., 2022). Completely penetrating a large CWC mound from the top to its base, GeoB18116-2 is a unique record in the Mediterranean Sea. Its corresponding stratigraphy covers an approximate time span between  100 and 390 kyr BP and includes several mound formation phases ( MIS5–MIS11; Wienberg et al., 2022).

The on-mound core GeoB13729-1 was collected from BRI during the R/V Poseidon cruise POS385 (Fig. 1; Hebbeln et al., 2009). The gravity core is 4.47 m long and contains coral fragments throughout, and its stratigraphy refers to a time span between 9 and 12 kyr BP (late Younger Dryas and early Holocene; Fink et al., 2013; Wang et al., 2021). For this core, we used previously published data (Table 1) based on five accelerator mass spectrometry (AMS) radiocarbon (14C) coral ages, which were originally published by Fink et al. (2013), and 10 additional Th/U dates published by Wang et al. (2021).

The off-mound core GeoB13731-1 was collected from the adjacent seafloor within the EMCP on the continental slope in between the two on-mound cores (10 and 4 km distance, Fig. 1) during the R/V Poseidon cruise POS385. The gravity core is 4.31 m long and covers the last 23 kyr (Fink et al., 2013; Wang et al., 2021), including the mound formation phase covered by on-mound core GeoB13729-1, thus making it suitable for comparison. For this core, we use previously published data from Fink et al. (2013; seven AMS 14C ages; Table 1). From the same site, the off-mound core MD13-3457 was collected using a Calypso piston corer on board R/V Marion Dufresne during expedition MD194 (Van Rooij et al., 2013). With a core recovery of 20.31 m, it provides a stratigraphically longer record and was therefore dated and included in the analysis to extend our comparison between on- and off-mound records towards MIS5, i.e. the latest mound formation phase covered by on-mound core GeoB18116-2.

Table 1Metadata of sediment cores used for this study, including coordinates, water depth in metres below sea level (m b.s.l.), and core recovery in metres below sea floor (m b.s.f.). The time period covered by the cores and a description of the origin of all data (CT is computed tomography; TIC/TOC indicate total inorganic and organic carbon) are provided. References are as follows: 1 – Wienberg et al. (2022), 2 – Fink et al. (2013), 3 – Wang et al. (2021), and 4 – Titschack et al. (2016).

Download Print Version | Download XLSX

While the raw data measurements in this study were performed on the Dragon Mound core (GeoB18116-2) and the long off-mound core (MD13-3457), (raw) data from BRI (GeoB13729-1) and the shorter off-mound core (GeoB13731-1) have previously been published. The latter data have been obtained using the same protocols and were eventually processed for the specific purpose of this study. The detailed origin of all raw data is outlined for each methodological step and in Table 1.

3.1 Computed tomography of on-mound cores GeoB18116-2 and GeoB13729-1

Computed tomography (CT) scans were performed on on-mound core GeoB13729-1 (previously published in Titschack et al., 2016) and the coral-bearing part of the MeBo core GeoB18116-2 (the upper  60–61 m, this study). The coral-bearing core sections of GeoB18116-2 were frozen at  20 °C and split length-wise with a stone saw into a “work” half for sediment sampling and an “archive” half (undisturbed) for CT scanning. The MeBo core was scanned at a resolution of 0.3 mm using a Philips Brilliance iCT Elite 256 computer tomograph with an X-ray source voltage of 120 kV and a current of 300 mA (Klinikum Bremen-Mitte, Germany). CT data were processed using the ZIB edition of Amira software, version 2022.31 (Stalling et al., 2005), closely following the approach of Titschack et al. (2015, 2016). Accordingly, the segmentation of the macrofossil fraction and the sediment was based on thresholding followed by watershedding, and all macrofossils >1 mm within the sediment were quantified. The parameters given for each core depth at an 0.3 mm interval include the mean X-ray attenuation in Hounsfield units (HU) and sediment and macrofossil contents in volume percent (vol %). Since the macrofossil content consists predominantly of corals, their fraction is referred to as the “coral content” in the following (sensu Titschack et al., 2016). The data points corresponding to the outlined parameters were averaged to a 5 cm resolution using a running average function. In the specific case of the MeBo core GeoB18116-2, each core barrel (n=26; each is  235 cm in length, including a core catcher) was treated individually. CT orthoslice images, 3D clast quantification, clast size, clast orientation and coral content, and mean X-ray attenuation and its standard deviation (SD) are presented for each core barrel, along with its corresponding depth, in the Supplement.

3.2 Depth model of MeBo core GeoB18116-2 (Dragon Mound)

For the purpose of this study, a new depth model was introduced that compensates for core expansion (>100 % recovery) in MeBo core GeoB18116-2, calculated according to the International Ocean Discovery Program (IODP) core depth below sea floor B (CSF-B; IODP depth scales terminology standards; IODP, 2011). This new depth model results in some minor depth differences compared to the depth model of Wienberg et al. (2022), which was calculated according to the IODP core depth below sea floor A (CSF-A) standard, and results in some minor differences in the calculated mound aggradation rates (ARs). While CSF-A refers to the drill top depth of the barrel and adds the length of core recovery (allowing core overlap by core recoveries exceeding 100 %), this study refers to CSF-B, which uses linear interpolation to recalculate, i.e. compress, the core recovery length to the core barrel length when it exceeds 100 % recovery (correcting for core overlaps). This is necessary to assign more accurate depths to the data points obtained from the CT scan. Gaps in the sediment record (void air spaces) were also subtracted from the record and not counted as depth (CSF-B). In addition, several section tops showed an unusually high coral content for the first ∼5 cm. This is an effect specific to MeBo drilling, where core barrels are retrieved separately from the drill hole. As this may cause core breccia, i.e. coral fragments, to fall into the drill hole in between drilling sections, the corresponding data are considered inaccurate and were subsequently removed from the depth record and assigned to “no data”. The depth models are made available in the PANGAEA open-data repository. In the following, all core depths for GeoB18116-2 refer to the CSF-B depth model.

3.3 Age models

For core GeoB18116-2 (Dragon Mound), all coral ages (n=76) and the mound formation phases and mound ARs derived are based on Th/U dating of the scleractinian CWC Lophelia pertusa and were previously published by Wienberg et al. (2022). Coral ages range from 390 to 103 kyr BP and were assigned to six mound formation phases (DM1 to DM6, for each phase an average AR is provided); see Wienberg et al. (2022) for more detail. The mound formation phases are separated by hiatuses, i.e. periods without any CWC mound formation, which span remarkably long time periods of 10–90 kyr (Wienberg et al., 2022). Notably, several coral ages between  20 and 27 m in core depth are scattered across a large time span covering MIS7d – MIS9, which results in low ARs of <15 cm kyr−1. Accordingly, this low-aggradation period (DM4) was classified as a period of slow mound formation, i.e. scarce reef growth, following Frank et al. (2009). Due to the CT-based high-resolution imagery and based on sudden changes in coral content, coral fragment orientation, and matrix sediment density (see Supplement), the exact positions of mound formation phase boundaries were newly determined for this study, resulting in slightly adapted boundary depths and ARs compared to Wienberg et al. (2022). The depth of the mound base is slightly deeper than the deepest coral age obtained; consequently, the AR for DM1 during MIS11 is likely underestimated.

The age model of on-mound core GeoB13729-1 (Brittlestar Ridge I) is provided by Wang et al. (2021) and is partly based on coral ages from Fink et al. (2013, Table 1). The record documents one mound formation phase between 9 and 12 kyr BP, which is the last of several mound formation phases on BRI (Fentimen et al., 2020; Wienberg et al., 2022; Fentimen et al., 2022). This phase will hereafter be referred to as “BRIfinal”. Notably, BRIfinal has also been documented in several other cores collected from BRI (Fink et al., 2013; Stalder et al., 2018; Fentimen et al., 2020; Fentimen et al., 2022; Wienberg et al., 2022; Fentimen et al., 2023; Korpanty et al., 2023), showing that BRIfinal started earlier than documented in core GeoB13729-1. However, Wienberg et al. (2022), who investigated the entire phase covering coral ages from 15 to 8 kyr BP, found overall ARs of 130–140 cm kyr−1, which match well with the AR for BRIfinal used in this study (135 cm kyr−1; Wang et al., 2021), supporting the use of GeoB13729-1 for our purposes despite it not covering the entire mound formation phase.

The age model of off-mound core MD13-3457 was created for this study and is based on eight AMS 14C ages obtained from mixed-planktonic foraminifera. Measurements were performed on >15 mg of planktonic foraminifera >150µm at the Poznan Radiocarbon Laboratory, Poland. Additionally, the stable oxygen isotope (δ18O) composition of the epi-benthic foraminifera Cibicidoides mundulus was analysed for  10 specimens in the same size fraction at a 5 cm core resolution to extend the age model of core MD13-3457. Measurements were performed using a Finnigan MAT 252 gas isotope ratio mass spectrometer connected to a Kiel II automated carbonate preparation device at the MARUM, University of Bremen, Germany. For oxygen isotope analysis, a working standard was used (standard deviation =±0.09 ‰ δ18O), calibrated against the NBS 19 standard and reported relative to the Vienna Pee Dee Belemnite standard. The age model of core GeoB13731-1 is based on seven 14C ages previously published by Fink et al. (2013) and Wang et al. (2021) but is revised for this study).

For both off-mound cores, age models were produced with the Undatable software (version 1.31; Lougheed and Obrochta, 2019) in Matlab (R2021b version 7) using 105 Monte Carlo iterations of age uncertainty sampling. AMS 14C ages from both off-mound cores were calibrated using the IntCal20 calibration curve (Reimer et al., 2020) and modelled reservoir ages from Butzin et al. (2017), extracted with Palaeo Data View (PDV) software (Langner and Mulitza, 2019). For core MD13-3457, additional tie points were set in PDV by comparing the global benthic LR04 stack (Lisiecki and Raymo, 2005) with our δ18O record. The age error of the tie points was conservatively set at 4 kyr, since this is the estimated uncertainty of the benthic stack curve of Lisiecki and Raymo (2005) for 1 Myr until present.

Sedimentation rates were calculated using linear interpolation between calibrated ages (and tie points) for both cores (see Supplement for more detail). By working with a consistent methodology for both off-mound cores, we provide the first age model for core MD13-3457 and update the age model of core GeoB13731-1 (see Wang et al., 2021).

3.4 Matrix sediment dry-bulk-density measurements

Sediment samples of 6–10 cm3 were taken from the on-mound core GeoB18116-2 and the off-mound core MD13-3457 to determine dry bulk densities (DBDs). DBD data from on-mound core GeoB13729-1 (n=22) and off-mound core GeoB13731-1 (n=22) were generated by Wang et al. (2021) following the same procedure as outlined below (data available at https://doi.pangaea.de/10.1594/PANGAEA.941018, Wang et al., 2025).

Samples from core GeoB18116-2 were collected at the approximate beginning and end of each mound formation phase (n=18; range: 1.17–1.40 g cm−3). The off-mound core MD13-3457 was sampled for DBD measurements at equal distances of 1 m (n=21; range: 0.88–1.44 g cm−3). The DBD measurements were performed following Ocean Drilling Program (ODP) standards (Blum, 1997). Samples were dried for 24 h at 105 °C, and their weight was measured before and after. Then, dry sediment volumes were determined using a PentaPyc 5200e gas pycnometer (Quantachrome Instruments) in the Geotechnical Laboratory at the MARUM, University of Bremen, Germany. Since GeoB18116-2 was scanned by CT, we then followed an additional approach for this core: as CT X-ray attenuation data have been used as a proxy for DBD in the past (Orsi et al., 1994; Gerland and Villinger, 1995; Orsi and Anderson, 1999; Duchesne et al., 2009) and as we have observed a high linear correlation (R2=0.89; p-val.  0.0001) between DBD and X-ray attenuation data throughout GeoB18116-2 (see Supplement for calibration details), we calculated DBD values from the X-ray attenuation data for core GeoB18116-2. This highly increased the resolution of our sediment density data and may be an alternative, non-invasive, and time-efficient methodology to obtain density data for similar purposes.

3.5 Total organic and inorganic carbon analysis

Sediment samples of 6–10 cm3 were collected from on-mound core GeoB18116-2 and off-mound core MD13-3457 to measure the total organic carbon (TOC) and total inorganic carbon (TIC) content. TIC/TOC data from cores GeoB13729-1 (n=44) and GeoB13731-1 (n=43) were obtained by Wang et al. (2021) at 10 and 5 cm resolutions, respectively, following the same procedure as outlined below (data available at https://doi.pangaea.de/10.1594/PANGAEA.941018).

Samples from the on-mound core GeoB18116-2 (n=54) were collected at core levels corresponding to roughly comparable age intervals. Off-mound core MD13-3457 was sampled every 10 cm (n=169) from a core depth of 355 cm downwards to account for the record that is not already covered by the off-mound core GeoB13731-1. Macrofossil fragments of ca. >2 mm were removed from the sample to avoid misrepresentation of the sediment fraction, and then the freeze-dried samples were ground. From each sample, one subsample ( 100 mg) was analysed for total carbon (TC) and one for TOC after it was treated with hydrochloric acid to remove carbonate. Measurements were performed with a LECO CS 744 at the Department of Geosciences, University of Bremen, Germany. Subsequently, the TIC content was calculated as TIC = TC  TOC, all given in weight percent (wt %).

3.6 Methods of calculating carbon(ate) accumulation

We calculated the total carbon accumulation, which consists of three different carbon fractions: (1) the coral inorganic carbon accumulation (coral Cinorg Acc), specific to the on-mound cores; (2) the sediment inorganic carbon accumulation (sediment Cinorg Acc); and (3) the sediment organic carbon accumulation (sediment Corg Acc).

3.6.1 Coral inorganic carbon accumulation

Coral Cinorg Acc (g C cm−2 kyr−1) for core GeoB18116-2 (Dragon Mound, 1138 data points spanning the upper 61.27 m (CSF-B)) and core GeoB13729-1 (43 data points, 0.05–4.25 m) was calculated closely following the methodology outlined in Titschack et al. (2015, 2016). Thus, a coral density of 2.66 g cm−3 (i.e. 100 % carbonate; Dorschel et al., 2007b) was multiplied by the coral content (vol %) from the CT data. Combined with the corresponding mound ARs [cm kyr−1], coral carbonate accumulation [g CaCO3 cm−2 kyr−1] was first determined for each 5 cm average depth point.

(1) Coral C inorg Acc = Coralvol . % × Coral density × AR × 12.01 100.09

Accounting for the molecular weight fraction of carbon within carbonate (i.e. 12 % C in CaCO3, ratio in g mol−1; see Eq. 1), coral carbonate accumulation was then converted to coral Cinorg Acc.

3.6.2 Sediment organic and inorganic carbon accumulation

Sediment Cinorg Acc and sediment Corg Acc (g C cm−2 kyr−1) were determined using the following equation:

(2) Sed . C in org Acc = C in org wt % × Sed . vol . % × Sed . density × AR .

The sediment Corg and Cinorg contents (Sect. 3.5) were multiplied by the CT-derived matrix sediment volume percent (Sect. 3.1; in the case of the coral-bearing on-mound cores since only part of the total volume consists of matrix sediment). Then, each data point was assigned a matrix sediment DBD value (g cm−3 based on linear interpolation or, if available, CT calibration; Sect. 3.4) at the given depth and multiplied. Each of the core depths with Corg and Cinorg values [g cm−3] was then assigned to a corresponding AR and multiplied again. Eventually, this results in a sediment Cinorg and Corg Acc [g C cm−2 kyr−1]; see Eq. (2). This was calculated for both CWC-bearing cores and both off-mound records for comparison. Sediment Cinorg [g cm−3] may also be converted to carbonate using the molecular weight share described above in order to describe the total carbonate accumulation (coral carbonate and sediment carbonate).

3.6.3 Total carbon accumulation

To determine the total carbon accumulation (Eq. 3) for the CWC mounds studied, the CT-based coral Cinorg Acc data points were downscaled to the resolution of the Corg and Cinorg data (i.e. 54 data points for core GeoB18116-2 and 44 data points for core GeoB13729-1 from the TIC/TOC measurements). Then, all data points within a mound formation phase were averaged, and mean, minimum, and maximum values per mound formation phase are provided for total carbon accumulation, coral Cinorg Acc, sediment Cinorg Acc, and sediment Corg Acc. Additionally, we present the same for carbonate accumulation (total carbonate accumulation, i.e. coral carbonate and sediment carbonate accumulation). Ultimately, we obtain the relative contribution (%) of each carbon fraction to the total carbonate and total carbon accumulation.

(3) C total Acc = Coral C inorg Acc + Sed . C inorg Acc + Sed . C org Acc

The total carbon accumulation (g C cm−2 kyr−1) was also obtained for both off-mound cores (sediment Cinorg Acc and sediment Corg Acc). Here, we use weighted-mean values of accumulation rates from the off-mound core corresponding to a specific mound formation phase in the on-mound cores. This facilitates a comparison of mean carbon accumulation between on- and off-mound settings during the same time interval (Table 1). While samples from core GeoB13731-1 (9–12 kyr BP; n=6) were used to compare the carbon accumulation rates with the latest mound formation phase (BRIfinal) (GeoB13729-1; n=43), core MD13-3457 (108–115 kyr BP; n=10) was used to compare with the latest mound formation phase (DM6) preserved in Dragon Mound (GeoB18116-2; n=9). All parameters from the off-mound cores were averaged and compared with regard to that exact time span, rounded up to the kyr scale.

4 Results

4.1 On-mound carbon(ate) accumulation

4.1.1 Dragon Mound record: results from a 61 m long CT scan

A visual inspection of the CT scans revealed that the coral content of core GeoB18116-2 was mainly composed of Lophelia pertusa, with minor contributions of dendrophylliid corals. The average coral content is 14 vol % (5 cm average), with a maximum of 42 vol % (for core sections with high coral content, see Fig. 2a). There are no major coral-barren units and some clearly visible hiatuses (Fig. 2b). The mound base lies at  61.1 m b.s.f. (CSF-B depth; Fig. 2c).

https://bg.copernicus.org/articles/22/2201/2025/bg-22-2201-2025-f02

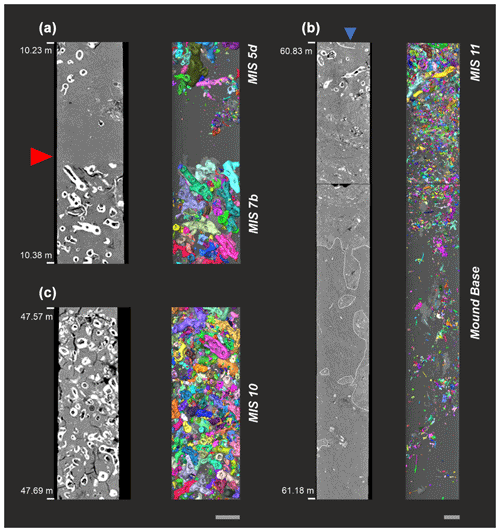

Figure 2CT-image-based core section close-ups of the MeBo on-mound core GeoB18116-2 collected from Dragon Mound (left is the orthoslice; right is the 3D macrofossils' reconstruction: each coral fragment has an individual colour and the core depth is given in CSF-B metres below seafloor). (a) Hiatus covering a time span of  100 kyr between mound formation phases DM5 and DM6. The red arrow indicates the top of DM5 (coral ages  MIS7b), followed by DM6 (coral ages  MIS5d). (b) Example of a high-coral-carbonate-bearing unit during the mound formation phase, DM2 (MIS10,  350 kyr BP). (c) Scan of the mound base (61.1 m b.s.f.), including burrows filled with cold-water coral mound sediments (white outlines), the first cold-water coral clasts, and several oyster shells (blue arrow) from DM1 ( MIS11). Grey scale bars at the bottom represent  2 cm in length.

Download

Based on the CT-derived localisation of mound formation phase boundaries and considering the new core depth model (CSF-B), the newly calculated ARs of the individual mound formation phases deviate slightly from those previously published by Wienberg et al. (2022; see Table 2). The mound initiation phase, DM1 ( MIS11), shows an AR of 22 cm kyr−1, followed by DM2 and DM3 ( MIS9b-d and MIS10), corresponding to an AR of 61 cm kyr−1 each. The slow mound formation phase, DM4 ( MIS7d–MIS9), has an AR of 11 cm kyr−1; during DM5 ( MIS7b), ARs amount to 131 cm kyr−1, and the most recent mound formation phase, DM6 ( MIS5d), has the highest AR, with 147 cm kyr−1 (Fig. 3; Table 2).

For further details on all raw core data results (DBD, TIC/TOC, and CT coral volumes; CT raw data; and the off-mound AMS 14C ages obtained) that fed into the calculation of carbon accumulation rates, please refer to the Supplement and PANGAEA open-data repository.

4.1.2 Carbonate accumulation rates

Total mean on-mound carbonate accumulation rates averaged across each defined mound formation phase from the sediment cores collected from Dragon Mound and BRI lie between 49 and 115 g CaCO3 cm−2 kyr−1 for DM2, DM3, DM5, DM6, and BRIfinal (Fig. 3, Table 2). Exhibiting mean rates of 105–115 g CaCO3 cm−2 kyr−1 (range: 71–167 g CaCO3 cm−2 kyr−1), the youngest “enhanced” mound formation phases (DM5, DM6, and BRIfinal) are all in the same range and are more than twice as high as the rates from the earlier mound formation phases (DM2 and DM3), which show mean rates of 49 and 53 g CaCO3 cm−2 kyr−1 (range: 32–66 g CaCO3 cm−2 kyr−1). The mound initiation phase, DM1, as well as the slow mound formation phase, DM4, show much lower rates, with 16 and 11 g CaCO3 cm−2 kyr−1 (range: 9–19 g CaCO3 cm−2 kyr−1), respectively. Overall, the contribution of the coral carbonate fraction to the total mound carbonate accumulation (Fig. 3, Table 2) varies between 32 %–56 % (DM1 and BRIfinal, respectively) throughout the mound formation phases. Accordingly, the carbonate derived from the sediment matrix (sediment carbonate) contributes 44 %–68 % to the total mound carbonate accumulation.

Table 2All rates of mound aggradation (AR), carbonate accumulation (Acc), and fraction contribution (%) per mound formation phase (Brittlestar Ridge I is BRIfinal; Dragon Mound is DM6–DM1) for coral- and sediment-derived carbonate. The minimum–maximum range is given in brackets. The “age” column indicates the duration of the mound formation phase based on coral ages. The “period” column indicates the approximate corresponding marine isotope stage (MIS). Carbonate-related mean values are given in bold; core locations are in italics.

Download Print Version | Download XLSX

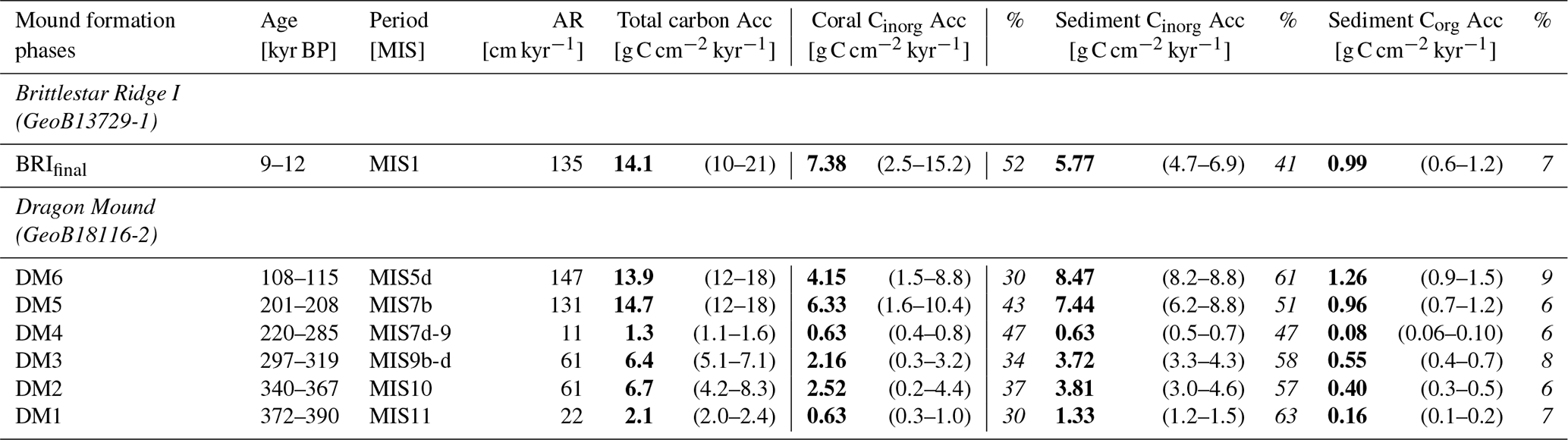

Table 3All rates of mound aggradation (AR), mound carbon accumulation (Acc), and contribution (%) per mound formation phase (Brittlestar Ridge I is BRIfinal; Dragon Mound is DM6–DM1) for coral- and sediment-derived inorganic carbon (coral Cinorg, sediment Cinorg), in addition to the organic carbon fraction from the mound sediment (sediment Corg) relative to the total carbon accumulation. The minimum – maximum range is given in brackets. The “age” column indicates the duration of the mound formation phase based on coral ages. The “period” column indicates the approximate corresponding marine isotope stage (MIS). Carbonate-related mean values are given in bold; core locations are in italics.

Download Print Version | Download XLSX

https://bg.copernicus.org/articles/22/2201/2025/bg-22-2201-2025-f03

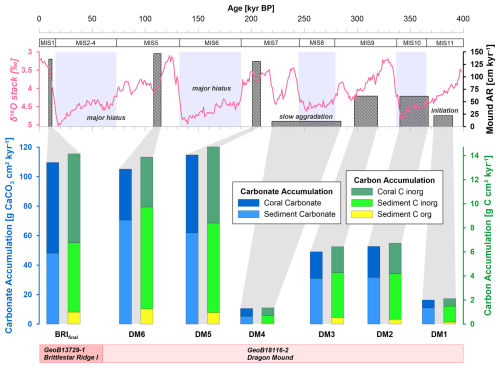

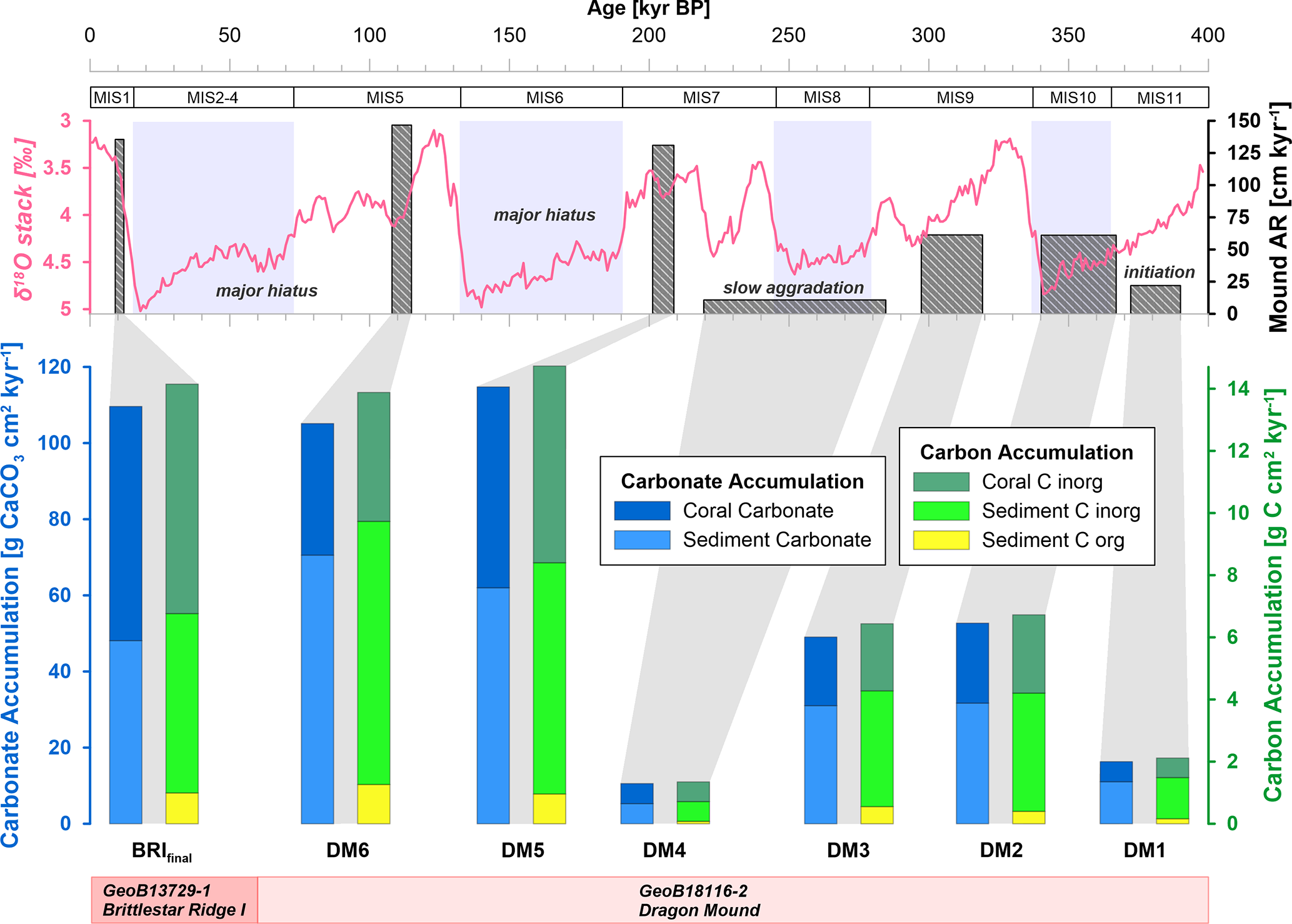

Figure 3Illustration of the carbonate accumulation (blue colours) and carbon accumulation (green–yellow colours) for Dragon Mound and Brittlestar Ridge I (BRI) based on each mound formation phase (Brittlestar Ridge I is BRIfinal; Dragon Mound is DM6–DM1). Mound formation phases (duration to scale) and aggradation rate (AR) are shown in the top graph. The top x axis provides a timescale and corresponding global climate variations according to the benthic δ18O stack (pink curve) by Lisiecki and Raymo (2005), with marine isotope stages (MISs) indicated above. Glacial periods are highlighted by light-blue bars. The bottom graph shows the contribution of each carbon(ate) fraction to the total. Note that the bar width for the lower graph has no timescale, and carbonate and carbon accumulation rates are scaled to different axes (left and right y axes, respectively).

Download

4.1.3 Carbon accumulation rates

Total mean mound carbon accumulation rates averaged across the defined mound formation phases amount to 6–15 g C cm−2 kyr−1 for DM2, DM3, DM5, DM6, and BRIfinal (range: 4–21 g C cm−2 kyr−1; Fig. 3, Table 3). Analogous to the carbonate accumulation, the three most recent mound formation phases show a comparable total carbon accumulation rate of 14–15 g C cm−2 kyr−1 (range: 10–21 g C cm−2 kyr−1), while during DM2 and DM3, accumulation was  50 % lower (mean of 6 and 7 g C cm−2 kyr−1, respectively; range: 4–8 g C cm−2 kyr−1). During the slow mound formation phase (DM4) and the Dragon Mound initiation phase (DM1), only 1.3–2.1 g C cm−2 kyr−1 (range: 1.1–2.4 g C cm−2 kyr−1) accumulated.

The Cinorg Acc accounts for the largest contribution to total carbon accumulation here, with coral Cinorg varying between 30 %–52 % and sedimentary Cinorg between 41 %–63 %. The sedimentary Corg fraction contributes 0.1–1.3 g C cm−2 kyr−1 (range: 0.1–1.5 g C cm−2 kyr−1), which is 6 %–9 % of the total mound accumulation amongst the studied sites. For all carbon fractions individually, DM5, DM6, and BRIfinal exhibit the highest accumulation values, a factor of  2 higher than during DM2 and DM3, which in turn exceed DM1 and DM4 by a factor of  2 (Fig. 3, Table 3).

4.2 Off-mound carbon(ate) accumulation rates

The two combined off-mound cores cover a time span of 0–126 kyr BP. During BRIfinal, the off-mound record GeoB13731-1 accounts for a mean sedimentation rate (SR) of 16 cm kyr−1 and a total mean carbonate accumulation of 7.25 g CaCO3 cm−2 kyr−1 (range: 4.17–9.83 g CaCO3 cm−2 kyr−1; based on data from Wang et al., 2021). The total mean carbon accumulation accounts for 0.99 g C cm−2 kyr−1 (range: 0.56–1.33 g C cm−2 kyr−1), comprising a sediment Corg Acc of 0.11 g C cm−2 kyr−1 (range: 0.05–0.16 g C cm−2 kyr−1) and a sediment Cinorg Acc of 0.87 g C cm−2 kyr−1 (range: 0.50–1.18 g C cm−2 kyr−1; based on data from Wang et al., 2021).

During DM6, the off-mound record MD13-3457 accounts for a mean sedimentation rate of 12 cm kyr−1 and a mean carbonate accumulation rate of 5.50 g CaCO3 cm−2 kyr−1 (range: 3.83–7.25 g CaCO3 cm−2 kyr−1). The total mean carbon accumulation accounts for 0.75 g C cm−2 kyr−1 (range: 0.52–0.98 g C cm−2 kyr−1) comprising sediment Corg Acc of 0.09 g C cm−2 kyr−1 (range: 0.06–0.12 g C cm−2 kyr−1) and sediment Cinorg Acc of 0.66 g C cm−2 kyr−1 (range: 0.46–0.87 g C cm−2 kyr−1).

4.3 On-mound versus off-mound carbon accumulation rates

The comparison of synchronously deposited off-mound (GeoB13731-1 and MD13-3457) and the on-mound core sequences (GeoB13729-1 and GeoB18116-2) for the last two periods of mound formation reveals contrasting carbon contents and accumulation rates (Fig. 4, Table 4).

https://bg.copernicus.org/articles/22/2201/2025/bg-22-2201-2025-f04

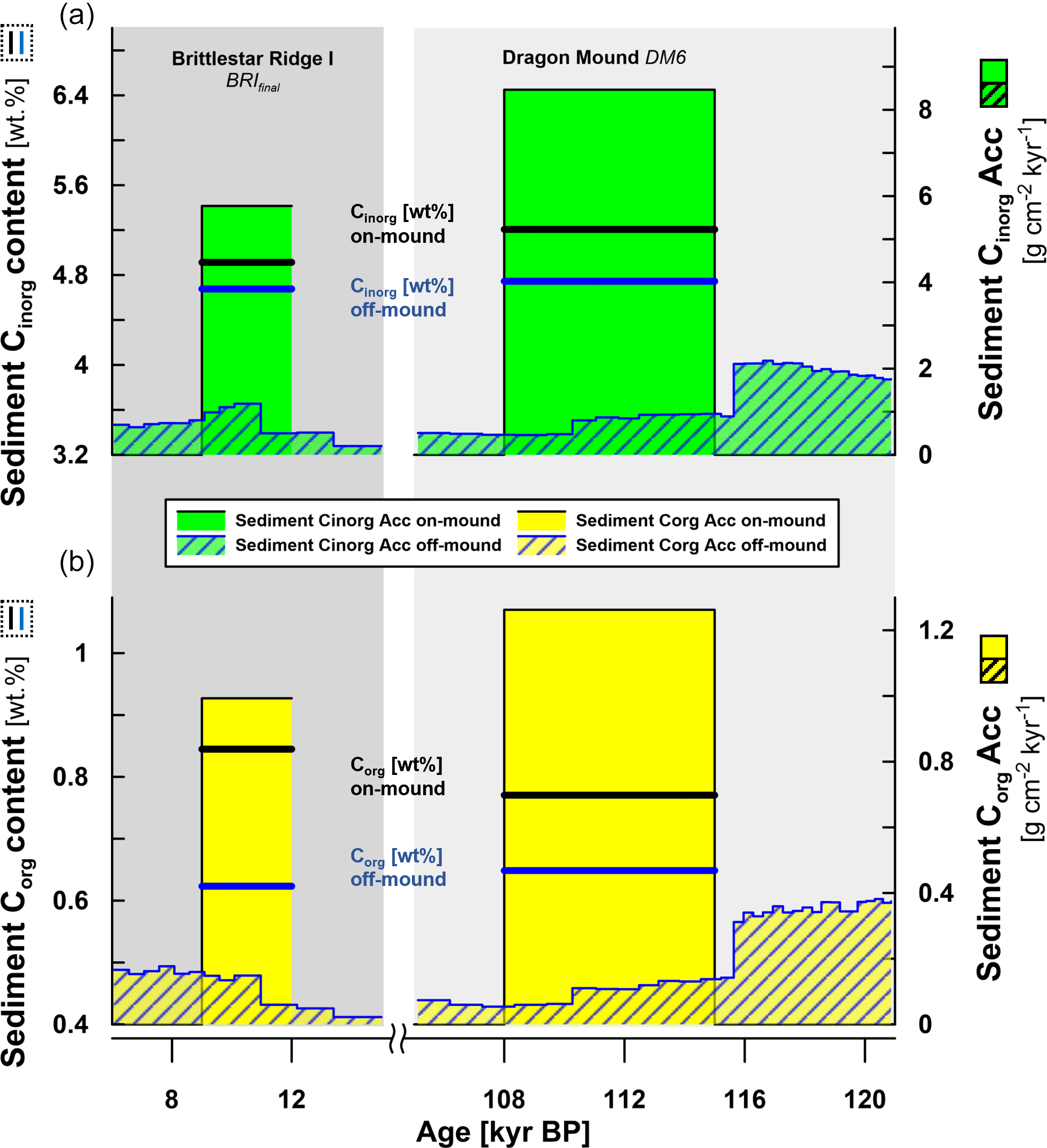

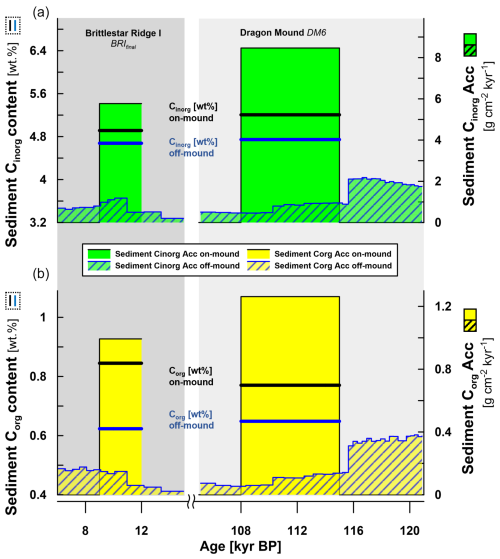

Figure 4Comparison of sediment Cinorg and Corg contents (the bold lines show wt %; left y axes) and accumulation (Acc) rates (the filled bars show g C cm−2 kyr−1; right y axes) between on- and off-mound cores, focusing on two mound formation phases (for the time span, see the x axis), with BRIfinal on Brittlestar Ridge I corresponding to MIS1 (background highlighted in dark grey; GeoB13729-1 and GeoB13731-1) and DM6 on Dragon Mound corresponding to MIS5 (background highlighted in light grey; GeoB18116-2 and MD13-3457). (a) All Cinorg data are shown in the top half (green). (b) All Corg data are shown in the bottom half (yellow). All off-mound data have a blue outline; all on-mound data have a black outline. Carbon accumulation rates are shown as bars; carbon contents are shown as lines. Rates of on-mound records are shown as the mean per mound formation phase. Rates of off-mound records are shown at the TIC/TOC sample resolution, including the trend prior to and after the corresponding mound formation phase. For comparison, the mean Corg and Cinorg contents are displayed too. Note the x-axis break (15–105 kyr BP) between mound formation phases.

Download

During the mound formation phase, BRIfinal, the sediment Corg content (wt %) is about 1.4 times higher on the CWC mound compared to the off-mound record (Fig. 4, Table 4). During the mound formation phase, DM6, the sediment Corg content is about 1.2 times higher on the mound. The mean sediment Cinorg content is just slightly higher on the CWC mounds compared to the off-mound records (a ratio of 1.1 for both periods). Thus, all mean carbon content values (sediment Corg and sediment Cinorg) are higher on the mounds.

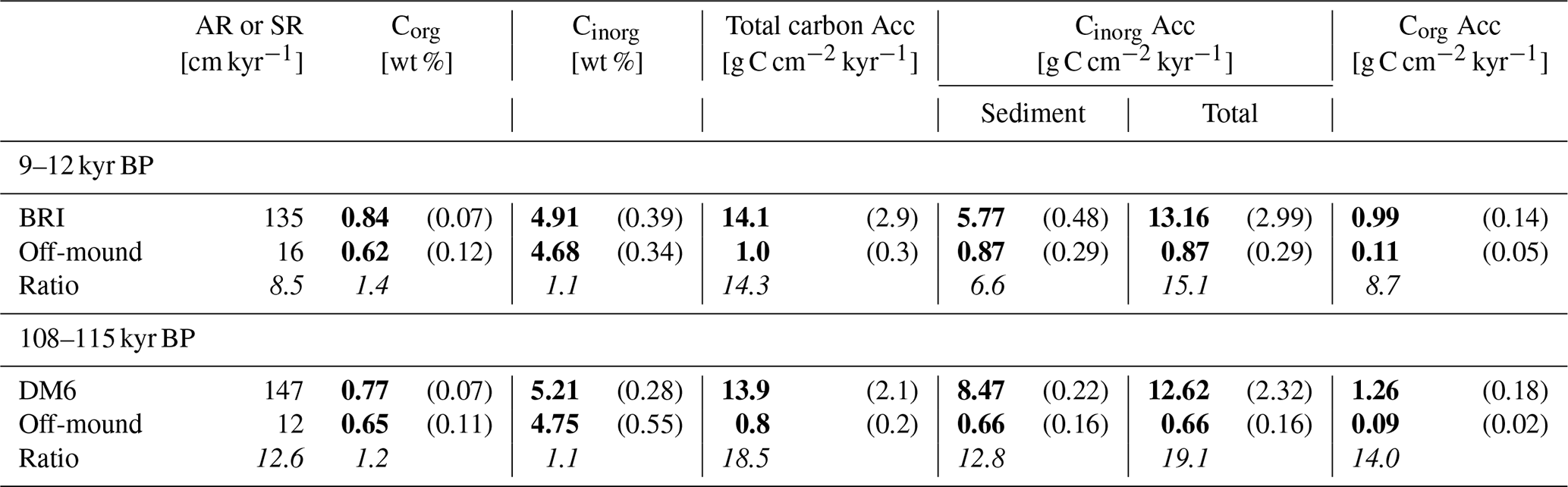

Table 4All core data from the mound formation phases, BRIfinal (documented in core GeoB13729-1, Brittlestar Ridge I (BRI)) and DM6 (documented in core GeoB18116-2, Dragon Mound) compared to the corresponding time interval measured in the off-mound cores GeoB13731-1 and MD13-3457, respectively. Columns show mound aggradation or sedimentation rate (AR or SR), organic carbon content (Corg), inorganic carbon (Cinorg) content, and carbon accumulation (Corg and Cinorg Acc). Total Cinorg Acc is composed of sediment Cinorg and coral Cinorg. The ratio indicates the factor by which the CWC mound exceeds the off-mound record (i.e. on mound : off mound). Available Corg and Cinorg content raw data points per mound formation phase are as follows: 43 (GeoB13729-1), 6 (GeoB13731-1), 9 (GeoB18116-2), and 10 (MD13-3457). The standard deviation is in brackets (±). Carbon-related mean values are given in bold.

Download Print Version | Download XLSX

The difference between on- and off-mound records becomes clearer when comparing the accumulation rates during the same time period (Fig. 4, Table 4). Most importantly, all carbon accumulation rates during BRIfinal and DM6 are around an order of magnitude higher compared to those of the off-mound cores GeoB13731-1 and MD13-3457. During the mound formation phases BRIfinal and DM6, the sediment Corg Acc is 9 and 14 times higher on the CWC mounds than in the off-mound records, respectively. The sediment Cinorg Acc on the mounds exceeds the off-mound records by factors of 7 (BRIfinal) and 13 (DM6).

These factors increase to 15 (BRIfinal) and 19 (DM6) when also accounting for the coral Cinorg Acc in the on-mound records due to the lack of coral macrofossils in the off-mound setting. The total carbon accumulation (coral Cinorg, sediment Cinorg, and sediment Corg Acc) on the mounds is 15 (BRIfinal) and 19 (DM6) times higher (Fig. 4, Table 4) compared to the off-mound environment during the same period, e.g. 9–12 and 108–115 kyr BP.

The data presented in Fig. 4 show contrasting trends for off-mound sediment Corg Acc between the mound formation phases. During and after BRIfinal, off-mound Corg Acc increases, while before and throughout DM6, values decrease. At the same time, Cinorg Acc during BRIfinal first increases in the off-mound record but then shows a sudden drop that continues after mound formation has ceased. During DM6, Cinorg Acc drops to a lower level. Generally, mean Corg and Cinorg contents in the off-mound cores are on the same level irrespective of the mound formation phase. Regarding the on-mound cores, mean Corg content is slightly higher on BRI than on Dragon Mound, while Cinorg content is slightly higher on Dragon Mound. At a glance, all mean carbon content and Acc values are higher for the CWC mounds despite large variations in the off-mound cores.

5 Discussion

CWC mounds have been widely described as major carbonate factories (e.g. Titschack et al., 2009, 2015, 2016; Reijmer, 2021) with elevated carbonate accumulation rates and have been suggested to be potentially important local to regional carbonate sinks. Previous accumulation studies and broader estimates investigating CWC mounds off Norway, Ireland, Morocco, and Namibia and in the Mediterranean Sea found carbonate accumulation rates 2–11 times higher on the mounds compared to on the adjacent seafloor or the regional average (Lindberg and Mienert, 2005; Dorschel et al., 2007b; Titschack et al., 2009, 2015, 2016; Hebbeln et al., 2019; Tamborrino et al., 2022). However, just two studies have directly measured and compared carbonate accumulation on a mound to the immediate surrounding environment (Titschack et al., 2009, 2015), and all studies so far have focused on carbonate accumulation. This study provides a first holistic approach looking at the total carbon accumulation, including both Cinorg and Corg Acc on two mounds and two nearby off-mound records. To come to a conclusion about carbon accumulation rates and whether the CWC mounds studied are effective carbon sinks, comparability is essential. Ultimately, this raises the unresolved question of what time frames we should be looking at when discussing carbon sinks (Rossi and Rizzo, 2020).

The comparability of aggradation rates and, subsequently, carbon accumulation rates between different ecosystems (also different CWC mound records) depends strongly on the time interval considered. The time-averaging effect complicates comparisons between records, with generally decreasing aggradation rates corresponding to increasing time intervals analysed (e.g. Schlager, 2003). For instance, present-day shallow-water coral reefs are carbonate factories that swing between states of active formation and extinction, being locally absent or displaced due to periodic sea level fluctuations and associated environmental change (e.g. Schlager, 1981; Milliman, 1993; Camoin and Webster, 2015; Wood et al., 2023). If carbon accumulation rates of such ecosystems are not only calculated for their active formation phase but also include periods of their temporal, local extinction, the time-averaging effects shift the accumulation rates to lower values. This also relates to rates within formation phases if the accumulation rates show large variations, as is the case in CWC mound records. Hence, any comparison of (CWC mound) carbonate and carbon accumulation rates has to be done with utter caution, with an awareness of whether these rates are calculated for large timescales across several (CWC mound) formation phases interrupted by periods of extinction (e.g. Titschack et al., 2009; the latter partly covering time intervals of hundreds of thousands of years), for intermediate timescales treating each (CWC mound) formation phase separately ( tens of thousands of years; this study), or for individual “units” within one (CWC mound) formation phase ( hundreds of years; e.g. Titschack et al., 2015). For instance, Norwegian CWC mound formation exhibits short-term maxima of up to >2000 g CaCO3 cm−2 kyr−1 (Titschack et al., 2015). However, averaged across the entire mound formation phase record, aggradation and accumulation rates off Norway are on the same level as the enhanced mound formation phases described here ( 100 g CaCO3 cm−2 kyr−1).

Thus, for consistency, we have chosen to look at complete mound formation phases, which are compared to the exact same period in the off-mound records. This approach allows the comparison of the mound formation phases discussed in this study with total mean rates from Titschack et al. (2015, 2016), who calculated accumulation rates over similar time spans ( 3–8 kyr). Ultimately, only studies that analysed core records covering similar time periods of at least 1 kyr were selected for further comparisons between CWC mound records or with other ecosystems.

5.1 Patterns of carbon(ate) accumulation in CWC mounds across space and time

Based on the mean and minimum–maximum range in total carbon(ate) accumulation for each mound formation phase in our study (Table 3), we identified three different groups of accumulation: phases of high carbon(ate) accumulation (DM5, DM6, BRIfinal; mean >100 g CaCO3 cm−2 kyr−1 and  15 g C cm−2 kyr−1), phases of moderate carbon(ate) accumulation (DM2, DM3; 49–53 g CaCO3 cm−2 kyr−1 and 6–7 g C cm−2 kyr−1), and phases of slow carbon(ate) accumulation (DM1, DM4; <16 g CaCO3 cm−2 kyr−1 and 1–2 g C cm−2 kyr−1). These correspond to high (>100 cm kyr−1), moderate (<100 and >20 cm kyr−1), and low (<20 cm kyr−1) CWC mound ARs. A similar pattern has also been found for CWC mounds studied by Titschack et al. (2015, 2016) in Norway and the Mediterranean. For instance, compared to the high-carbonate-accumulating mound formation phases in this study (AR  140 cm kyr−1;  110 g CaCO3 cm−2 kyr−1), the Norwegian CWC mounds of Træna Reef have very similar ARs (138 cm kyr−1) and accumulate a similar amount of carbonate, with 103 g CaCO3 cm−2 kyr−1 during a comparable time span ( 4 kyr; Titschack et al., 2015). Combining our new data with mean values from Titschack et al. (2015, 2016), we find an overall correlation of R2=0.97 (p<0.0001) between ARs and on-mound carbonate accumulation rates for CWC mounds (Fig. 5), suggesting that carbonate accumulation is mainly driven by ARs and that the sediment composition plays a subordinate role.

https://bg.copernicus.org/articles/22/2201/2025/bg-22-2201-2025-f05

Figure 5Cross-plot outlining the relationship between cold-water coral (CWC) mound aggradation rates (ARs) and the carbonate accumulation rate with R2=0.97 (p<0.0001) for mean rates calculated for individual mound formation phases or, if not available, formation units covering time spans of >3 kyr and minimum ARs of >5 cm kyr−1. n= 13. Blue symbols are from this study; green symbols are from Titschack et al. (2016), with two cores from the Ionian Sea (Santa Maria di Leuca (SML) a and b); and the pink symbols are from Titschack et al. (2015) Norway. For the literature data, the approximate time period of the mound formation records is given in brackets: entire (H), early (EH), or late (LH) Holocene.

Download

Enhanced mound formation phases with high ARs of >100 cm kyr−1, as presented above, have been reported from many more CWC mound provinces (when averaged across similar time spans), such as Mauritania (Wienberg et al., 2018; Wienberg et al., 2023), Namibia (Tamborrino et al., 2019), and Scotland (Douarin et al., 2013; Douarin et al., 2014). Based on the correlation we found (Fig. 5), we assume that these CWC mound provinces also accumulate high amounts of carbon(ate). Using a 70 m long MeBo core record, we can for the first time compare carbon(ate) accumulation rates on the same CWC mound at the resolution of individual mound formation phases. This study shows that carbon(ate) accumulation occurred at comparable rates during young and old mound formation phases, making a secondary loss of carbon by diagenetic processes unlikely, and confirms the potential for long-term carbon storage. In addition, the CWC mounds discovered to date are all located on passive continental margins (cf. Bradley, 2008), further highlighting their potential as very long-term carbon sinks.

5.2 The role of sediments in carbon accumulation on CWC mounds

Our results demonstrate that sediments not only are essential for CWC mound formation (Thiem et al., 2006; Wheeler et al., 2007; Roberts et al., 2009; Pirlet et al., 2011; Wang et al., 2021) but also play a substantial role in carbon storage within the mounds, with a contribution of up to 70 % (Table 3). During phases of enhanced CWC mound formation, i.e. high ARs, fast-growing coral frameworks are preserved in an upright position and provide accommodation space and baffling capacity for greater sediment deposition (Wang et al., 2021; see also Dorschel et al., 2007a; Wheeler et al., 2008; Huvenne et al., 2009; Titschack et al., 2009, 2015). This results in mound deposits with low coral and high sediment contents. In contrast, slower-growing CWC frameworks degrade over time, creating a coral rubble layer with less sediment baffling capacity, resulting in mound deposits with high coral and low sediment contents (Titschack et al., 2015, 2016; Wang et al., 2021). However, there are also other factors influencing the contribution of the sedimentary carbon fraction to the total carbon accumulation on a CWC mound. During the enhanced Dragon Mound formation phases (DM5, DM6), the sedimentary carbon fraction dominates the carbon accumulation (it contributes 57 %–70 % to the total carbon accumulation; Table 3), but the most recent mound formation phase documented for BRI (BRIfinal) shows a relatively lower contribution of 48 % (Tables 2, 3) despite a comparable mound AR. This implies that while carbon(ate) accumulation is steered by ARs, the overall contribution of sedimentary carbon to the total carbon accumulation on a mound can vary when averaging rates over entire mound formation phases. One explanation for this could be that BRI is located slightly deeper and is further away from the coast compared to Dragon Mound: generally, the amount of sediment input increases with proximity to the shore/nearest river mouths (e.g. Diesing, 2020; Epstein et al., 2024).

5.3 The role of organic carbon in CWC mounds: a geological perspective

The global Holocene average Corg Acc for sediment drift deposits globally is 0.09 g C cm−2 kyr−1 (Yin et al., 2024), which is well within the range of our mean Corg Acc from the off-mound record (see Table 4). This suggests that at the time of mound formation, our off-mound Corg Acc is representative of a contourite setting that is typical of the hydrodynamic environments surrounding CWC mounds (e.g. Hebbeln et al., 2016).

For the first time, we demonstrate that not only Cinorg but also Corg Acc is higher on the CWC mounds studied compared to the adjacent off-mound deposits. This is mostly due to a higher AR of CWC mound deposits. However, independent of the AR, we found a higher sediment Corg wt % content on the mounds compared to the sediment of the adjacent seafloor (off-mound), greater by a factor of 1.2–1.4 (Table 4). This indicates that not only does the Corg accumulate faster on the mounds but the material deposited on the mounds itself has a different composition and is enriched with Corg. Irrespective of the quantity of sediment deposition, the Corg fraction of a sedimentary unit on the mound is higher, meaning that the on-mound matrix sediments are selectively enriched with Corg. Thus, CWC mounds are effective sinks of Corg due to (1) the higher CWC mound ARs compared to sedimentation rates on the adjacent seafloor and (2) selective enrichment of the mound matrix sediments with Corg.

While CWC mounds are generally located in areas of high bottom currents (Mienis et al., 2007; Dorschel et al., 2009; Hebbeln et al., 2016), the coral framework itself locally reduces the regional flow speed by up to 70 %; changes the carrying capacity of the water mass; and allows the deposition of suspended, fine-grained, and lighter sediment particles between the corals (Bartzke et al., 2021; Wang et al., 2021). There is a link between the fining of sediments and an increase in Corg content (e.g. Dahl et al., 2016; Paradis et al., 2023), which has also been observed on CWC mounds (Kiriakoulakis et al., 2007; Stalder et al., 2018). This suggests that despite strong bottom currents, Corg-rich particles (large surface area per weight, low density; Bergamaschi et al., 1997; Paradis et al., 2023) were trapped on the mound through the baffling effect of the coral framework (Wang et al., 2021; Corbera et al., 2022), while at the same time, the adjacent (off-mound) seafloor faced a sediment bypass situation (sensu Wang et al., 2021). In addition, pycnocline-related nepheloid layers carried by internal waves certainly play a role in the transport of Corg across the Alborán Sea (Masqué et al., 2003; Puig et al., 2004; Sanchez-Vidal et al., 2005) and have been widely attributed to the occurrence of CWCs and mounds (Frederiksen et al., 1992; Mienis et al., 2007; Hanz et al., 2019). Following this concept, Wang et al. (2019) and Corbera et al. (2021) also suggested internal waves as a key control of CWC reef development within the southern Alborán Sea by delivering Corg-rich materials as food to the corals on CWC mounds at certain depth intervals. Ultimately, it is currently unclear whether the selective enrichment of Corg within the mound records is caused by nepheloid layer formation and/or a Corg bypass situation in the off-mound setting. Large CWC mounds forming significant elevations on the seafloor can also self-induce local downward transport of organic matter towards the mound summit (Mohn et al., 2014; Cyr et al., 2016; Soetaert et al., 2016; van der Kaaden et al., 2021), which may further contribute to a higher Corg supply to mounds compared to the plain seafloor.

Notably, it is the combination of (i) the physical hydrodynamic processes outlined here and (ii) biological processes that controls the Corg Acc on a CWC mound. Both processes happen at two scales: at a larger hydrodynamic scale, Corg is delivered to the reef by currents, while the baffling of Corg happens at the scale of the coral frameworks on the mound. From a biological perspective, Corg is produced at a large scale by primary (Corg) production in the surface ocean, and after being supplied to the CWC mound, biological processes at the local scale of the reef further determine how much Corg eventually gets accumulated. Thriving CWC reefs are highly productive and are considered hotspots of biomass, metabolism, and Corg turnover (van Oevelen et al., 2009; Cathalot et al., 2015; De Clippele et al., 2021a; De Clippele et al., 2021b). This includes further recycling of organic waste products within the CWC reef's food web (Maier et al., 2020, 2023). As primary-production-derived Corg is exclusively respired or transformed but not newly produced by the heterotroph CWC reef fauna, Corg accumulation in a CWC mound should be lower compared to off-mound deposits. Accordingly, high-level metabolism (i.e. higher carbon turnover relative to the surrounding seafloor; de Froe et al., 2019; De Clippele et al., 2021a) within the reef framework may reduce the amount of Corg available for accumulation in the sediment (Wehrmann et al., 2009). This is in contrast to our finding that CWC mound sediment deposits are enriched in Corg and have higher Corg Acc rates compared to the off-mound deposits. Two studies on CWC reef surface sediments (northeast Atlantic) also found a Corg wt % enriched top layer relative to an off-mound setting (Kiriakoulakis et al., 2004; de Froe et al., 2019). Consequently, the sediments arriving at the CWC mound may initially have an even higher Corg enrichment, but the CWC reef fauna prevents part of it from being buried in the long term. On the other hand, other benthic ecosystems characterised by high biodiversity and species density exhibit enhanced levels of Corg-rich detritus, bioturbation, etc., which may also increase the quantity of Corg buried (Canfield, 1994; Karlson et al., 2010; Strong et al., 2015; James et al., 2024). However, it is unknown what role these processes play in CWC reefs. This all emphasises that the complex interplay between biological and geological processes on CWC mounds, especially regarding Corg burial, is poorly understood and poorly quantified.

5.4 Cold-water coral mounds as carbon sinks

Carbon sinks are natural systems that remove carbon from the atmosphere–hydrosphere carbon cycle and store it in the bio- or lithosphere (see Baker, 2007; Howard et al., 2017; Cartapanis et al., 2018). CWC mounds transfer carbon from the short-term carbon cycle (atmosphere–hydrosphere) to the long-term carbon cycle (lithosphere). While the Cinorg sink removes dissolved inorganic carbon from the surrounding water mass, the Corg sink relies on Corg production in the surface ocean (primary production) and thus removes carbon from the surface ocean. Consequently, both carbon sinks remove carbon from different short-term reservoirs.

Our study provides quantitative evidence that the burial of both Cinorg and Corg happens at enhanced rates on CWC mounds. More specifically, we found that during the same period, total carbon accumulation on two Mediterranean CWC mounds exceeds the rates of the adjacent seafloor by a factor of 14–19 during the same period. For Cinorg Acc (carbonate) individually, a factor of 15–19 results from our record, confirming that CWC mounds are effective local carbonate factories. As a novelty, this study highlights the additional importance of CWC mounds as long-term sinks for Corg. The accumulation of Corg is 9–14 times higher on the CWC mounds due to not only the enhanced sediment deposition within the mounds but also higher Corg content of the deposited sediment.

In addition to comparing carbon accumulation rates during the mound formation phases, assessing the total long-term net carbon burial throughout a mound's entire existence (i.e. Dragon Mound,  400 kyr) in both on- and off-mound settings may provide further insight into the potential role of CWC mounds in the marine carbon cycle. Notably, there were extensive periods without any mound formation or carbon accumulation (see hiatuses in Fig. 3), whereas off-mound accumulation is expected to be continuous. However, our off-mound record is comparably short ( 126 kyr) and only overlaps with one mound formation phase on Dragon Mound. A stratigraphically longer off-mound record, preferably spanning the full record of Dragon Mound from initiation until present, would allow a much more meaningful comparison. Sediment core records documenting  400 kyr of carbon accumulation are scarce in the southern Alborán Sea. The only available off-mound sediment core record that provides the necessary data is ODP Leg 161 Hole 979A (Comas et al., 1996; Shipboard Scientific Party, 1996) at 1062 m b.s.l. (35°43.427 N, 3°12.353 W; data sources are https://web.iodp.tamu.edu/OVERVIEW/?&exp=161&site=979, last access: 28 April 2025 and the biostratigraphic age model from de Kaenel et al., 1999).

https://bg.copernicus.org/articles/22/2201/2025/bg-22-2201-2025-f06

Figure 6Long-term comparison of on- and off-mound carbon accumulation in the southern Alborán Sea. The off-mound data are derived from our off-mound cores GeoB13731-1 and MD13-3457, together spanning the last  126 kyr, and core ODP161-979A, spanning the last 400 kyr (the overlap between both records is marked by the grey box). On-mound carbon accumulation is from Dragon Mound (GeoB18116-2). Carbon accumulation for all records is divided into its different fractions: coral inorganic carbon (coral C inorg) and sediment inorganic and organic carbon (sediment C inorg and sediment C org). Carbon accumulation rates are stacked as cumulative values.

Download

To assess the applicability of this ODP core as a valuable off-mound counterpart to our on-mound record from Dragon Mound, we first compare it to the off-mound record analysed in this study. Over the last >100 kyr, the off-mound record presented herein (originating from cores GeoB13731-1 and MD13-3457), with a mean organic carbon accumulation rate of 0.2 g Corg cm−2 kyr−1 (range: 0.03–0.7 g Corg cm−2 kyr−1), is comparable to the 0.3 g Corg cm−2 kyr−1 (range: 0.1–0.5 g Corg cm−2 kyr−1) in the ODP core. Similarly, the mean inorganic carbon accumulation of 0.9 g Cinorg cm−2 kyr−1 (range: 0.3–3.6 g Cinorg cm−2 kyr−1) at our off-mound site is very close to the 1.0 g Cinorg cm−2 kyr−1 (range: 0.7–1.3 g Cinorg cm−2 kyr−1) in the ODP core. Consequently, the mean total carbon accumulation rates in both cores are also quite similar: 1.1 g C cm−2 kyr−1 (range: 0.3–4.3 g C cm−2 kyr−1) and 1.3 g C cm−2 kyr−1 (range: 0.9–1.7 g C cm−2 kyr−1), respectively, highlighting the regional consistency of off-mound net carbon burial through time. Correspondingly, our off-mound core record represents not only local but also regional off-mound accumulation dynamics that are well-suited to the purpose of this study.

Finally, the integration of net carbon burial for on- and off-mound records (GeoB18116-2 versus ODP161-979A, respectively) over the complete evolution of Dragon Mound since mound initiation, i.e. the last  400 kyr covering several glacial–interglacial cycles, reveals that total carbon accumulation at Dragon Mound (649 g C cm−2) is 20 % higher than at the off-mound site ODP161-979A (544 g C cm−2; Fig. 6). Importantly, this is observed despite >200 kyr of non-sedimentation on the mound. In this direct comparison, the extensive BRIfinal mound formation phase, which is widely recorded in the EMCP (see Wienberg et al., 2022), cannot be considered, as it is not documented at Dragon Mound. Thus, for other CWC mounds in the EMCP, the surplus on-mound carbon accumulation might be even higher.

From a broader perspective, the carbon and carbonate accumulation on the CWC mounds investigated corresponds well with other ecosystems that have been attributed a relevant role in the carbon cycle. The mean carbonate accumulation rates of 105–115 g CaCO3 cm−2 kyr−1 during the last three enhanced mound formation phases at BRI and Dragon Mound are similar to those of tropical coral reefs (mean of  120 g CaCO3 cm−2 kyr−1; Milliman, 1993). When looking at total carbon accumulation, the CWC mounds studied accumulate  1–15 g C cm−2 kyr−1 during phases of active mound formation, while carbon storing ecosystems like peatlands accumulate carbon at a rate of 1.4–2.2 g C cm−2 kyr−1 (Roulet et al., 2007), seagrass meadows at  3.6 g C cm−2 kyr−1 (Samper-Villarreal et al., 2018; export production not considered), and salt marshes at  4.0 g C cm−2 kyr−1 (Johnson et al., 2007). These examples outline the capacity of CWC mounds to temporarily accumulate carbon at similar or even higher rates compared to other, well-known carbon storing ecosystems.

6 Conclusion

This study presents a first calculation of the total carbon accumulation, including inorganic (Cinorg) and organic carbon (Corg), on two CWC mounds in the western Mediterranean (Alborán Sea), showing that active CWC mounds can be effective carbon sinks across geological timescales. During times of enhanced mound formation with mound ARs of >100 cm kyr−1, the total carbon accumulation is  15 g C cm−2 kyr−1 and is estimated to be 14–19 times higher than in the adjacent seafloor deposits during the same time period. We highlight that CWC mounds effectively act as local carbon sinks for both Cinorg and Corg during mound formation phases and most likely beyond. Moreover, CWC mounds accumulate carbon at a similar level to that of other ecosystems, e.g. salt marshes, seagrass meadows, or peatlands, that are known for their high carbon-storing capacity. We find that high carbonate accumulation rates correlate with high mound ARs. With multiple known CWC mound provinces exhibiting high ARs of >100 cm kyr−1, we speculate that CWC mounds may play a vital role in the carbon budget of many regions. However, more studies on the role of CWC mounds in the long-term carbon cycle and on the dynamics of carbon accumulation across time and space are needed to validate this. Knowledge about the distribution and abundance of CWC mounds along the world's continental margins is still very limited, hindering further upscaling at present.

With our data, we underline that the contribution of sedimentary carbon is crucial to the process of on-mound carbon accumulation. Furthermore, sediment-derived Corg may play a previously overlooked, important role in on-mound carbon accumulation, and our data suggest that CWC mound sediments may be selectively enriched in Corg. Corg contributes 6 %–9 % to total carbon accumulation on the CWC mounds studied and needs to be considered when evaluating the carbon accumulation of marine carbonate factories.

Through an analysis of a total time span of  400 kyr and the investigation of all major compartments of carbon accumulation, this study provides a step towards including CWC mounds in global marine carbon budget assessments. On that note, an increasing number of studies highlight the overlooked role that marine fauna and heterotroph ecosystems as a whole play in transferring carbon between different carbon reservoirs (i.e. atmosphere, hydrosphere, biosphere, and lithosphere; Schmitz et al., 2014; Schmitz et al., 2018; James et al., 2024).
