Relative enrichment of ammonium and its impacts on open-ocean phytoplankton community composition under a high-emissions scenario

Ammonium (NH${}_{\mathrm{4}}^{+}$) is an important component of the ocean's dissolved inorganic nitrogen (DIN) pool, especially in stratified marine environments where intense recycling of organic matter elevates its supply over other forms. Using a global-ocean biogeochemical model with good fidelity to the sparse NH${}_{\mathrm{4}}^{+}$ data that are available, we project increases in the NH${}_{\mathrm{4}}^{+}$ : DIN ratio in over 98 % of the ocean by the end of the 21st century under a high-emission scenario. This relative enrichment of NH${}_{\mathrm{4}}^{+}$ is driven largely by circulation changes and secondarily by warming-induced increases in microbial metabolism, as well as reduced nitrification rates due to pH decreases. Supplementing our model projections with geochemical measurements and phytoplankton abundance data from Tara Oceans, we demonstrate that shifts in the form of DIN to NH${}_{\mathrm{4}}^{+}$ may impact phytoplankton communities by disadvantaging nitrate-dependent taxa like diatoms while promoting taxa better adapted to NH${}_{\mathrm{4}}^{+}$. This could have cascading effects on marine food webs, carbon cycling and fishery productivity. Overall, the form of bioavailable nitrogen emerges as a potentially underappreciated driver of ecosystem structure and function in the changing ocean.

1 Introduction

The chemical species of dissolved inorganic nitrogen (DIN) are fundamental for the growth of marine primary producers that underpin oceanic food webs, fishery production and the carbon cycle. Bioavailable DIN is composed of different forms, principally nitrate (NO${}_{\mathrm{3}}^{-}$), nitrite (NO${}_{\mathrm{2}}^{-}$) and ammonium (NH${}_{\mathrm{4}}^{+}$). Typically, NO${}_{\mathrm{3}}^{-}$ is regarded as the main form. This is not without reason, since NO${}_{\mathrm{3}}^{-}$ represents most of the total DIN stock and is prevalent in highly productive regions where it tends to fuel the majority of primary production (Dugdale, 1967). However, NH${}_{\mathrm{4}}^{+}$ and NO${}_{\mathrm{2}}^{-}$ are recognized as critical fuels for marine primary production in stratified environments, where intense recycling of organic matter can elevate their use by phytoplankton (Clark et al., 2008; Dugdale and Goering, 1967; Fawcett et al., 2011; Rodgers et al., 2024; Yool et al., 2007) and fuel rapid rates of primary production via rapid recycling even if the standing stock of DIN is low (Bender and Jönsson, 2016; Matsumoto et al., 2016; Rii et al., 2016; Yang et al., 2019).

The relative speciation of DIN plays a crucial role in shaping marine phytoplankton community composition. Marine diatoms, for instance, show a competitive edge over other types of phytoplankton for growth on NO${}_{\mathrm{3}}^{-}$ as a source of bioavailable nitrogen (Berg et al., 2003; Fawcett et al., 2011; Glibert et al., 2016a; Klawonn et al., 2019; Litchman, 2007; Van Oostende et al., 2017; Selph et al., 2021; Tungaraza et al., 2003; Wan et al., 2018). One theory posits that their ecological success in turbulent, high-NO${}_{\mathrm{3}}^{-}$ environments (Margalef, 1978) may be due to a capacity to store NO${}_{\mathrm{3}}^{-}$ in their vacuoles and then rapidly reduce it when they experience sudden increases in light, which would position diatoms to rapidly consume any excess reductant that would otherwise retard growth (Glibert et al., 2016a; Lomas and Glibert, 1999; Parker and Armbrust, 2005). Meanwhile, other phytoplankton types such as cyanobacteria, more adapted to stable conditions, are considered better competitors for the reduced forms of nitrogen, including NH${}_{\mathrm{4}}^{+}$ (Fawcett et al., 2011; Glibert et al., 2016a; Litchman et al., 2007) (Fig. 1). There is intense competition for NH${}_{\mathrm{4}}^{+}$ since nitrogen in this form can be most efficiently converted into glutamate and other basic building blocks for biomass synthesis, while NO${}_{\mathrm{2}}^{-}$ and NO${}_{\mathrm{3}}^{-}$ must be reduced first within the cell (Dortch, 1990). Thus, phytoplankton types with superior affinities for NH${}_{\mathrm{4}}^{+}$, like cyanobacteria, tend to displace other taxa under nitrogen-limiting conditions (Litchman et al., 2007). These competitive outcomes are also well documented in freshwater and brackish systems (Andersen et al., 2020; Carter et al., 2005; Donald et al., 2013; Örnólfsdóttir et al., 2004; Trommer et al., 2020) and appear somewhat universal in aquatic environments.

Figure 1 Regimes of low NH${}_{\mathrm{4}}^{+}$ : DIN and higher NH${}_{\mathrm{4}}^{+}$ : DIN regimes in the upper ocean. In a low NH${}_{\mathrm{4}}^{+}$ : DIN regime, there is more vertical delivery of NO${}_{\mathrm{3}}^{-}$ to the upper ocean through physical mixing, which is taken up by larger phytoplankton (termed new production), including diatoms, to produce larger, denser aggregates of sinking organic matter (marine snow) that undergo recycling deeper in the water column. In the high NH${}_{\mathrm{4}}^{+}$ : DIN regime, less NO${}_{\mathrm{3}}^{-}$ is mixed into the upper ocean, and NH${}_{\mathrm{4}}^{+}$ supports a greater proportion of primary production (termed regenerated production). Those phytoplankton that are competitive for NH${}_{\mathrm{4}}^{+}$ tend to be smaller and form less dense aggregates that sink more slowly. Consequently, more organic matter is recycled within the photosynthetically active zone (herein defined as where phytoplankton biomass >0.1 mmol C m⁻³), and there is more regenerated production. All processes are affected by changes to seawater properties driven by large-scale climate change.

As anthropogenic pressures increase, several factors may tip the balance towards NH${}_{\mathrm{4}}^{+}$ and other reduced forms of DIN (Fig. 1). Physical changes, including a changing oceanic circulation (Sallée et al., 2021), are expected to limit inputs of NO${}_{\mathrm{3}}^{-}$ from deeper waters to further intensify nitrogen limitation of phytoplankton communities (Bopp et al., 2005; Buchanan et al., 2021). Climate warming is expected to accelerate the metabolism of phytoplankton (Anderson et al., 2021; Eppley, 1972) and thereby increase nitrogen demand and recycling rates (Cherabier and Ferrière, 2022) to potentially elevate reduced forms of nutrients in the lower latitudes (Rodgers et al., 2024). Meanwhile, ocean acidification may decelerate rates of microbial ammonia oxidation, the first step of nitrification (Beman et al., 2011). While it is unlikely that ammonia oxidation would be slowed to the point where substantial quantities of NH${}_{\mathrm{4}}^{+}$ do not undergo oxidation, a slight deceleration in the upper ocean may elevate the supply ratio of NH${}_{\mathrm{4}}^{+}$ to NO${}_{\mathrm{3}}^{-}$. These changes are expected to increase the relative availability and/or supply of NH${}_{\mathrm{4}}^{+}$ compared to the more oxidized forms of NO${}_{\mathrm{2}}^{-}$ and NO${}_{\mathrm{3}}^{-}$. Due to the intense competition for NH${}_{\mathrm{4}}^{+}$ and resulting shifts towards smaller, more competitive phytoplankton taxa, the relative enrichment in NH${}_{\mathrm{4}}^{+}$ may become a self-sustaining regime unless new inputs of NO${}_{\mathrm{3}}^{-}$ are sufficient to reverse it. However, the magnitude of NH${}_{\mathrm{4}}^{+}$ enrichment and its dominant drivers remain unquantified. Moreover, even though there are numerous localized studies that showcase how phytoplankton taxa shift in response to changes in the composition of DIN (Berg et al., 2003; Fawcett et al., 2011; Glibert et al., 2016a; Klawonn et al., 2019; Litchman, 2007; Van Oostende et al., 2017; Selph et al., 2021; Tungaraza et al., 2003; Wan et al., 2018), we lack a general understanding of the degree to which phytoplankton communities are affected by the relative enrichment of NH${}_{\mathrm{4}}^{+}$ at the global scale. This represents an important knowledge gap as to how climate change will affect the upper-ocean nitrogen cycle and phytoplankton community composition, with possible implications for carbon export and fishery productivity.

In this work, we use a global-ocean biogeochemical model equipped with an advanced nitrogen cycle to quantify the relative enrichment of NH${}_{\mathrm{4}}^{+}$ within DIN in a future ocean. Hereafter, we use the NH${}_{\mathrm{4}}^{+}$ to dissolved inorganic nitrogen ratio (NH${}_{\mathrm{4}}^{+}$ : DIN), where DIN = NH${}_{\mathrm{4}}^{+}+$ NO${}_{\mathrm{2}}^{-}+$ NO${}_{\mathrm{3}}^{-}$, as a measure of this relative availability in the form of nitrogen. When we refer to the relative enrichment of NH${}_{\mathrm{4}}^{+}$, we specifically mean an increase in the amount of DIN that is NH${}_{\mathrm{4}}^{+}$, with an enrichment consistent with a higher proportion of primary production supported through regeneration (i.e., NH${}_{\mathrm{4}}^{+}$-fueled). We comment on the potential ecological importance of this enrichment by using compilations of phytoplankton relative abundance data collected during the Tara Oceans expeditions and idealized experiments that isolate the effect of competition for NH${}_{\mathrm{4}}^{+}$ from NO${}_{\mathrm{3}}^{-}$.

2 Materials and methods

2.1 The biogeochemical model

The biogeochemical model is the Pelagic Interactions Scheme for Carbon and Ecosystem Studies version 2 (PISCES-v2), which is detailed and assessed in Aumont et al. (2015). This model is embedded within version 4.0 of the Nucleus for European Modelling of the Ocean (NEMO-v4.0). We chose a 2° nominal horizontal resolution with 31 vertical levels with thicknesses ranging from 10 m in the upper 100 to 500 m below 2000 m. Due to the curvilinear grid, horizontal resolution increases to 0.5° at the Equator and to near 1° poleward of 50° N and 50° S.

We updated the standard PISCES-v2 (Aumont et al., 2015) for the purposes of this study, specifically by adding NO${}_{\mathrm{2}}^{-}$ as a new tracer. The PISCESv2 biogeochemical model already resolved the pools of NH${}_{\mathrm{4}}^{+}$, NO${}_{\mathrm{3}}^{-}$, dissolved oxygen, the carbon system, dissolved iron, phosphate, two kinds of phytoplankton biomass (nanophytoplankton and diatoms), two kinds of zooplankton biomass (micro- and meso-zooplankton), small and large pools of particulate organic matter, and dissolved organic matter (Aumont et al., 2015). While the model does not strictly represent picophytoplankton, implicit variations in the average cell size of the nanophytoplankton type affect nutrient uptake dynamics and may therefore encompass some functionality of picophytoplankton in oligotrophic systems (Aumont et al., 2015). The addition of NO${}_{\mathrm{2}}^{-}$ necessitated breaking full nitrification (NH${}_{\mathrm{4}}^{+}\to$ NO${}_{\mathrm{3}}^{-}$) into its two steps of ammonia (NH${}_{\mathrm{4}}^{+}\to$ NO${}_{\mathrm{2}}^{-}$) and nitrite oxidation (NO${}_{\mathrm{2}}^{-}\to$ NO${}_{\mathrm{3}}^{-}$). Both steps were simulated implicitly by multiplying a maximum growth rate by the concentration of substrate and limitation terms representing the effect of environmental conditions to return the realized rate. For ammonia oxidation, limitations due to substrate availability, light and pH determined the realized rate. For nitrite oxidation, limitations due to substrate availability and light affected the realized rate. All parameter choices were informed by field and laboratory studies, and a detailed description is provided in Sect. S1 in the Supplement.

New nitrogen is added to the ocean via biological nitrogen fixation, riverine fluxes and atmospheric deposition. Nitrogen fixation and static riverine additions are equivalent to that presented in Aumont et al. (2015), and atmospheric deposition is maintained at preindustrial rates according to Hauglustaine et al. (2014) and applied as in Buchanan et al. (2021). Nitrogen is removed from the ocean via denitrification, anaerobic ammonium oxidation (anammox) and burial. The internal cycling of nitrogen involves assimilation by phytoplankton, grazing and excretion by zooplankton, solubilization of particulates to dissolved organics, and ammonification of dissolved organic matter to NH${}_{\mathrm{4}}^{+}$, followed by nitrification of NH${}_{\mathrm{4}}^{+}$ and NO${}_{\mathrm{2}}^{-}$ via ammonia oxidation and nitrite oxidation (Sect. S1 in the Supplement).

2.2 Model experiments

2.2.1 Identifying anthropogenic drivers

To quantify the impact of anthropogenic activities on NH${}_{\mathrm{4}}^{+}$ : DIN ratios, we performed transient simulations by forcing the biogeochemical model with monthly physical outputs (temperature, salinity, ocean transports, shortwave radiation and wind speeds) produced by the Institut Pierre-Simon Laplace Climate Model 5A (Dufresne et al., 2013). Simulations included a preindustrial control (years 1850 to 2100) where land use, greenhouse gases and ozone remained at preindustrial conditions and a climate change run (years 1850 to 2100) where these factors changed according to historical observations from 1850 to 2005 and according to the high-emissions Representative Concentration Pathway 8.5 from 2006 to 2100 (RCP8.5) (Riahi et al., 2011). We chose a high-emissions scenario to emphasize the clearest degree of anthropogenic changes and thus maximize anthropogenic effects. However, we acknowledge that the RCP8.5 is considered an extreme scenario under present development pathways (Riahi et al., 2017).

In addition, we performed parallel experiments (years 1850 to 2100) that isolated the individual effects of our three anthropogenic stressors: a changing circulation (“Phys”), warming on biological metabolism (“Warm”), and acidification effects on ammonia oxidation (“OA”). The experiment with all anthropogenic effects was termed “All”. These experiments involved altering the factor of interest in line with the historical and RCP8.5 scenario while holding the other factors at their preindustrial state. Experiment “Phys”, for example, involved changing the ocean's circulation, temperature and salinity and the resulting effects to light associated with sea ice extent changes, but the ecosystem component of the model experienced only the preindustrial temperature, and atmospheric CO₂ was held at a preindustrial concentration of 284 ppm. In contrast, experiment “Warm” maintained the preindustrial climatological ocean state and atmospheric CO₂ at 284 ppm but ensured that the ecosystem component saw increasing temperatures (T in °C) according to the RCP8.5 scenario, which scaled growth of phytoplankton types according to 1.066^T and heterotrophic activity (grazing and remineralization) according to 1.079^T (Aumont et al., 2015). Experiment “OA” held the circulation and temperature effects on metabolism constant but involved the historical and future projected increase in atmospheric CO₂. This decreased pH and negatively affected rates of ammonia oxidation at a rate consistent with field measurements (Beman et al., 2011; Huesemann et al., 2002; Kitidis et al., 2011), specifically a loss of ∼ 20 % per 0.1 unit decrease in pH below 8.0 (Fig. S1).

The effect of climate change at the end of the 21st century (mean conditions 2081–2100) was quantified by comparing with the preindustrial control simulation (also mean conditions 2081–2100). This preindustrial control simulation was run parallel to the climate change simulations (i.e., 1850–2100) but without anthropogenic forcings. This allowed a direct comparison to be made between experiments at the end of the 21st century and eliminated the effect of model drift. We calculated changes at each grid cell by averaging over the upper ocean where primary production was active, which we hereafter refer to as the photosynthetically active zone defined as those depths where total phytoplankton biomass was greater than 0.1 mmol C m⁻³. In addition, we compared the preindustrial simulation with observations to explore broad patterns in NH${}_{\mathrm{4}}^{+}$ and NH${}_{\mathrm{4}}^{+}$ : DIN ratios.

2.2.2 Isolating the effect of competition for NH${}_{\mathrm{4}}^{+}$

A unique aspect of the PISCESv2 biogeochemical model is that it weights uptake of NH${}_{\mathrm{4}}^{+}$ over NO${}_{\mathrm{3}}^{-}$ when both substrates are low, but as NO${}_{\mathrm{3}}^{-}$ becomes abundant, the community switches towards using NO${}_{\mathrm{3}}^{-}$ as a primary fuel (Fig. 2). This is achieved via

$$\begin{array}{}\text{(1)}& {\displaystyle }{l}_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}={\displaystyle \frac{\left[{\mathrm{NH}}_{\mathrm{4}}^{+}\right]}{\left[{\mathrm{NH}}_{\mathrm{4}}^{+}\right]+K_{\mathrm{PFT}}^{\mathrm{N}}}}\text{(2)}& {\displaystyle }{l}_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}={\displaystyle \frac{\left[{\mathrm{NO}}_{\mathrm{2}}^{-}\right]+\left[{\mathrm{NO}}_{\mathrm{3}}^{-}\right]}{\left[{\mathrm{NO}}_{\mathrm{2}}^{-}\right]+\left[{\mathrm{NO}}_{\mathrm{3}}^{-}\right]+K_{\mathrm{PFT}}^{\mathrm{N}}}}\text{(3)}& {\displaystyle }{l}_{\mathrm{PFT}}^{\mathrm{DIN}}={\displaystyle \frac{\left[{\mathrm{NH}}_{\mathrm{4}}^{+}\right]+\left[{\mathrm{NO}}_{\mathrm{2}}^{-}\right]+\left[{\mathrm{NO}}_{\mathrm{3}}^{-}\right]}{\left[{\mathrm{NH}}_{\mathrm{4}}^{+}\right]+\left[{\mathrm{NO}}_{\mathrm{2}}^{-}\right]+\left[{\mathrm{NO}}_{\mathrm{3}}^{-}\right]+K_{\mathrm{PFT}}^{\mathrm{N}}}}\end{array}$$

$$\begin{array}{}\text{(4)}& {\displaystyle }{L}_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}={\displaystyle \frac{\mathrm{5}\cdot l_{\mathrm{PFT}}^{\mathrm{DIN}}\cdot l_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}}{l_{\mathrm{PFT}}^{{\mathrm{NO}}_{\mathrm{3}}^{-}}+\mathrm{5}\cdot l_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}}}\text{(5)}& {\displaystyle }{L}_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}={\displaystyle \frac{l_{\mathrm{PFT}}^{\mathrm{DIN}}\cdot l_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}}{l_{\mathrm{PFT}}^{{\mathrm{NO}}_{\mathrm{3}}^{-}}+\mathrm{5}\cdot l_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}}},\end{array}$$

where $K_{\mathrm{PFT}}^{\mathrm{N}}$ is the prescribed half-saturation coefficient for uptake of inorganic nitrogen for a given phytoplankton functional type (PFT); $\left[{\mathrm{NH}}_{\mathrm{4}}^{+}\right]$, $\left[{\mathrm{NO}}_{\mathrm{2}}^{-}\right]$, and $\left[{\mathrm{NO}}_{\mathrm{3}}^{-}\right]$ are the molar concentrations of ammonium, nitrite, and nitrate; $l_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}$, $l_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}$, and $l_{\mathrm{PFT}}^{\mathrm{DIN}}$ are the Michaelis–Menten uptake terms for NH${}_{\mathrm{4}}^{+}$, inorganic oxidized nitrogen (the sum of NO${}_{\mathrm{2}}^{-}$ and NO${}_{\mathrm{3}}^{-}$), and DIN; and $L_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}$ and $L_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}$ are the growth limitation factors on NH${}_{\mathrm{4}}^{+}$ and inorganic oxidized nitrogen. In the above, the resulting $L_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}$ and $L_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}$ terms (Eqs. 4–5) are influenced by a factor of 5 that is applied to $l_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}$. This assumes that NH${}_{\mathrm{4}}^{+}$ uptake is weighted 5 times more than oxidized inorganic nitrogen, which represents the well-established preference for growth on NH${}_{\mathrm{4}}^{+}$ (Dortch, 1990). However, as oxidized nitrogen (hereafter NO${}_{\mathrm{3}}^{-}$) becomes more abundant than NH${}_{\mathrm{4}}^{+}$, the $L_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}$ term exceeds $L_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}$, meaning that phytoplankton switch to new production over regenerated production (see cross over points between solid and dashed lines in Fig. 2).

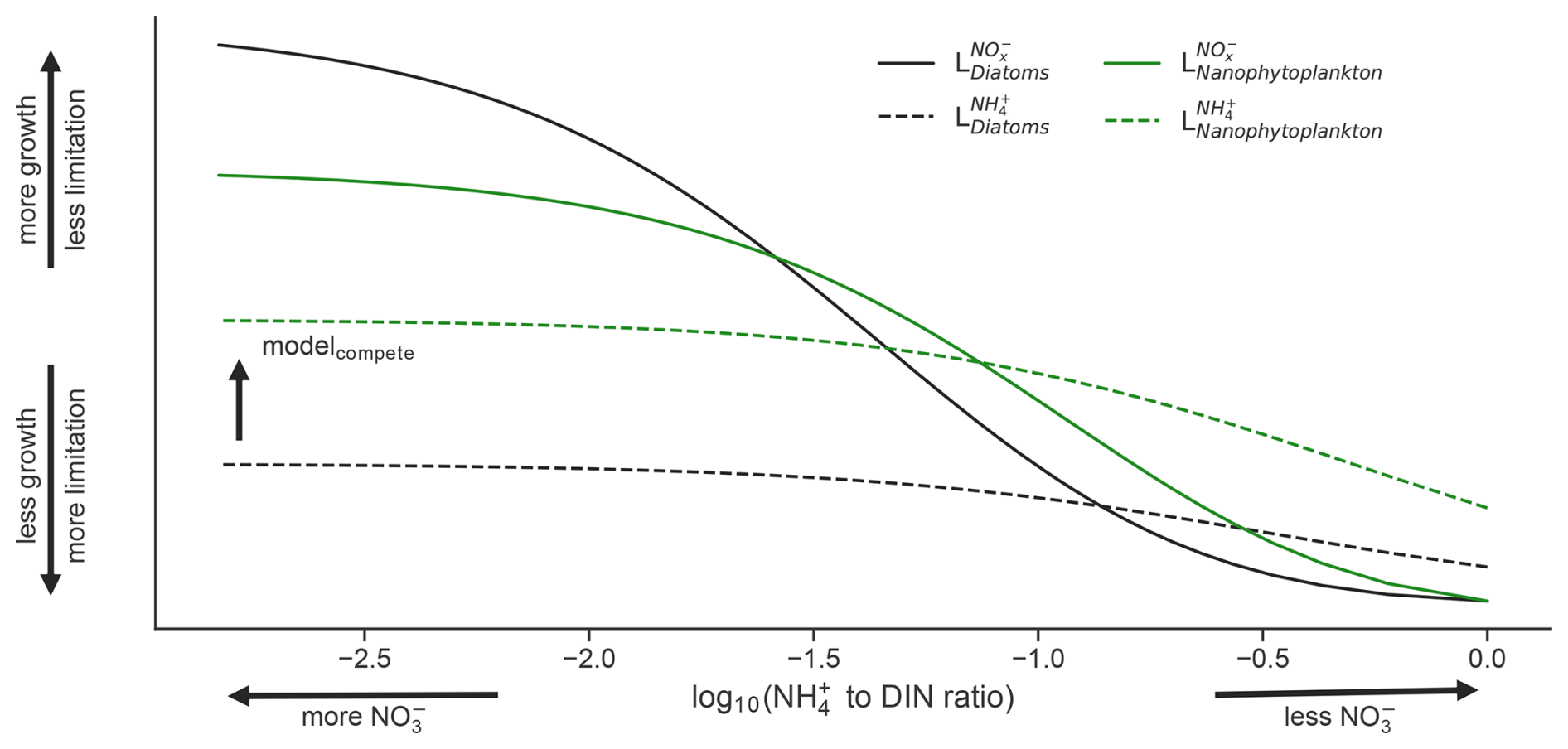

Figure 2 Limitation of the diatom (black) and nanophytoplankton (green) phytoplankton functional types (PFT) in the ocean biogeochemical model by NO${}_{\mathrm{3}}^{-}$ (solid lines) and NH${}_{\mathrm{4}}^{+}$ (dashed lines) as a function of the NH${}_{\mathrm{4}}^{+}$ : DIN ratio on a log₁₀ scale. Note that the nanophytoplankton PFT is always more competitive for NH${}_{\mathrm{4}}^{+}$ and is more competitive for NO${}_{\mathrm{3}}^{-}$ when NO${}_{\mathrm{3}}^{-}$ is low, while diatoms become more competitive for NO${}_{\mathrm{3}}^{-}$ when NO${}_{\mathrm{3}}^{-}$ is high.

These dynamics are common to both PFTs: nanophytoplankton and diatoms (Fig. 2). However, a key difference is that the $K_{\mathrm{PFT}}^{\mathrm{N}}$ of diatoms is prescribed as 3-fold greater than that of nanophytoplankton, reflecting their greater average size. As a result, diatoms are always less competitive than nanophytoplankton for NH${}_{\mathrm{4}}^{+}$ and are less competitive for NO${}_{\mathrm{3}}^{-}$ when NO${}_{\mathrm{3}}^{-}$ is scarce. However, a low $l_{\mathrm{PFT}}^{{\mathrm{NH}}_{\mathrm{4}}^{+}}$ for diatoms also results in a higher $L_{\mathrm{PFT}}^{{\mathrm{NO}}_x^{-}}$ as NO${}_{\mathrm{3}}^{-}$ concentrations rise. This is evident in Fig. 2, where growth by diatoms on NO${}_{\mathrm{3}}^{-}$ (black solid line) overtakes growth by nanophytoplankton on NO${}_{\mathrm{3}}^{-}$ (green solid line) as NO${}_{\mathrm{3}}^{-}$ becomes abundant. As a result, the model gives diatoms a competitive advantage over nanophytoplankton that accords with theorized growth advantages under high NO${}_{\mathrm{3}}^{-}$ (Glibert et al., 2016a; Lomas and Glibert, 1999; Parker and Armbrust, 2005). Additionally, the switch from regenerated to new primary production occurs at much lower concentrations of NO${}_{\mathrm{3}}^{-}$ for diatoms, aligning with fields studies that identify diatoms as responsible for the majority of NO${}_{\mathrm{3}}^{-}$ uptake in the nitracline (Fawcett et al., 2011).

We sought to isolate the impact of competition for NH${}_{\mathrm{4}}^{+}$ and thus target the causative relationship between NH${}_{\mathrm{4}}^{+}$ : DIN and variations in PFT relative abundance. To do so, we repeated the set of experiments described above (All, Phys, Warm, OA and the preindustrial control) from years 1850 to 2100 but with an alternative parameterization where diatoms were made to have the same growth limitation on NH${}_{\mathrm{4}}^{+}$ as other phytoplankton, so that there was zero competitive advantage or disadvantage for NH${}_{\mathrm{4}}^{+}$ between these groups (i.e., making the dashed black and green lines in Fig. 2 the same under all conditions). These simulations were called “model_compete” and were initialized from the same conditions as those done with the default parameterization, which we call “model_control”. All other traits remained unchanged, including the competitive advantage of diatoms at high NO${}_{\mathrm{3}}^{-}$ but also their competitive disadvantage at low NO${}_{\mathrm{3}}^{-}$ (Fig. 2). In other words, when DIN was low, diatoms were equally competitive for NH${}_{\mathrm{4}}^{+}$ as nanophytoplankton but still suffered their unique limitations associated with NO${}_{\mathrm{3}}^{-}$, light, silicate, phosphate and iron availability, as well as grazing pressure, and this isolated the direct effect of competition for NH${}_{\mathrm{4}}^{+}$.

2.3 Nutrient and rate data

Measured NH${}_{\mathrm{4}}^{+}$ concentrations (N=692; µM) were used for model–data assessment (Fig. 3; Figs. S2–S3). Nutrients were collated from published work (Buchwald et al., 2015; Mdutyana et al., 2020; Newell et al., 2013; Raes et al., 2020; Santoro et al., 2013, 2021; Shiozaki et al., 2016; Tolar et al., 2016; Wan et al., 2018, 2021) and oceanographic cruises AR16 (https://www.bco-dmo.org/deployment/747056, last access: 20 August 2022), JC156 and JC150. Coincident NO${}_{\mathrm{2}}^{-}$ and NO${}_{\mathrm{3}}^{-}$ (µM) were used to compute NH${}_{\mathrm{4}}^{+}$ : DIN ratios. If coincident measurements of NO${}_{\mathrm{2}}^{-}$ were not available, then NH${}_{\mathrm{4}}^{+}$ : DIN ratios were calculated with only NO${}_{\mathrm{3}}^{-}$. If NO${}_{\mathrm{3}}^{-}$ measurements were not made alongside NH${}_{\mathrm{4}}^{+}$, then NO${}_{\mathrm{3}}^{-}$ concentrations were extracted from the World Ocean Atlas 2018 (Garcia et al., 2019) monthly climatology at the closest grid cell. These data are available in Data Set S1 (Buchanan, 2024).

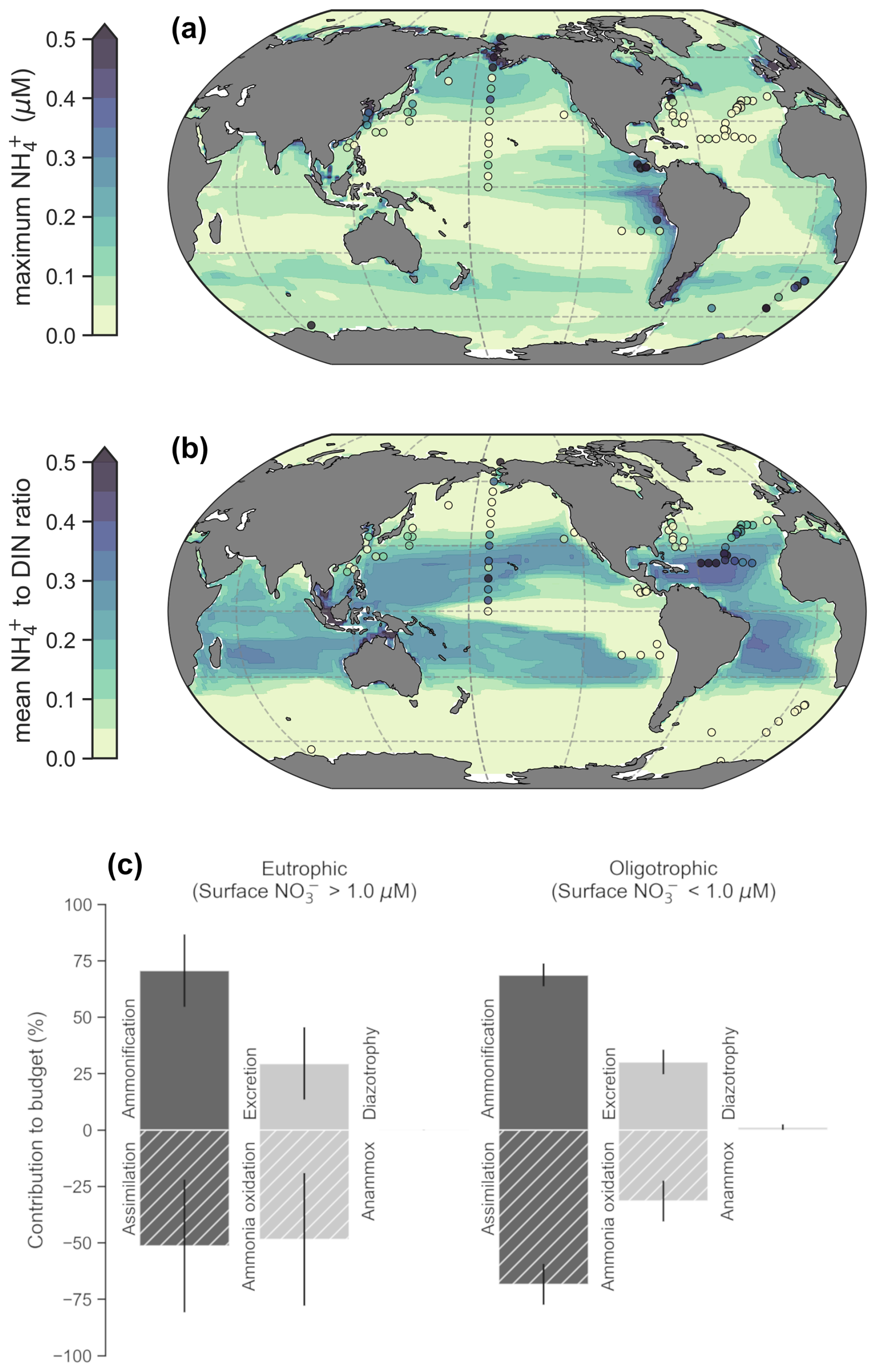

Figure 3 Global patterns of NH${}_{\mathrm{4}}^{+}$ concentrations, its contribution to DIN and NH${}_{\mathrm{4}}^{+}$ budgets within the photosynthetically active zone (phytoplankton biomass >0.1 mmol C m⁻³). (a) The simulated maximum NH${}_{\mathrm{4}}^{+}$ concentration. The maximum was chosen to emphasize basin-scale variations. (b) Average values of the NH${}_{\mathrm{4}}^{+}$ : DIN ratio. Modeled values are annual averages of the preindustrial control simulation between years 2081–2100. Observed values following linear interpolation between the surface and 200 m depth are overlaid as colored markers. Only those profiles with at least three data points within the upper 200 m are shown. (c) Global mean ± standard deviations of NH${}_{\mathrm{4}}^{+}$ fluxes separated into eutrophic and oligotrophic regions. Sources of NH${}_{\mathrm{4}}^{+}$ are represented by positive values and sinks by negative values.

Measured ammonia oxidation rates (N=696; nM d⁻¹) were also used for model–data assessment and showed an acceleration of rates from oligotrophic to eutrophic regions in agreement with the model (Fig. S3). Data were collated from published work (Clark et al., 2022; Dore and Karl, 1996; Mdutyana et al., 2020; Newell et al., 2013; Raes et al., 2020; Raimbault et al., 1999; Santoro et al., 2013, 2021; Shiozaki et al., 2016; Tolar et al., 2016; Wan et al., 2018, 2021) and are available in Data Set S2 (Buchanan, 2024).

Measurements of NH${}_{\mathrm{4}}^{+}$ and NO${}_{\mathrm{3}}^{-}$ concentrations (µM) alongside NH${}_{\mathrm{4}}^{+}$- and NO${}_{\mathrm{3}}^{-}$-fueled primary production (µmol m⁻³ d⁻¹) were used to determine the relationship between NH${}_{\mathrm{4}}^{+}$ : DIN ratios and the proportion of net primary production that is fueled by NH${}_{\mathrm{4}}^{+}$. While coincident measurements of these properties are not common, we compiled data from nine studies (Fernández et al., 2009; Joubert et al., 2011; Mdutyana et al., 2020; Metzler et al., 1997; Philibert, 2015; Rees et al., 2006; Thomalla et al., 2011; Wan et al., 2018; Yingling et al., 2021) providing 190 data points that together encompassed oligotrophic to eutrophic conditions from the tropics to the Southern Ocean. Measurements from the Gulf of Mexico (Yingling et al., 2021) were unique in that nutrient concentrations and uptake rates were not measured at precisely the same depths or stations. Coincident values were determined by calculating trends in depth via linear interpolation (Fig. S4). These data are available in Data Set S3 (Buchanan, 2024).

Ammonia oxidation rates data from experiments involving pH changes were acquired directly from the papers presenting the results (Beman et al., 2011; Huesemann et al., 2002; Kitidis et al., 2011) by extraction from the text (where values were given) and from figures using the WebPlotDigitizer tool (https://automeris.io/WebPlotDigitizer/, last access: 19 September 2022). Changes in ammonia oxidation rates were normalized to a pH of 8 (Fig. S1). These data are available in Data Set S4 (Buchanan, 2024).

2.4 Phytoplankton relative abundance data

Tara Oceans expeditions between 2009 and 2013 performed a worldwide sampling of plankton in the upper layers of the ocean (Pierella Karlusich et al., 2020). We mined the 18S rRNA gene (V9 region) metabarcoding data set (Ibarbalz et al., 2019; de Vargas et al., 2015) by retrieving the operational taxonomic units (OTUs) assigned to eukaryotic phytoplankton from samples obtained from 144 stations (https://doi.org/10.5281/zenodo.3768510, last access: 2 September 2022). Barcodes with greater than 85 % identity to phytoplankton sequences in reference databases were selected. The total diatom barcode reads in each sample was normalized to the barcode read abundance of eukaryotic phytoplankton. We exclusively used the data sets corresponding to surface samples (5–9 m depth) because of greater sampling coverage in the Tara Oceans data set, which accesses a broad range of NH${}_{\mathrm{4}}^{+}$ : DIN ratios spanning many ocean biomes/provinces.

In addition, we analyzed the metagenomic read abundances for the single-copy photosynthetic gene psbO, an approach that covers both cyanobacteria and eukaryotic phytoplankton and provides a more robust picture of phytoplankton cell abundances than rRNA gene methods (Pierella Karlusich et al., 2023). We retrieved the abundance tables from samples obtained from 145 stations (https://www.ebi.ac.uk/biostudies/studies/S-BSST761, last access: 2 September 2022).

2.5 Statistical analyses

We explored the environmental drivers of change in phytoplankton relative abundance data (provided by Tara Oceans) with generalized additive models (GAMs) using the mgcv package in R (Wood, 2006) structured as

$$\begin{array}{}\text{(6)}& Y=\mathit{\alpha }+s_{\mathrm{1}}\left(x_{\mathrm{1}}\right)+s_{\mathrm{2}}\left(x_{\mathrm{2}}\right)+\mathrm{\dots }+s_n\left(x_n\right)+\mathit{\epsilon },\end{array}$$

where Y is the predicted response, α is the intercept, s_n(x_n) represents a smooth function (specifically the nth thin-plate spline) fitted to the nth predictor variable x_n and ε is the model error. Thin-plate splines are flexible and widely used as a smoothing method within GAMs that allow for non-linear relationships between predictors and response variables and do not require specificity around a functional form. They are well suited to handling ecological data where relationships are often non-linear and non-parametric. Predictor variables were mixed-layer depth (m), phosphate (µM), silicate (µM), dissolved iron (µM) and the NH${}_{\mathrm{4}}^{+}$ : DIN ratio. Mixed-layer depth, phosphate and silicate were measured in situ at the sample locations of Tara Oceans, while dissolved iron and NH${}_{\mathrm{4}}^{+}$ : DIN ratios were provided by the model at the same location and month of sampling, since measurements of these properties are scarce. In addition, phosphate and silicate concentrations were available as interpolated products from the World Ocean Atlas (Garcia et al., 2019). An alternative estimate of NH${}_{\mathrm{4}}^{+}$ : DIN ratios was provided by the Darwin model (Follows et al., 2007). Predictor variables from models and World Ocean Atlas were extracted at the locations and months of sampling, and different combinations of in situ and modeled variables were used to build GAMs. Mixed-layer depth, nutrients (phosphate, silicate and NH${}_{\mathrm{4}}^{+}$ : DIN) and the relative abundance of phytoplankton taxa were log₁₀-transformed prior to model building to ensure homogeneity of variance.

Before model testing, we calculated the variance inflation factors (VIFs) of independent variables to avoid multi-collinearity. All covariate VIFs were <3, which indicates minimal multicollinearity. GAMs were computed using a low spline complexity (k=3) that prevented overfitting and constrained the smooth functions represent only broad-scale trends in the data. We fit GAMs using all predictors (full model) and then assessed the deviance explained by each predictor by fitting subsequent GAMS with each predictor in isolation and by removing the predictor in question from the full model. The significance of a predictor was assessed by applying a smoothing penalty to only that predictor in the full model. Diagnostic plots were assessed visually, and predictive capacity was assessed via the percent of deviance explained by the model.

A two-sided Mann–Whitney U test was used to test for differences between the two distributions of diatom relative abundance separated by NH${}_{\mathrm{4}}^{+}$ : DIN ratios <4 % and >4 %. The 4 % threshold was used because it split the data set in half and aligned with the point at which primary production transitioned from mostly new (NO${}_{\mathrm{3}}^{-}$-fueled) to regenerated (NH${}_{\mathrm{4}}^{+}$-fueled). This non-parametric test (performed with the scipy package in Python) returned highly significant two-sided p values (p<0.0001) as indicated by ***.

3 Results and discussion

3.1 Assessment of modeled NH${}_{\mathrm{4}}^{+}$ and NH${}_{\mathrm{4}}^{+}$ : DIN

Concentrations of 0.1 µM NH${}_{\mathrm{4}}^{+}$ or greater exist over continental shelves and in regions of strong mixing with high rates of primary production and subsequent heterotrophy. This accumulation of NH${}_{\mathrm{4}}^{+}$ in productive regions is reproduced by our model (Fig. 3a). In these eutrophic systems, high NH${}_{\mathrm{4}}^{+}$ co-occurs with high NO${}_{\mathrm{3}}^{-}$ concentrations, so NH${}_{\mathrm{4}}^{+}$ makes a small contribution to total DIN (Fig. 3b). These regions include the eastern tropical Pacific, eastern boundary upwelling systems, the northwest Indian Ocean, the subpolar gyres and the Southern Ocean (although we note that the model underestimates NH${}_{\mathrm{4}}^{+}$ concentrations in the Southern Ocean). In contrast, low NH${}_{\mathrm{4}}^{+}$ concentrations of less than 0.05 µM pervade the oligotrophic gyres of the lower latitudes. As these regions also display very low NO${}_{\mathrm{3}}^{-}$ concentrations, NH${}_{\mathrm{4}}^{+}$ makes up a much higher fraction of total DIN in both the observations and our model, with the NH${}_{\mathrm{4}}^{+}$ peak occurring deeper in the water column (Fig. S2).

Eutrophic upwelling systems and oligotrophic waters differed in the major sinks of NH${}_{\mathrm{4}}^{+}$ (Fig. 3c), consistent with available observations and constraints from theory. The major difference was that ammonia oxidation represented 49 ± 29 % (mean ± standard deviation) of NH${}_{\mathrm{4}}^{+}$ sinks in eutrophic waters (here defined by surface nitrate >1 µM), but this dropped to 32 ± 9 % in oligotrophic systems, where assimilation of NH${}_{\mathrm{4}}^{+}$ became more important. Measured rates of ammonia oxidation showed a positive relationship with surface NO${}_{\mathrm{3}}^{-}$ concentrations, and this was reproduced by the model (Fig. S3), indicating that ammonia oxidation was indeed a greater proportion of the overall NH${}_{\mathrm{4}}^{+}$ budget in eutrophic regions. In agreement, isotopic methods have shown that the bulk of nitrogen assimilated by phytoplankton in oligotrophic waters is recycled (Eppley and Peterson, 1979; Fawcett et al., 2011; Klawonn et al., 2019; Van Oostende et al., 2017; Wan et al., 2021), implying that most nitrogen cycling occurs without ammonia oxidation. Our model reproduces this feature of oligotrophic systems (Fig. 3c). Overall, the model shows good fidelity to the available observations of NH${}_{\mathrm{4}}^{+}$ concentrations, NH${}_{\mathrm{4}}^{+}$ : DIN ratios and rates of NH${}_{\mathrm{4}}^{+}$ cycling that we compiled for this study (Fig. 3; Figs. S2–S3). Meanwhile, nitrogen fixation and anammox had very minimal contributions to NH${}_{\mathrm{4}}^{+}$ budgets on the global scale.

3.2 Future enrichment of NH${}_{\mathrm{4}}^{+}$ in the ocean and its drivers

By the end of the 21st century (2081–2100), NH${}_{\mathrm{4}}^{+}$ : DIN is projected to increase in over 98 % of the photosynthetically active zone, where phytoplankton biomass exceeds 0.1 mmol C m⁻³ (Fig. 4a). On average (± standard deviation), the fraction of DIN present as NH${}_{\mathrm{4}}^{+}$ increased by 6 ± 6 % from a preindustrial average of 11.5 ± 11.0 % to 17.5 ± 14 %, with enrichment exceeding 20 % in regions with pronounced DIN gradients, such as at the boundary between eutrophic and oligotrophic regimes. The enrichment of NH${}_{\mathrm{4}}^{+}$ caused an expansion of regenerated production across the ocean such that NH${}_{\mathrm{4}}^{+}$ overtook NO${}_{\mathrm{3}}^{-}$ as the main nitrogen substrate for phytoplankton growth in an additional 10 % (73 % to 83 %) of the ocean's area. Regenerated production also increased as a proportion of net primary production from 60 % to 63 %. The greatest changes occurred within the 21st century (Fig. 4b), indicating a direct relationship between the severity of climate change and the magnitude of NH${}_{\mathrm{4}}^{+}$ enrichment within DIN.

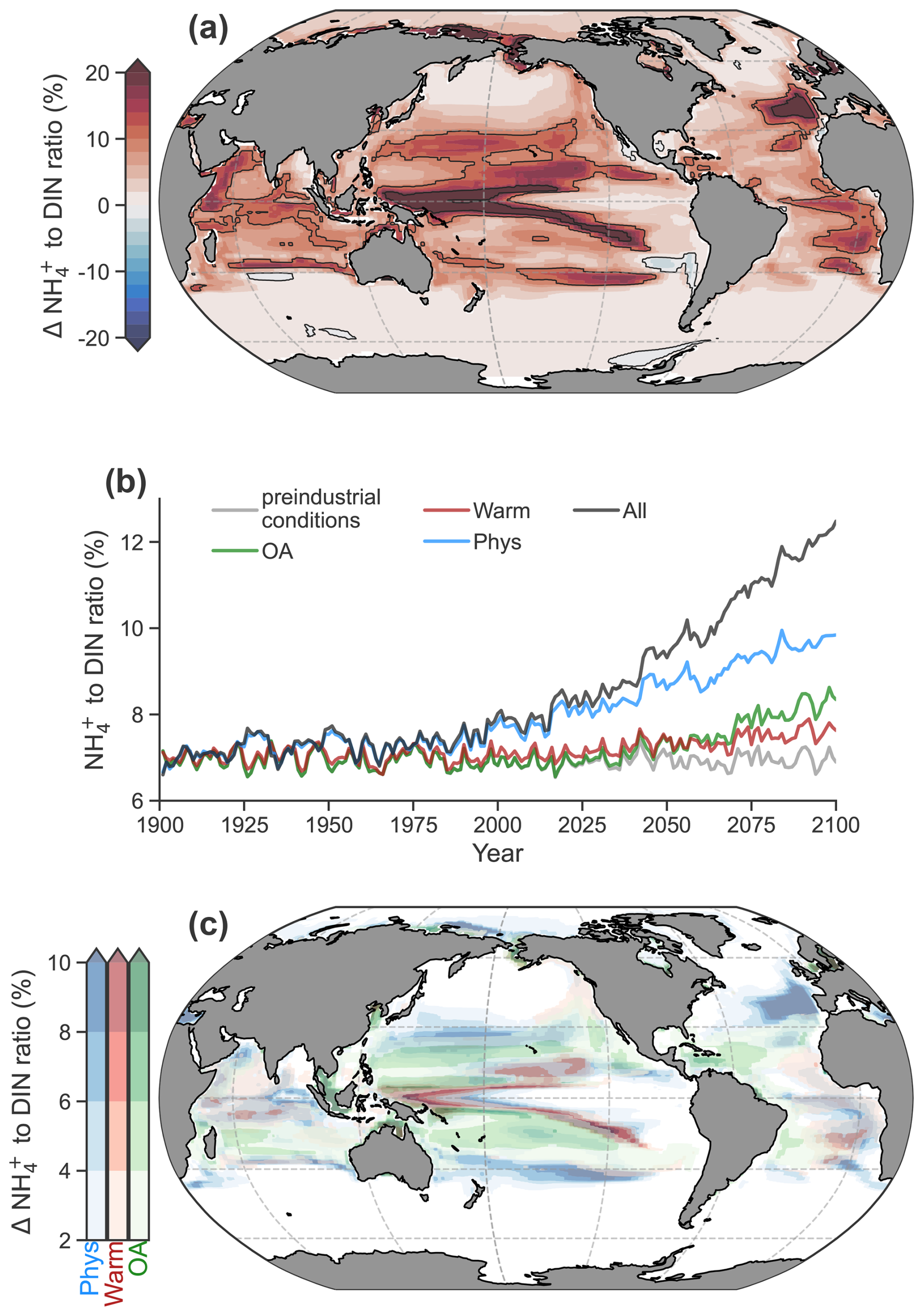

Figure 4 Anthropogenic impacts on the NH${}_{\mathrm{4}}^{+}$ to DIN ratio in a high-emissions scenario within the photosynthetically active zone. (a) The difference in the average NH${}_{\mathrm{4}}^{+}$ to DIN ratio at the end of the 21st century (2081–2100) with all anthropogenic impacts. (b) Global mean trends in the average NH${}_{\mathrm{4}}^{+}$ to DIN ratio in the different experiments: preindustrial control (grey), ocean acidification (OA; green), warming on metabolic rates (Warm; red), physical changes (Phys; blue) and all effects (All; black) according to the RCP8.5 climate change scenario. (c) Increases in the average NH${}_{\mathrm{4}}^{+}$ to DIN ratio due to physical changes (blue), effect of warming on metabolic rates (red) and ocean acidification on ammonia oxidation (green) from a multiple stressor perspective.

Physical changes, a warming-induced stimulation of microbial metabolism and ocean acidification all played a role in increasing NH${}_{\mathrm{4}}^{+}$ : DIN. Among these factors, physical changes had the largest contribution, accounting for 55 % of future trends (Fig. 4b). Physical changes decreased DIN to cause increases in NH${}_{\mathrm{4}}^{+}$ : DIN in many regions (Fig 4c; Fig. S5) and occurred either through reduced physical supply (e.g., North Atlantic; Whitt and Jansen, 2020) or increased demand and export of organic nitrogen in regions experiencing an increase in primary production due to losses in sea ice and increases in light (e.g., Arctic; Comeau et al., 2011).

Ocean acidification, responsible for 25 % of the NH${}_{\mathrm{4}}^{+}$ : DIN increases, increased NH${}_{\mathrm{4}}^{+}$ : DIN ubiquitously, but it had the greatest effect in oligotrophic settings where DIN concentrations were lower and minimal effects in eutrophic regions (Fig 4c; Fig. S5). We do note, however, that there is much uncertainty in the relationship between pH and ammonia oxidation rates (Bayer et al., 2016; Kitidis et al., 2011). To accommodate some of this uncertainty, we performed an idealized experiment with a weaker relationship between pH and ammonia oxidation that still fit the measurements well but that enforced a 10 % decline in ammonia oxidation per 0.1 pH decline rather than 20 % (Fig. S6). This reduced the influence of acidification by 10 % or more and increased the contribution of the other stressors (Fig. S6). The effect of pH decline was, however, only influential to NH${}_{\mathrm{4}}^{+}$ : DIN ratios in the subtropical gyres where NH${}_{\mathrm{4}}^{+}$ : DIN ratios were already high. Thus, whether pH declines have a strong or weak effect on ammonia oxidation did little to change NH${}_{\mathrm{4}}^{+}$ : DIN ratios in eutrophic regions where NO${}_{\mathrm{3}}^{-}$ is abundant and where diatoms represent a larger proportion of the phytoplankton community and where, coincidentally, shifts from low to higher NH${}_{\mathrm{4}}^{+}$ : DIN would have the greatest impact on community composition.

Warming stimulated the nutrient demand of phytoplankton, which reduced DIN, a mechanism consistent with the effects of temperature on marine microbial recycling (Cherabier and Ferrière, 2022). While its global contribution was small at 13 % (Fig. 4b), the stimulation of microbial metabolism had important effects at the boundaries of NO${}_{\mathrm{3}}^{-}$-rich regions by contracting their areal extent, turning previously NO${}_{\mathrm{3}}^{-}$-rich waters to NO${}_{\mathrm{3}}^{-}$-poor waters (Fig. 4c; Fig. S5). Altogether, the individual contributions of physical change, acidification and stimulated metabolism diagnosed via our sensitivity experiments explained 93 % of the full change in NH${}_{\mathrm{4}}^{+}$ : DIN, indicating that the different drivers had small interactive effects that drove NH${}_{\mathrm{4}}^{+}$ : DIN only slightly higher than their linear combination.

3.3 Simulated impacts on phytoplankton community composition

Our climate change simulations projected a future decline in the relative abundance of diatoms globally by an average of 3 %, while local declines in the subantarctic, tropical, North Atlantic, North Pacific and Arctic oceans sometimes exceeded 20 % (Fig. 5a, b; Fig. S7). Our sensitivity experiments enabled an attribution of the major drivers, at least in a coarse-grained sense. At a global scale, the loss of diatom representation within marine communities in our model was driven by a combination of stimulated microbial metabolism (60 % of full response in experiment “All”) and physical changes (40 % of full response in experiment “All”), while ocean acidification had negligible effects (Fig. 5c; Fig. S7). Ocean acidification had negligible effects because it largely raised NH${}_{\mathrm{4}}^{+}$ : DIN ratios in oligotrophic subtropical gyres where diatoms were already of low proportion (Fig. 4c; Fig. S5). Averaged across the low-latitude ocean (40° S–40° N), diatoms also declined by an average of 3 % driven by the same factors (60 % microbial metabolism and 40 % physical changes), while more dramatic but very regional declines of diatoms near or exceeding 20 % were due primarily to physical changes (Fig. S7). These global and regional declines have been predicted previously and are widely accepted to be due to a decline in bulk nutrient availability in the upper ocean (Bopp et al., 2005), although the large effect of stimulated metabolism here suggests that top-down grazing pressure, which is accelerated by warming, may also play a role (Chen et al., 2012; Rohr et al., 2023). That said, stimulating metabolism also increases phytoplankton nutrient demand, which eventually leads to greater DIN limitation (Cherabier and Ferrière, 2022). We indeed appreciate that the reduction of diatoms from phytoplankton communities as simulated by models is due to nutrient losses, in particular declines in NO${}_{\mathrm{3}}^{-}$ (Kwiatkowski et al., 2020), and our simulations here, at least indirectly, are no different, since both nanophytoplankton and diatom biomass declined.

Figure 5 Impact of NH${}_{\mathrm{4}}^{+}$ enrichment within DIN on diatoms. (a) Mean change (Δ) in the absolute concentration of diatoms and (b) relative abundance of diatoms (%) by the end of the 21st century (2081–2100) as predicted by the control run of the ocean–biogeochemical model (model_control) under the RCP8.5 scenario and averaged over the photosynthetically active zone. (c) Global mean change in diatom relative abundance due to physical (circulation + light) changes (blue), warming effects on metabolic rates (red), ocean acidification effect on ammonia oxidation (green) and all stressors (black) for model_control. (d) The same as in (a) but for model_compete, where the NH${}_{\mathrm{4}}^{+}$ growth limitation of the diatom PFT was made equal to the nanophytoplankton PFT. (e) The same as in (b) but for model_compete. (f) The same as in (c) but for model_compete. The shading shows the change between model_control and model_compete. Contours represent ± changes of 0.1, 0.3 and 0.5 mmol C m⁻³ and 4 %, 12 % and 20 %.

However, explicitly representing competition for NH${}_{\mathrm{4}}^{+}$ can provide a more nuanced view of why a decline in NO${}_{\mathrm{3}}^{-}$ might cause a decline in diatom relative abundance or shifts in any phytoplankton taxa for that matter. We cast this view specifically in terms of an increase in competition for NH${}_{\mathrm{4}}^{+}$ and base this on two lines of evidence. First, a decline in the standing stock of DIN does not mean a decrease in its supply. In fact, rapid rates of primary production are measured in nutrient-poor waters, which implies rapid recycling and thus a rapid resupply of DIN in the form of NH${}_{\mathrm{4}}^{+}$ (Bender and Jönsson, 2016; Matsumoto et al., 2016; Rii et al., 2016; Yang et al., 2019). This is akin to the bathtub analogy, where different volumes (i.e, nutrient concentrations) can result by varying the inflow (i.e., recycling) even when the outflow is constant (productivity). Second, we take at face value the lower measured NH${}_{\mathrm{4}}^{+}$ affinities of diatoms compared with other phytoplankton (Litchman, 2007; Litchman et al., 2007), and we account for this competitive disadvantage explicitly in our ocean biogeochemical model (Fig. 2). The combination of intense competition for rapidly supplied NH${}_{\mathrm{4}}^{+}$ and the poor competitive ability of diatoms for NH${}_{\mathrm{4}}^{+}$ suggests that when NO${}_{\mathrm{3}}^{-}$ concentrations decline, competition for NH${}_{\mathrm{4}}^{+}$ increases, and declines in diatom relative abundance follow.

We recognize that other influential bottom-up and top-down stressors, such as growth limitation by other nutrients (Taucher et al., 2022), including NO${}_{\mathrm{3}}^{-}$ (Fig. 2), shifts in the light environment, and/or grazing pressure, which is also temperature-dependent, are also influential to structuring phytoplankton communities (Brun et al., 2015; Margalef, 1978; Taucher et al., 2022). The fact that a warming-induced stimulation of metabolism was linked to 60 % of the global mean diatom declines, for instance, could be due to a wide array of factors, not just the resulting increase in NH${}_{\mathrm{4}}^{+}$ : DIN. Furthermore, we acknowledge that if a negative correlation between NH${}_{\mathrm{4}}^{+}$ : DIN and diatom relative abundance exists, in our model or any observations, this negative correlation may be confounded by covariates. If other factors are covarying with the NH${}_{\mathrm{4}}^{+}$ : DIN ratio but are more influential to diatom relative abundance, this may lead to the erroneous attribution of a causative relationship between diatom relative abundance and NH${}_{\mathrm{4}}^{+}$ : DIN ratios (i.e., a false positive).

Removing diatoms' competitive disadvantage for NH${}_{\mathrm{4}}^{+}$ (i.e., equally competitive for NH${}_{\mathrm{4}}^{+}$) in our experiments with “model_compete” (see Sect. 2.2.2 in the methods) mitigated the losses of diatom representation within future phytoplankton communities by 70 % compared to the full response in the “All” experiment with model_control (Fig. 5d–f). Losses in NO${}_{\mathrm{3}}^{-}$ still occurred in these experiments, and these losses in NO${}_{\mathrm{3}}^{-}$ caused declines in phytoplankton productivity and biomass, including both nanophytoplankton and diatoms everywhere outside of the polar regions (Figs. S7–S8). In the default model (model_control) diatoms experienced greater declines than nanophytoplankton, causing declines in their relative abundance. Importantly though, the global mean decline in diatom relative abundance in model_compete was only 0.9 % by 2081–2100 compared to 3 % in model_control (Fig. 5c, f). Physical changes, while important regionally, no longer exerted a global negative effect on their total nor relative abundance (blue line in Fig. 5f), while the negative effect of elevated microbial metabolism on relative abundance was ameliorated by 25 % (Fig. 5f; Figs. S7–S8). In some areas diatoms even showed increased total and/or relative abundance where previously there were losses, including the Arctic, the tropical Pacific, the Arabian Sea, the North Atlantic and the southern subtropics (Fig. 5d, e; Fig. S8). Outside of the Southern Ocean and the eastern boundary upwelling systems, physical changes that tended to reduce DIN concentrations now favored diatoms, while elevated metabolism now had positive, rather than negative, effects in the tropical Pacific.

These experiments provide some potential insights into the factors controlling diatom niches in the global pelagic ocean. Regions where model_control and model_compete show similar changes are regions where other factors besides competition for NH${}_{\mathrm{4}}^{+}$ determine diatom competitiveness. A good example is the Southern Ocean, where iron, light and silicic acid are the major controls on diatom productivity and phytoplankton community composition (Boyd et al., 1999, 2000; Krumhardt et al., 2022; Llort et al., 2019). Accordingly, there is close correspondence in the model, evident by the matching outcomes of model_control and model_compete. However, where model_control and model_compete predicted contrasting outcomes, the form of nitrogen, specifically NH${}_{\mathrm{4}}^{+}$ : DIN, and thus the intense competition for NH${}_{\mathrm{4}}^{+}$ exerted a dominant control.

3.4 Can we build confidence using observations?

So far, we have projected widespread increases in NH${}_{\mathrm{4}}^{+}$ : DIN in a high-emissions scenario and determined that a large fraction of the projected declines in diatom relative abundance are due to their competitive exclusion by other phytoplankton in regions where NH${}_{\mathrm{4}}^{+}$ becomes more important as a nitrogen source. However, what do the observations tell us? Can this negative relationship between NH${}_{\mathrm{4}}^{+}$ : DIN and diatom relative abundance be observed at a global scale? Evidence for local extirpation of diatoms by taxa more competitive for NH${}_{\mathrm{4}}^{+}$ has been reported by many studies (Andersen et al., 2020; Carter et al., 2005; Donald et al., 2013; Glibert et al., 2016a; Örnólfsdóttir et al., 2004; Trommer et al., 2020), but is the relationship strong enough to play out across the wide biogeographic regimes in the ocean? Furthermore, is the parameterization of our model showcased in Fig. 2 realistic? Does it reproduce observed shifts from new to regenerated production as NH${}_{\mathrm{4}}^{+}$ increases?

3.4.1 NH${}_{\mathrm{4}}^{+}$ : DIN and regenerated production

We address the latter question first. If the model cannot reproduce observed shifts from NO${}_{\mathrm{3}}^{-}$ to NH${}_{\mathrm{4}}^{+}$-fueled primary production as NH${}_{\mathrm{4}}^{+}$ : DIN changes, then we might be less confident in its projected increases in regenerated production and by extension less confident in the magnitude of projected declines in diatom relative abundance presented above. We collated parallel observations of NH${}_{\mathrm{4}}^{+}$ : DIN ratios and rates of new and regenerated production from studies spanning tropical to polar environments (Fernández et al., 2009; Joubert et al., 2011; Mdutyana et al., 2020; Metzler et al., 1997; Philibert, 2015; Rees et al., 2006; Thomalla et al., 2011; Wan et al., 2018; Yingling et al., 2021). Such coincident measurements are rare. Nonetheless, this compilation was able to show the expected positive relationship between the NH${}_{\mathrm{4}}^{+}$ : DIN ratio and the proportion of primary production that is regenerated (Fig. 6). While this relationship is expected, in that high NH${}_{\mathrm{4}}^{+}$ to DIN ratios should coincide with high rates of regenerated primary production, the functional form of this relationship is important yet not well known. The compilation of studies reveals that it is sharp and non-linear, and here we describe it using a fractional-order Monod function with an optimal half-saturation constant of 0.2 ± 0.03 µM^0.5 and an exponent of 0.5 ± 0.05 (Pearson's correlation = 0.69; R² (coefficient of determination) = 0.47; as compared to a linear relationship with an R² (coefficient of determination) $=-\mathrm{1.13}$). This quadratic function predicts that regenerated production contributes half of total net primary production when the standing stock of NH${}_{\mathrm{4}}^{+}$ is only 4 ± 3 % of total DIN. The data at hand therefore suggest that phytoplankton grow principally on NH${}_{\mathrm{4}}^{+}$ (regenerated production) and only transition to using NO${}_{\mathrm{3}}^{-}$ when NH${}_{\mathrm{4}}^{+}$ is substantially depleted to concentrations at or below 4 % of total DIN.

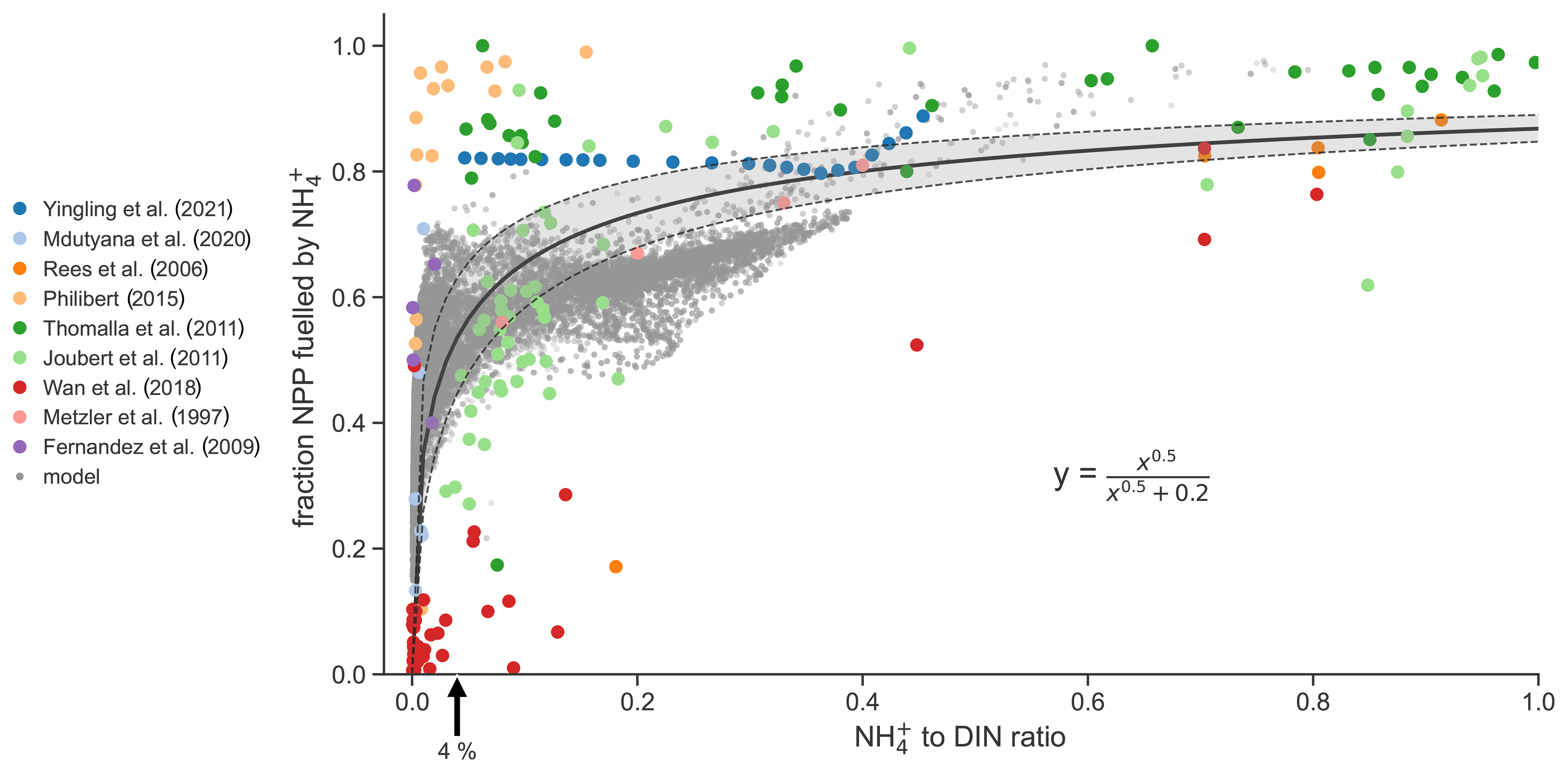

Figure 6 Coincident measurements of the NH${}_{\mathrm{4}}^{+}$ to DIN ratio and the fraction of net primary production (NPP) fueled by NH${}_{\mathrm{4}}^{+}$ from nine studies (colored dots) and as output by the ocean biogeochemical model run under preindustrial control conditions (grey dots). The black solid line is the best fit line to the observations and is described by the equation. Shading denotes 1 standard deviation.

A similarly sharp relationship emerged from our global-ocean biogeochemical model (Aumont et al., 2015) (grey dots in Fig. 6). This builds confidence in our modeled increases in regenerated production due to rising NH${}_{\mathrm{4}}^{+}$ : DIN ratios, but why did the model behave similarly to the observed relationship? In the model, all phytoplankton are parameterized to have higher affinities for NH${}_{\mathrm{4}}^{+}$ over NO${}_{\mathrm{3}}^{-}$, consistent with laboratory studies (Litchman, 2007; Litchman et al., 2007). Their growth is supported by NH${}_{\mathrm{4}}^{+}$ only until NO${}_{\mathrm{3}}^{-}$ becomes sufficiently abundant to allow for higher growth rates (Fig. 2). In the model, this transition from NH${}_{\mathrm{4}}^{+}$ to NO${}_{\mathrm{3}}^{-}$-fueled growth occurs at NH${}_{\mathrm{4}}^{+}$ : DIN ratios of roughly 0.1 for the diatom functional type and roughly 0.025 for the nanophytoplankton function type under typical conditions. Hence, our model represents accelerated growth on NO${}_{\mathrm{3}}^{-}$ in both phytoplankton function types but only at very low NH${}_{\mathrm{4}}^{+}$ : DIN ratios and thus reproduces the sharp functional form that is observed.

3.4.2 NH${}_{\mathrm{4}}^{+}$ : DIN and phytoplankton community composition

Next, we search for evidence of a relationship between NH${}_{\mathrm{4}}^{+}$ : DIN ratios and phytoplankton community composition in the global ocean. While evidence from many localized studies in freshwater, brackish and marine environments suggests that increasing NH${}_{\mathrm{4}}^{+}$ : DIN ratios have an effect on phytoplankton community composition, namely a negative effect on diatom relative abundance and a positive effect on cyanobacterial relative abundance (Berg et al., 2003; Carter et al., 2005; Donald et al., 2013; Fawcett et al., 2011; Klawonn et al., 2019; Van Oostende et al., 2017; Selph et al., 2021; Tungaraza et al., 2003; Wan et al., 2018), evidence for this relationship across the large scale of the global ocean is lacking. We used two proxies of phytoplankton relative abundance from the Tara Oceans global survey, 18S rRNA gene metabarcodes (de Vargas et al., 2015) and psbO gene counts (Pierella Karlusich et al., 2023), combined with NH${}_{\mathrm{4}}^{+}$ : DIN as predicted by our global-ocean biogeochemical model, to predict relative abundances of major phytoplankton taxa via generalized additive models (GAMs; see Methods).

Our analysis revealed that what has been observed at local scales is apparent in the global Tara Oceans data set. Essentially, elevated NH${}_{\mathrm{4}}^{+}$ : DIN was consistently associated with declines in diatom relative abundance (Fig. 7a). The negative relationship between NH${}_{\mathrm{4}}^{+}$ : DIN and diatom relative abundance was evident and significant in GAMs trained on both abundance proxies (18S rRNA and psbO gene counts), as well as when using different combinations of predictor variables: whether model-derived, in situ measurements, interpolated products (Garcia et al., 2019) or even when switching out NH${}_{\mathrm{4}}^{+}$ : DIN as predicted by our biogeochemical model with that provided by another (Follows et al., 2007) (Table S1). Importantly, the relationship between NH${}_{\mathrm{4}}^{+}$ : DIN and diatom relative abundance remained consistently negative and significant despite the combination of predictor variables, which builds confidence in the statistical relationship. This was not the case for other predictors (phosphate, silicate, dissolved iron and mixed-layer depth), which were prone to insignificance and/or sign changes depending on the combination of predictors used (Figs. S9–S13). NH${}_{\mathrm{4}}^{+}$ : DIN also offered good explanatory power for diatom abundance compared to the other predictor variables, explaining between 18 %–30 % of the deviance in the data for both 18S rRNA and psbO gene count data (Table S1).

Figure 7 Effects of NH${}_{\mathrm{4}}^{+}$ enrichment on diatom relative abundance. (a) Partial dependence plot from the generalized additive model (GAM) showing the relationship between the NH${}_{\mathrm{4}}^{+}$ to DIN ratio and the percent relative abundance of diatoms. When GAM residuals are positive, this suggests that diatoms do better than predicted by a GAM without the NH${}_{\mathrm{4}}^{+}$ : DIN ratio as a predictor and vice versa. Blue round markers and blue line fit are percent among eukaryotic phytoplankton (18S rRNA metabarcodes). Red star markers and red line fit are percent among all phytoplankton (psbO gene counts). Solid and dashed black lines are output from the ocean biogeochemical model (N=16 638) with and without competitive exclusion of diatoms for NH${}_{\mathrm{4}}^{+}$. The vertical dotted line delineates when NH${}_{\mathrm{4}}^{+}$ is 4 % of DIN, which aligns with the point at which community primary production switches from predominantly NO${}_{\mathrm{3}}^{-}$-fueled to NH${}_{\mathrm{4}}^{+}$-fueled (Fig. 6). The inset map shows the locations of Tara Oceans samples (N=144). (b) Boxplots of the raw partial residuals from panel (a) but separated either side of the 4 % NH${}_{\mathrm{4}}^{+}$ to DIN threshold for percent among eukaryotic phytoplankton (blue), all phytoplankton (red), the ocean biogeochemical model (solid black) and model without competitive exclusion of diatoms for NH${}_{\mathrm{4}}^{+}$ (dashed black). Whiskers correspond to the 5th and 95th percentiles. Tables on the right denote significant pair-wise differences (Mann–Whitney U) amongst data sets when NH${}_{\mathrm{4}}^{+}$ : DIN is less than 4 % (c), when it is more than 4 % (d) and when comparing <4 % with >4 % data sets (e).

We also saw some strong associations between NH${}_{\mathrm{4}}^{+}$ : DIN and the relative abundance of dinoflagellates, Prochlorococcus and chlorophytes (Table S2; Figs. S14–S15). Prochlorococcus was positively related to NH${}_{\mathrm{4}}^{+}$ : DIN, as expected, reflecting their superior affinity for NH${}_{\mathrm{4}}^{+}$ and dominance in oligotrophic gyres (Herrero et al., 2001; Litchman, 2007; Litchman et al., 2007; Matsumoto et al., 2016; Rii et al., 2016). The positive relationship between dinoflagellates and NH${}_{\mathrm{4}}^{+}$ : DIN within eukaryotic phytoplankton, but not in the psbO gene counts, likely reflects the inclusion of non-photosynthetic (i.e., heterotrophic) dinoflagellate lineages with the 18S metabarcoding method that are excluded from the psbO method (Pierella Karlusich et al., 2023) and the proliferation of these types within systems enriched in reduced nitrogen (Glibert et al., 2016b). Like diatoms, chlorophytes were negatively related to NH${}_{\mathrm{4}}^{+}$ : DIN. Interestingly, this is contrary to the outcomes of the freshwater studies that suggest a seasonal succession of increased chlorophyte concentrations as NH${}_{\mathrm{4}}^{+}$ concentrations increase following a diatom bloom on NO${}_{\mathrm{3}}^{-}$ (Andersen et al., 2020), as well as the high affinities that chlorophytes appear to have for NH${}_{\mathrm{4}}^{+}$ over NO${}_{\mathrm{3}}^{-}$ (Litchman, 2007; Litchman et al., 2007). However, the relative abundance of marine chlorophytes may also be affected by intense competition for NH${}_{\mathrm{4}}^{+}$ with cyanobacteria, which may have the competitive edge over small eukaryotes and push these taxa to niches with higher nutrient availability (Vannier et al., 2016). For chlorophytes, we therefore see a different relationship at the global scale compared to the local scale.

3.4.3 Building confidence in the model

To test whether the correct functional relationships emerge from our model, we performed the same GAM analysis that we performed in the previous section on diatom relative abundances predicted by our biogeochemical model. This model lacks a Prochlorococcus functional type and so does not allow us to comment on the relative abundance of this type but does ascribe its diatom functional type with a known competitive disadvantage for NH${}_{\mathrm{4}}^{+}$ relative to the nanophytoplankton functional type (Fig. 2). This means that at high NH${}_{\mathrm{4}}^{+}$ : DIN ratios (low NO${}_{\mathrm{3}}^{-}$) the nanophytoplankton type will always outcompete the diatom type.

As expected, the simulated diatom relative abundance was negatively related to NH${}_{\mathrm{4}}^{+}$ : DIN ratios (black line in Fig. 7a; deviance explained = 70 %; p value <0.001). Interestingly, the relationship was also strongly non-linear and not dissimilar to that seen in the Tara Oceans data, with rapid losses of diatoms as NH${}_{\mathrm{4}}^{+}$ : DIN became greater than 4 %. This threshold, where NH${}_{\mathrm{4}}^{+}$ becomes 4 % of total nitrogen stocks, aligned with the point at which primary production becomes dominated by regenerated production (Fig. 6). This showcases (1) the intense recycling of NH${}_{\mathrm{4}}^{+}$ in the marine environment and competition for this coveted nutrient, (2) how diatoms are outcompeted as less primary production is fueled by external NO${}_{\mathrm{3}}^{-}$ inputs, and (3) how diatoms are major contributors to new primary production in the ocean (Fawcett et al., 2011). Additional statistical analysis showed that on either side of this 4 % threshold the GAM predictions built from both the biogeochemical model and Tara Oceans data could not be statistically differentiated (Fig. 7b, c, d; Mann–Whitney U pair-wise tests). Both modeled and Tara Oceans data predicted similar values of diatom relative abundance within communities where NH${}_{\mathrm{4}}^{+}$ : DIN was less than 4 %, as well as in communities where NH${}_{\mathrm{4}}^{+}$ : DIN was greater than 4 % (Fig. 7b, e). Overall, the modeled and observed changes in diatom relative abundance associated with NH${}_{\mathrm{4}}^{+}$ : DIN appeared to be similar, at least statistically so. We stress that differences between the biogeochemical model and the Tara Oceans data no doubt exist. Nonetheless, the similarity between the model and the observations may mean that the negative relationship between NH${}_{\mathrm{4}}^{+}$ : DIN and diatom relative abundance originates from the same mechanism, specifically being a competitive disadvantage of diatoms for NH${}_{\mathrm{4}}^{+}$.

3.4.4 The indirect effect of NO${}_{\mathrm{3}}^{-}$

We fully acknowledge that NH${}_{\mathrm{4}}^{+}$ : DIN ratios covary strongly with NO${}_{\mathrm{3}}^{-}$ concentrations. Most of the projected increases in NH${}_{\mathrm{4}}^{+}$ : DIN we report here are due to circulation changes that limit NO${}_{\mathrm{3}}^{-}$ injection from subsurface waters into surface waters (Fig. S5). Also, our GAM analysis of the Tara Oceans data could easily be replicated by replacing the NH${}_{\mathrm{4}}^{+}$ : DIN ratio with NO${}_{\mathrm{3}}^{-}$ concentration as a key predictor. Indeed, this analysis showed similar results, with NO${}_{\mathrm{3}}^{-}$ being an equally strong predictor of diatom relative abundance as NH${}_{\mathrm{4}}^{+}$ : DIN. We therefore cannot discount a direct effect of NO${}_{\mathrm{3}}^{-}$ on diatom relative abundance in the Tara Oceans observations.

In our biogeochemical model, however, we can diagnose whether diatom relative abundance changes are directly due to competition for NO${}_{\mathrm{3}}^{-}$ or NH${}_{\mathrm{4}}^{+}$. This allows us to assess whether NO${}_{\mathrm{3}}^{-}$ concentration or the NH${}_{\mathrm{4}}^{+}$ : DIN ratio is more appropriate as a predictor of diatom relative abundance. The importance of NH${}_{\mathrm{4}}^{+}$ is exemplified by the fact that the negative relationship between NH${}_{\mathrm{4}}^{+}$ : DIN and diatom relative abundance was reversed in model_compete (black dotted line in Fig. 7a). Now positive rather than negative, this relationship differs statistically from that predicted from Tara Oceans data (Fig. 7b–e).

This suggests that competition for NH${}_{\mathrm{4}}^{+}$ directly controls diatom relative abundance in our model. We fully acknowledge that a scarcity of NO${}_{\mathrm{3}}^{-}$ is a major cause of NH${}_{\mathrm{4}}^{+}$ enrichment in our experiments because it drives competition for NH${}_{\mathrm{4}}^{+}$. However, we wish to emphasize that a potentially important mechanism of diatom decline in the community is due to their poor competitive ability for growth on NH${}_{\mathrm{4}}^{+}$, not directly because of decreases in NO${}_{\mathrm{3}}^{-}$. Decreases in NO${}_{\mathrm{3}}^{-}$ certainly affect diatom growth, but, in our model, they mostly do so indirectly by shifting the regime towards intense competition for NH${}_{\mathrm{4}}^{+}$. Given the statistical similarity between the in situ (Tara Oceans) and in silico (model_control) relationships (Fig. 7) and the dissimilarity in model_compete, this points to NH${}_{\mathrm{4}}^{+}$ : DIN as a key underlying driver of diatom relative abundance in the world ocean.

4 Conclusions

Here we have identified a potential enrichment of NH${}_{\mathrm{4}}^{+}$ in over 98 % of the upper ocean (specifically the photosynthetically active zone) by the end of the 21st century under a high-emissions scenario (Riahi et al., 2011). We expect, given the evidence at hand, a widespread increase in NH${}_{\mathrm{4}}^{+}$-fueled primary production and shifts in community composition, specifically some negative effects on the competitive niche of diatoms and any other taxa that could be considered NO${}_{\mathrm{3}}^{-}$ specialists and/or poor competitors for NH${}_{\mathrm{4}}^{+}$. These projections do not differ much from previous work (Bopp et al., 2005), but we recast the attribution of change in terms of competitive exclusion for NH${}_{\mathrm{4}}^{+}$, rather than bulk nutrient declines. In those places where nitrogen availability limits growth, diatoms suffer displacement by phytoplankton taxa with a greater affinity (i.e., competitive edge) for NH${}_{\mathrm{4}}^{+}$. The warming and physical changes that we simulate herein, and which drive NH${}_{\mathrm{4}}^{+}$ enrichment and diatom displacement, are expected (Bindoff et al., 2019), although the high-emissions scenario is now considered less likely than more moderate climate change scenarios. That said, we draw the link between the severity of climate change and the degree of NH${}_{\mathrm{4}}^{+}$ enrichment such that our results can be scaled to consider more moderate scenarios. Also, the link between NH${}_{\mathrm{4}}^{+}$ enrichment and diatom displacement by more competitive phytoplankton has been demonstrated in numerous previous, albeit localized, studies, and here we demonstrate that it appears also on the global scale using the Tara Oceans data set.

Fully elaborating on the link between environmental change and NH${}_{\mathrm{4}}^{+}$ enrichment also rests on many processes that are still not fully understood. For instance, an observed increase in summertime mixed-layer depths may counter the effect of a strengthening pycnocline (Sallée et al., 2021) to increase NO${}_{\mathrm{3}}^{-}$ injection into the upper ocean as the ocean continues to respond to climate change. This might reduce competition for NH${}_{\mathrm{4}}^{+}$. Another good example is the incomplete understanding of the microbial loop and how it responds to environmental change. The microbial loop is driven by heterotrophic bacteria, which resupply NH${}_{\mathrm{4}}^{+}$ through mineralization of organic matter (Fig. 1). Increases in microbial metabolism were an important driver of the community shifts we projected. Yet the representation in our model is simplistic. In fact, the microbial loop is not yet incorporated in detail within earth system models in general (Levine et al., 2025), but its response to warming can either elevate or depress regenerated production depending on assumptions made about bacterial physiology and function (Cherabier and Ferrière, 2022). The future balance of reduced (NH${}_{\mathrm{4}}^{+}$ and organic forms) to oxidized nitrogen and its impact on the state of marine ecosystems hinges on a suite of unexplored feedbacks between the marine microbial loop and environmental change. There is much work and research to be done in this space.

Many studies have identified that the open-ocean habitat may be becoming more challenging for diatoms and more favorable for small eukaryotes and cyanobacteria. Reductions in NO${}_{\mathrm{3}}^{-}$ supply to the sunlit surface ocean have long been known as an important factor in the predicted loss of diatoms (Bopp et al., 2005). Meanwhile, iron stress appears to be growing in the diatom-dominated Southern Ocean (Ryan-Keogh et al., 2023) and fluctuates strongly across climatic modes of variability (Browning et al., 2023), silicic acid limitation is expected across the ocean in response to ocean acidification (Taucher et al., 2022), and growing nitrogen limitation may make diatoms less adaptable as temperatures rise (Aranguren-Gassis et al., 2019). In this study, we add to these potential stressors of diatoms by highlighting the form of DIN. As before, NO${}_{\mathrm{3}}^{-}$ losses are important, but we emphasize that greater competition for NH${}_{\mathrm{4}}^{+}$ because of circulation changes and increased recycling, as well as the potential for a more nitrogen-limited Arctic, may further disadvantage diatoms and is expected to give cyanobacteria and other taxa with higher affinities for NH${}_{\mathrm{4}}^{+}$ a competitive edge. Furthermore, diatoms may be more susceptible to increases in competition for NH${}_{\mathrm{4}}^{+}$ in temperate waters, as cooler conditions appear to amplify their growth dependence on NO${}_{\mathrm{3}}^{-}$ (Glibert et al., 2016b; Parker and Armbrust, 2005), which is an additional mechanism not incorporated in this study. Notwithstanding the potential for evolution, these and other rapid changes may reduce diatom diversity (Lampe et al., 2018; Sugie et al., 2020), making diatoms susceptible to extirpation (Cael et al., 2021). If this is realized, ocean ecosystems look to shift towards longer, less productive food chains underpinned by smaller, slower-growing phytoplankton (Sommer et al., 2002), with severe implications for the health of important fisheries and carbon storage. Further work is urgently needed to understand how the marine nitrogen cycle and key marine phytoplankton groups might respond to these growing challenges in an integrated manner.
