Technical note: assessing pretreatment approaches for serial pyrolysis-oxidation analysis of sedimentary organic carbon

Ramped-temperature pyrolysis/oxidation (RPO) analysis has emerged as a powerful analytical technique for characterizing sedimentary organic carbon (OC) provenance and reactivity, bridging the knowledge gap between bulk carbon isotopic measurement and molecular-level biomarker analyses. While acid pretreatment is routinely employed to remove carbonates prior to RPO analysis, its methodological impacts remain poorly constrained compared to other geochemical measurements (e.g., δ¹³C). Given the widespread utilization of RPO analysis in recent studies, a comparative examination of pretreatment conditions is timely to ensure unbiased acquisition of thermochemical results. This study systematically evaluates how decarbonation protocols influence RPO results through comparative analyses of different pretreatment approaches. We demonstrate that both acidification method (rinsing vs. fumigation) and HCl concentration significantly affect RPO thermograms, with observed differences attributed to the alteration of organic-inorganic associations and selective leaching of acid-soluble OC. Generally, results from diluted acid rinsing are more similar to the raw material. Based on comprehensive testing, we recommend diluted (i.e., 1 N) HCl rinsing with moderate reaction times (∼ 12 h) as the optimal pretreatment conditions for most samples, while acknowledging that specific sample characteristics (e.g., organic lean, protein rich) may necessitate adjustments to the protocol. These finding highlight the importance of pretreatment conditions in thermochemical decomposition studies.

1 Introduction

Organic geochemical proxies serve as powerful tools for reconstructing natural processes across modern and ancient environments. Current approaches primarily utilize either bulk analyses (e.g., organic carbon contents, δ¹³C_org) that provide integrated sample information, or molecular biomarkers (e.g., fatty acids, sterols) that offer source-specific insights. Bridging these scales, the ramped-temperature pyrolysis/oxidation (RPO) technique has emerged as a transformative approach that interprets organic carbon (OC) as a thermal reactivity continuum, effectively deconvoluting bulk signatures into component fractions (Cui et al., 2022; Hemingway et al., 2017a; Rosenheim et al., 2008). The RPO analysis progressively converts OC to CO₂ across a temperature gradient, with thermochemically labile OC being decomposed at lower temperatures and refractory OC at higher temperatures. Thus, OC of different sources (e.g., biogenic OC, rock-derived OC) and thermochemical behaviors can be, in part, discriminated in RPO analyses. This offers a window to “unfold” bulk C data to two-dimensional configurations characterized by OC species with relative quantities. This capability has significantly advanced studies of sediment chronology (Rosenheim et al., 2008, 2013; Venturelli et al., 2020), regional OC dynamics (Bao et al., 2018; Hemingway et al., 2018; Maier et al., 2025; Zhang et al., 2017; Zhang et al., 2022), and global organo-mineral interactions (Cui et al., 2022; Hemingway et al., 2019).

Generally, the removal of inorganic carbon through decarbonation represents a critical pretreatment step for RPO analysis of sedimentary OC. Currently, decarbonation approaches include two different methods. Acid rinsing involves direct addition of hydrochloric acid (HCl) solution to particulates in the aqueous phase followed by subsequent rinses with Milli-Q water, while acid fumigation features direct exposure of particulates to HCl acid in the vaporous phase (Harris et al., 2001). Acid rinsing may vary in concentrations of HCl being applied (Kim et al., 2016; Pasquier et al., 2018), while acid fumigation in some cases is followed by water rinsing to remove chlorides (Hemingway et al., 2017a). These various acidification pretreatments can yield diverse impacts on OC compositions (Brodie et al., 2011; Komada et al., 2008; Lohse et al., 2000; Schlacher and Connolly, 2014). Specifically, acid rinsing can potentially result in OC dissolution/hydrolysis (Fujisaki et al., 2022; Galy et al., 2007; Serrano et al., 2023), whereas acid fumigation is thought to alter organo-mineral interactions (Plante et al., 2013) and is unsuitable for samples rich in carbonates (Hedges and Stern, 1984). Furthermore, the choice between freeze-drying and oven drying introduces additional variability in OC composition (De Lecea et al., 2011; Kim et al., 2016; McClymont et al., 2007). Despite widespread examination deployed for bulk parameters, systematic evaluation of pretreatment-induced artifacts remains notably lacking for RPO analysis (Bao et al., 2019; Hemingway et al., 2019). This knowledge gap necessitates comprehensive investigation of decarbonation pretreatments given the increasing adoption of RPO technique in organic geochemistry studies.

In this study, we systematically evaluate how pretreatment conditions influence RPO results by testing a suite of variables. Variables of consideration include acidification methods (rinsing vs. fumigation), concentrations of hydrochloric acid (1, 2, 4, 6 and 12 N for fumigation), reaction durations (6, 12 and 24 h), drying methods (freeze-drying vs. oven drying), oven drying temperatures (45° vs. 60°), and acid reaction temperatures (ambient vs. 60°). Using RPO analyses, we assess the potential alteration of chemical structures and changes in OC quantities and compositions induced by pretreatment conditions. Our results establish the protocol that minimizes artifacts while maintaining analytical integrity, providing standardized pretreatment operations for this rapidly advancing technique.

2 Materials and methods

2.1 Samples and preparation

Four samples with different properties were selected, including two lithified ancient sediments and two modern sediments. These samples were collected, respectively, from: (i) the Eocene Green River Formation (sedimentary rock, termed “SR1”); (ii) the Permian-Triassic Meishan section (sedimentary rock, termed “SR2”); (iii) the Yangtze River Estuary (modern sediment, termed “Sed1”); and (iv) Isfjorden fjord of Svalbard (modern sediment, termed “Sed2”). Two rock samples (i.e., SR1 and SR2) have similar TOC values but contrasting carbonate contents, whereas the other two surface sediment samples (i.e., Sed1 and Sed2) are similar in carbonate contents, but are differentiated by TOC values. All these samples were grounded into powder, homogenized, and divided into 13 aliquots, respectively, for subsequent processing.

2.2 Experimental design and operations

We conducted two contrasting acidification pretreatments, i.e., acid rinsing and acid fumigation. Particularly, acid rinsing was conducted with various conditions to compare the influence of HCl concentrations, acidification durations, drying methods and temperatures, heating during decarbonation and prolonged exposure to concentrated acid. Additionally, two sets of acid fumigation pretreatments were carried out to compare with acid rinsing and to examine the impact of water rinsing following acid fumigation (Bao et al., 2019; Harris et al., 2001; Hemingway et al., 2017a). Major variables and corresponding parameters are summarized in Table 1, while detailed conditions and results of other minor factors (e.g., reaction time and drying method) are provided in the supplementary file.

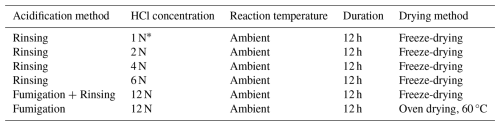

Table 1 Main experimental conditions investigated in this study. Variables include acidification methods, HCl concentrations, reaction durations and temperature, as well as drying methods and temperature. The complete experimental design is provided in Table S1.

^* The control group is 1 N HCl. We emphasize it is not necessarily the best choice of experimental condition. It is based on the experiment design and is only used to facilitate comparisons between different conditions.

For acid rinsing, each aliquot (> 200 mg) was weighed in a 50 mL glass centrifuge tube, followed by the addition of HCl with a specific concentration (i.e., 1, 2, 4 or 6 N). To ensure the complete removal of IC, we gradually added HCl in excess. Moreover, we stirred solid-liquid mixtures during and after acidification using a portable vortex mixer. To investigate the effect of heating, one aliquot was maintained at 60° (±3°) for 1 h after acidification. All reactions were set for 6, 12, or 24 h according to designated experimental conditions (see Table S1 in the Supplement). Afterwards, the supernatants were removed using pipettes after centrifugation and the residual solids were rinsed with Milli-Q water three to four times until neutralized.

For acid fumigation, two sets of subsamples were weighed (> 200 mg) and placed in a glass petri dish (Φ 60 mm × 35 mm). Before fumigation, we carefully added several drops of Milli-Q water to moisten subsamples (Harris et al., 2001; Yamamuro and Kayanne, 1995). Eight subsamples were then placed into a bilayer glass desiccator, being exposed to a glass beaker of ∼ 50 mL 12 N HCl at room temperature for 12 h. After fumigation, subsamples were supplied with two additional drops of aqueous HCl to verify the completeness of decarbonation. This is because previous studies have shown that acid fumigation is not suitable for samples containing a great portion of CaCO₃ (Hedges and Stern, 1984). As expected, two subsamples of SR1 containing ∼ 70 % $w/w$ CaCO₃ bubbled violently, indicating residual carbonate, whereas the others show no visible reaction. We then added HCl in excess to completely remove unreacted CaCO₃ in SR1 subsamples. Afterwards, one set of subsamples (SR1, SR2, Sed1, Sed2) therein were additionally rinsed with Milli-Q water for three times prior to freeze-drying.

Air drying at room temperature, oven drying and freeze-drying are typical drying methods, with the latter two being compared in this study. The majority of subsamples were freeze-dried at −60° for more than 24 h while two sets were dried in an oven at 45 or 60° for ∼ 40 h (Table S1), respectively. Two different temperatures were adopted to examine possible influence of oven drying temperatures. Fumigated subsamples were dried at 60° given that low temperature is inefficient in removing water vapor since the fumigated subsamples is prone to moisture absorption. Moreover, HCl is likely adsorbed onto samples and thus not completely removed during oven drying, which was concentrated and corrosive. To minimize the corrosive effect of vaporized HCl, fumigation subsamples were oven dried with sodium hydroxide flakes being placed alongside. After drying, subsamples were homogenized with an agate mortar and pestle. All glass containers were pre-combusted at 550° for 6 h to eliminate contaminants.

2.3 Bulk carbon measurement

Each homogenized carbonate-free subsample was divided into two aliquots for bulk carbon isotopic and RPO analyses (see Sect. 2.4), respectively. For the bulk carbon isotopic measurement, an aliquot containing ∼ 200 µg OC was weighed, placed into and wrapped in a tin capsule. Sample-containing tin capsules were transferred into the autosampler of a Thermo Fisher Scientific Flash IRMS elemental analyzer (EA) coupled to an DELTA V Advantage isotope ratio mass spectrometer (IRMS). The resulting TOC and δ¹³C_org values (Table S2) were then calibrated using three standards (i.e., USGS 40, USGS 62, USGS 64). The standard deviations (SDs) of TOC and δ¹³C_org are 0.7 % (relative) and 0.06 ‰ (absolute), respectively, based on measurement of USGS 40 (n= 5).

2.4 Ramped-temperature pyrolysis/oxidation analysis

The integrated ramped-temperature pyrolysis/oxidation (RPO) system utilized here comprises primarily of a carrier gas unit, a programmable pyrolysis furnace and an infrared CO₂ analyzer (Fig. S1 in the Supplement). The pyrolysis furnace consists of two insulated furnaces (i.e., the upper and the lower) with thermocouples. A large quartz tube was inserted into the middle chamber of furnaces with catalytic wires (Cu, Pt, Ni) placed in the lower half. During each RPO run, a smaller-sized quartz reactor was packed with an aliquot of sediment containing ∼ 1 mg OC near the bottom end, which was then introduced into the upper half of the large quartz tube. Afterwards, the upper furnace was heated at a constant ramping rate of 5° min⁻¹ from ∼ 60° to > 1000° with steady carrier gas flow rates, whereas the lower furnace was maintained isothermally at 800°. The carrier gas flow in the inner quartz tube consists of 27 mL min⁻¹ helium and 3 mL min⁻¹ diluted oxygen (5 % oxygen + 95 % nitrogen). This sub-oxidation mode (0.5 % oxygen) was consistently used in this study to facilitate direct comparisons and circumvent possible charring during pyrolysis as illustrated by previous studies (Huang et al., 2023; Stoner et al., 2023; Williams et al., 2014). Furthermore, an additional 5 mL min⁻¹ pure oxygen was introduced to the interface of two furnaces to completely oxidize vaporized OC fragments downstream. For blank control, quartz tubes were combusted at 1000° for ∼ 8 h prior to RPO analyses. Generally, the precision of the ramping temperature rate was < 0.2 %; evolved CO₂ concentrations were calibrated against standard gas containing 2000 ppm CO₂.

2.5 Simulation experiment with addition of calcium chloride

Notably, the residual chloride in acidified sediments may generate chlorine gas under ramping temperatures, which further reacts with catalytic wires, and thus, distorts the authenticity of thermograms (Hemingway et al., 2017b; Huang et al., 2023). Residual chloride was of no concern for acid rinsed samples because the majority of chloride ions were removed after repeated rinses and dilution, whereas considerable amount of chloride in acid fumigation samples, especially those dried by oven, increased the possibility of corroding catalytic wires. To continuously track the performance of catalytic wires, we ran an in-house standard sample (termed “Irati T2”), under the same conditions (ramped rate, carrier gas flow rate and O₂ concentration), before and after RPO analysis of those fumigation-treated, oven-dried aliquots. The RPO results of standard samples are presented in Fig. S2.

To further verify the impact of chlorine gas during RPO analysis, a CaCl₂ addition experiment was carried out with Irati T2. We assume that chlorine gas is generated at elevated temperatures from the decomposition of CaCl₂, the major chloric constitute in acid fumigated sediments. Specifically, one aliquot of Irati T2 was added with ∼ 30 mg CaCl₂ powders, whereas another aliquot of Irati T2 was added with ∼ 30 mg CaCl₂ powders, moistened with Milli-Q water, oven dried, and then rinsed three times to remove chloride ions (part of Ca²⁺ and other cations co-precipitated with OC). The amount of CaCl₂ added (∼ 30 mg) was carefully determined as it represents the median of potential CaCl₂ precipitates in four acid fumigated subsamples (∼ 20 to > 100 mg). Subsequently, two aliquots were successively analyzed for RPO and compared with results of raw Irati T2 material.

2.6 Data analysis

Using the aforementioned experimental design, RPO analyses were conducted for all acidified aliquots and homogenized raw (unacidified) materials. RPO thermograms were further converted to probability density distributions (i.e, p[E]) by the inverse method (Hemingway et al., 2017a), following an open-source package “rampedpyrox” in Python (Hemingway, 2017). Three fundamental parameters, including the mean value of E (termed “μ_E”), the standard deviation of E (termed “σ_E”), and the proportion of OC within a specific range of E (e.g., a kJ mol⁻¹ to b kJ mol⁻¹; termed “$f_{a<E<b}$”), were calculated for statistic analyses. The default value of the lower bound “a” is 50 kJ mol⁻¹, if not specified.

The mean of E was calculated as:

$$\begin{array}{}\text{(1)}& {\mathit{\mu }}_E={\int }_{\mathrm{0}}^{\mathrm{\infty }}Ep\left(E\right)\mathrm{d}E\end{array}$$

The square root of the variance of E was calculated as:

$$\begin{array}{}\text{(2)}& {\mathit{\sigma }}_E=({\mathit{\mu }}_{E^{\mathrm{2}}}-[{\mathit{\mu }}_E{]}^{\mathrm{2}}{)}^{\mathrm{1}/\mathrm{2}}\end{array}$$

The proportion of OC within a specific E range (a kJ mol⁻¹ to b kJ mol⁻¹) was calculated as:

$$\begin{array}{}\text{(3)}& f_{a<E<b}={\int }_a^{\mathrm{b}}p\left(E\right)\mathrm{d}E\end{array}$$

RPO parameters measured and/or calculated as well as bulk parameters of all subsamples are listed in Table S2. Based on RPO results of the in-house standard (Irati T2; n= 8), the standard deviation (SD) of μ_E is 0.50 kJ mol⁻¹, and SD of σ_E is 0.18 kJ mol⁻¹, denoting excellent reproducibility.

3 Results and discussion

3.1 HCl concentration influences on thermochemical properties and potential mechanisms

Ramped-temperature pyrolysis oxidation (RPO) results show that samples after acid rinsing exhibit pronounced deviations in thermograms and energy distributions (Table S2). Variations of secondary factors (e.g., reaction time, drying methods and temperatures) exert insignificant or erratic influences on the distribution patterns of thermograms (Figs. S3 and S4). It indicates that prolonged reaction time, oven drying and heating during decarbonation likely do not lead to additional OC loss. However, for specific sample (e.g., Sed2), OC loss caused by these factors is evident (Table S2), suggesting that their influence on thermographic distribution is comparatively limited. In contrast, thermographic patterns exhibit systematic shifts along the gradient of HCl concentrations that were used for sample acidification (Fig. 1).

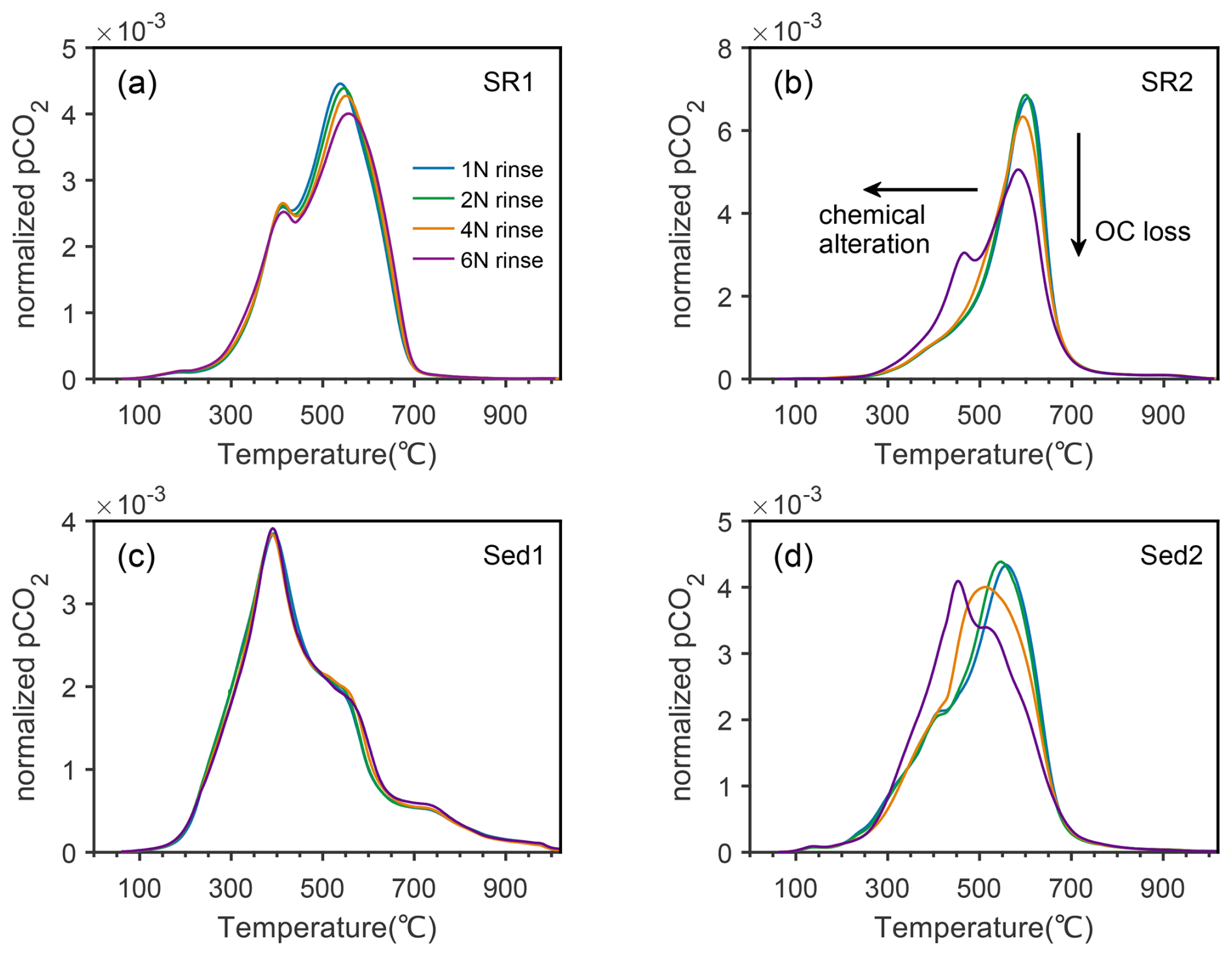

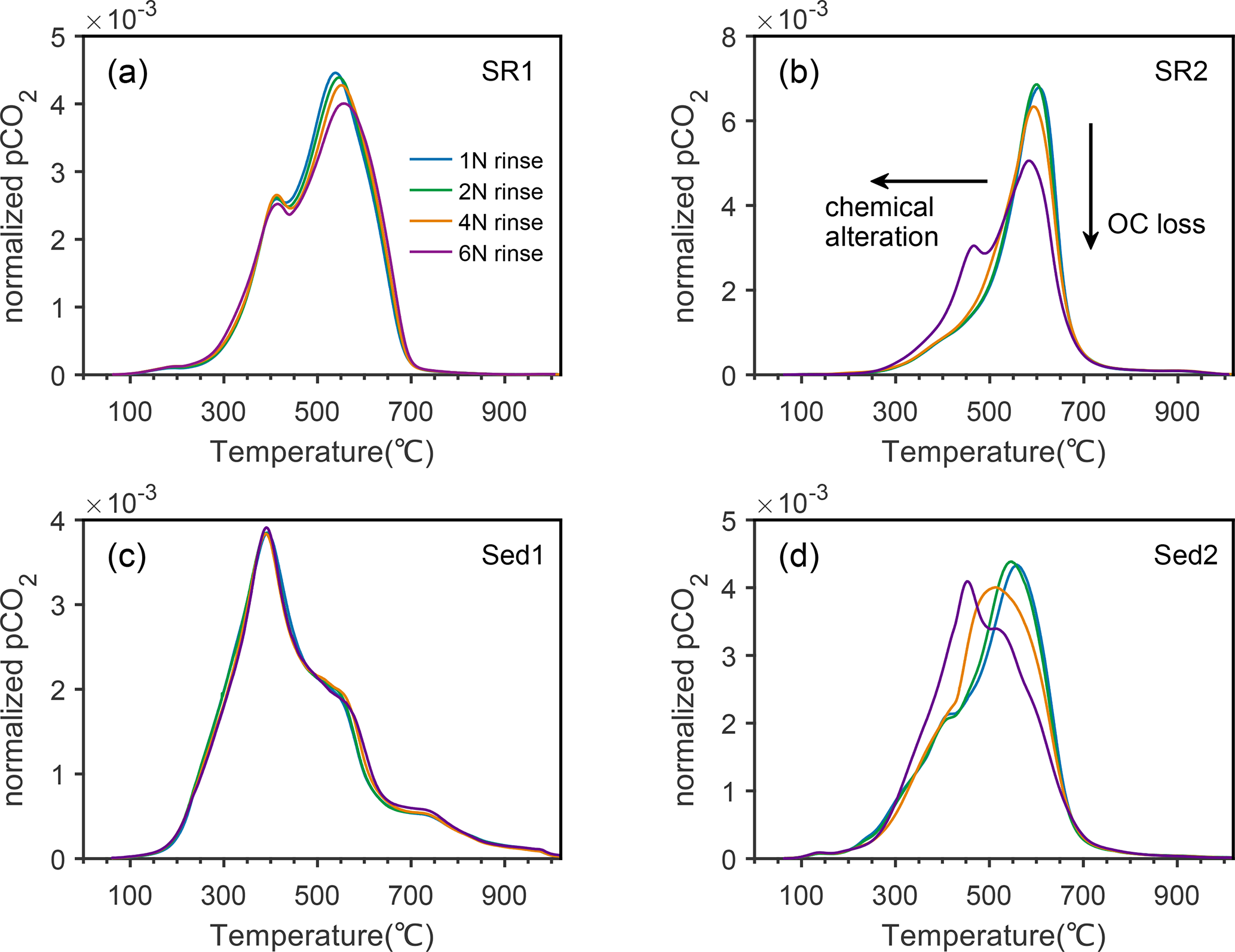

Figure 1 Normalized thermograms of subsamples rinsed with different concentrations of HCl. (a), (b), (c) and (d) are subsamples of SR1, SR2, Sed1 and Sed2, respectively. Two orthogonal arrows in panel (b) indicate different variation modes of thermograms.

To illustrate the consistency between thermograms and HCl concentrations used, we orthogonally decomposed evolutionary trends of thermograms into two directions. Changes in the vertical orientation are interpreted as enrichment or loss of OC, whereas horizontal shifts represent alterations in thermal stability and, presumably, structural distortion (Fig. 1). Intriguingly, all four samples in this study exhibit distinct patterns encompassing different vertical and horizontal variations.

Notably, the intensity of OC decomposition at T_max (temperature of maximum CO₂ concentrations) diminishes progressively with increasing HCl concentrations for lithified rock samples (i.e., SR1 and SR2) (Fig. 1a and 1b), consistent with slightly broadening thermograms and elevations in standard deviations of activation energies (σ_E) (Table S2). Since T_max values are ∼ 540° and ∼ 600° for SR1 and SR2, respectively, within the decomposition temperature window of heavily altered petrogenic OC (Hemingway et al., 2018; Venturelli et al., 2020), such decreases in peak CO₂ decomposition also indicate a reduction in the content of thermochemically recalcitrant OC (Bao et al., 2019). In contrast, whereas changes are insignificant in Sed1 (Fig. 1c), a horizontal shift of thermograms towards lower temperatures was observed for Sed2 (Fig. 1d), suggestive of OC being thermochemically more labile as a consequence of elevated HCl concentrations. With the exception of Sed1, the uniform alteration of OC toward labile thermochemical properties, by lowering proportions of recalcitrant OC and/or shifting thermograms to lower temperatures, implies systematic effects induced by HCl concentrations (Fig. 1).

Pronounced variations in thermograms and accordingly enhanced lability of OC under concentrated HCl are likely attributed to structure alteration of mineral matrices and their interactions with OC, in addition to leaching of a fraction of dissolvable OC through acid rinsing. In general, OC exists in sediments in the form of free molecules, as aggregates, bound to minerals, or as kerogens. A considerable amount of OC in sediments is stabilized as OC–Fe chelates (Lalonde et al., 2012; Mackey and Zirino, 1994), coated onto mineral surfaces (Mayer, 1994a, b; Vogel et al., 2014), trapped in carbonate matrices (Ingalls et al., 2004; Summons et al., 2013; Yang et al., 2025; Zeller et al., 2020, 2024) and preserved in mineral interlayers (Blattmann et al., 2019; Huang et al., 2023; Kennedy et al., 2002). The dissolution of carbonates under diluted HCl would release OC initially preserved in the carbonate matrix (Zeller et al., 2020), whereas other minerals and OC associated therein are undisturbed. Through carbonate dissolution, a minimal proportion of OC is dissolved in the aqueous phase and washed away at the following water rinsing steps. In comparison, elevated concentrations of HCl would further attack other minerals (e.g., iron oxides, clay minerals) and leach metal ions into solution (Brodie et al., 2011; Fujisaki et al., 2022; Kumar et al., 1995). In fact, previous studies demonstrate that concentrated acids cause metal (e.g., Cu, Fe, and Zn) isotopic fractionations by leaching minerals disproportionally (Fernandez and Borrok, 2009; Rongemaille et al., 2011). Such observation is in consensus with elevated mass loss under concentrated HCl in this study (Table S2). On one hand, concentrated HCl promotes the leaching of OC by releasing and dissolving molecules initially associated with minerals. On the other hand, the destruction of mineral matrix induces profound structural alterations of organic-inorganic complexes (Bao et al., 2019), and reduces organo-mineral binding energy, which is evidenced by shifting E distributions toward lower activation energies (Table S2).

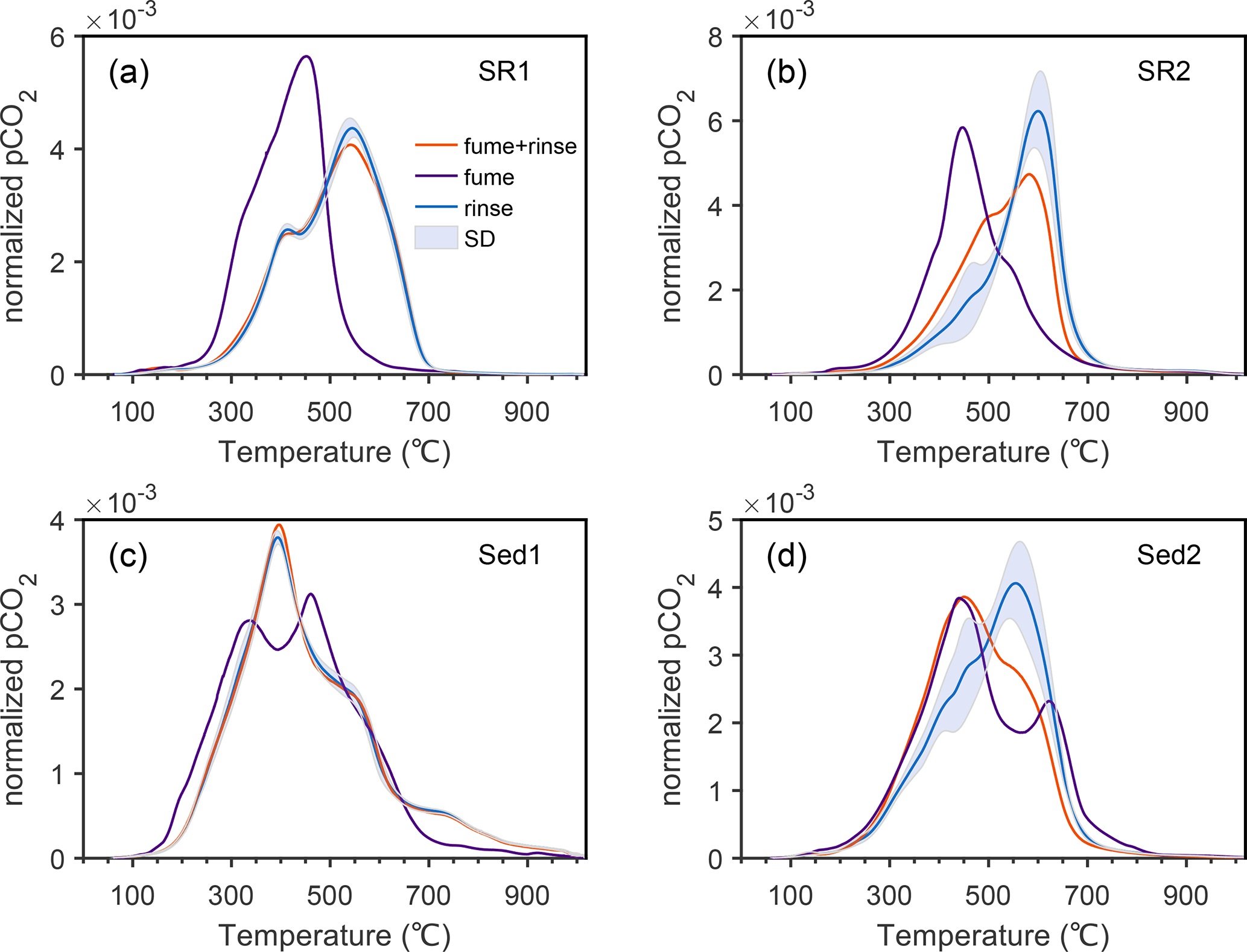

Figure 2 Normalized thermograms of subsamples after acid rinsing and fumigation. Panels (a), (b), (c) and (d) are subsamples of SR1, SR2, Sed1 and Sed2, respectively. Purple curves and orange curves present subsamples acidified using typical fumigation method and fumigation-rinsing method, while blue curves are mean values of acid rinsed subsamples (Table S1) with shaded intervals representative of standard deviations.

Diverse thermographic shifts along HCl gradients suggest sample-specific impacts of acidification conditions on RPO thermograms and thus warrant careful examination of sample properties. We propose that contrasting variations among samples are primarily driven by organo-mineral interactions and diagenetic alterations. Albeit with contrasting carbonate contents, two lithified sediments respond similarly to elevated HCl concentrations (i.e., denudation in main peak heights and broadening thermograms) without significant thermographic shifts. This is likely due to strong organo-mineral interactions established and homogenized OC properties with time (Craddock et al., 2018; Kennedy et al., 2014). As diagenesis proceeds, processes including the breakdown of biopolymers, modification of functional groups and secondary condensation reactions take place successively (Burdige, 2007), leading to enhanced degrees of reconstruction and lower overall vulnerability to external alterations. In comparison, Sed2 is a modern high-latitude surface sediment with limited diagenetic alteration and hydrodynamic sorting. Accordingly, the majority of OC is likely bound to minerals loosely, and thus would respond considerably to acid concentrations through reversibly breaking or re-establishing weak bonds, which is expressed as horizontal shifts of thermograms (Fig. 1). Conversely, Sed1 represents sediments deposited under aerobic settings on an expansive shelf after extensive degradation along fluvial systems. Consequently, OC preserved therein, regardless of its terrestrial or marine origin, is strongly bond to minerals and thus exhibits sluggish responses to increasing HCl concentrations with nearly overlapping thermograms (Fig. 1) (Huang et al., 2023).

3.2 Thermographic distortion by acid fumigation and the effect of calcium chloride

Significant discrepancies are observed in RPO thermograms between acid fumigation and acid rinsing (Fig. 2), as conventional acid fumigation (i.e., without water rinsing) largely lowers or diversifies thermochemical stability of OC. This is related to two putative mechanisms. On one hand, acid fumigation establishes an ambient environment of vaporized HCl, which further attacks sample particles through formation of concentrated HCl solution (Bao et al., 2019). On the other hand, CaCl₂ formed after decarbonation further interacts with OC and alters the structure of OC and organo-mineral interactions during combustion (Wu et al., 2024).

The impact of concentrated HCl generated from acid vapor condensation is assessed through the acid fumigation-rinsing experiment (fumigation + rinsing; Table 1). Under this experiment, acid fumigated samples are further rinsed with Milli-Q water to remove HCl and CaCl₂, which eliminates potential effects of residual HCl and CaCl₂ upon RPO analysis. Results show that thermograms of fumigation-rinsing subsamples are, in general, comparable to those of HCl rinsed subsamples, exhibiting a consistent thermographic shift toward more concentrated HCl conditions (e.g., 12 N HCl) (Fig. 2). Therefore, it indicates that acid fumigation through the condensation of HCl vapor exerts a noticeable and systematic impact on the thermochemical characteristics of sedimentary OC, which is consistent with systematic changes along the gradient of HCl concentration used and likely implies incomplete removal of HCl vapor during drying.

The contrasting results between typical fumigation and fumigation-rinsing methods suggest that CaCl₂ may play an additionally dominant role in modifying thermochemical properties of sedimentary OC, given the residual CaCl₂ being the main difference between these two groups. We propose that CaCl₂ may influence thermograms in two contrary ways. First, HCl or chlorine gas may boost the breakup of organo-mineral bonds or covalent OC bonds and thus stimulate the decomposition of OC at elevated temperature (Plante et al., 2013). In the meantime, chlorine gas generated through the decomposition of CaCl₂ under high temperatures interacts directly with the catalytic wires (Hemingway et al., 2017b), corrodes reactor tubes (Fig. S5), and thus, influences the thermochemical reaction rates. Conversely, calcium ions (and other metal ions) may enhance organo-cation interactions or facilitate organo-mineral aggregations (Keil and Mayer, 2014; Rowley et al., 2018; Sowers et al., 2018), and thus complicate reaction kinetics. It has been demonstrated that Ca²⁺ in soils and sediments enhances the sorption and stabilization of OC (Feng et al., 2005; Rowley et al., 2018). However, the proposed Ca-stabilization mechanism contradicts the observation of fumigated OC being more labile. Therefore, it is possible that HCl and chlorine gas, rather than the calcium ion, play a more important role in affecting the ultimate thermochemical decomposition of sedimentary OC after fumigation.

The assumption of thermochemical biases induced by CaCl₂ is further verified by the CaCl₂ addition experiment with the in-house standard (Irati T2). Consistent with the assumption above, the thermogram of Irati T2 with the addition of CaCl₂ is distinct from those of raw material and CaCl₂ addition-rinsing (Fig. 3). Therefore, it demonstrates that thermographic distortion of fumigated subsamples is most likely an artifact of CaCl₂. We further measured the raw Irati T2 material before and after the analyses of fumigated subsamples, which apparently corrodes and melts catalytic wires. Invariable thermograms of Irati T2, yet significantly declined CO₂ yield after the analysis of fumigated subsamples suggest insignificant thermographic distortions but incomplete catalytic conversion of CO to CO₂ after the corrosion of the catalytic wires (Fig. S2). Overall, the above results suggest that CaCl₂ biases the thermographic distortion by dictating the pyrolytic breakdown of sedimentary OC.

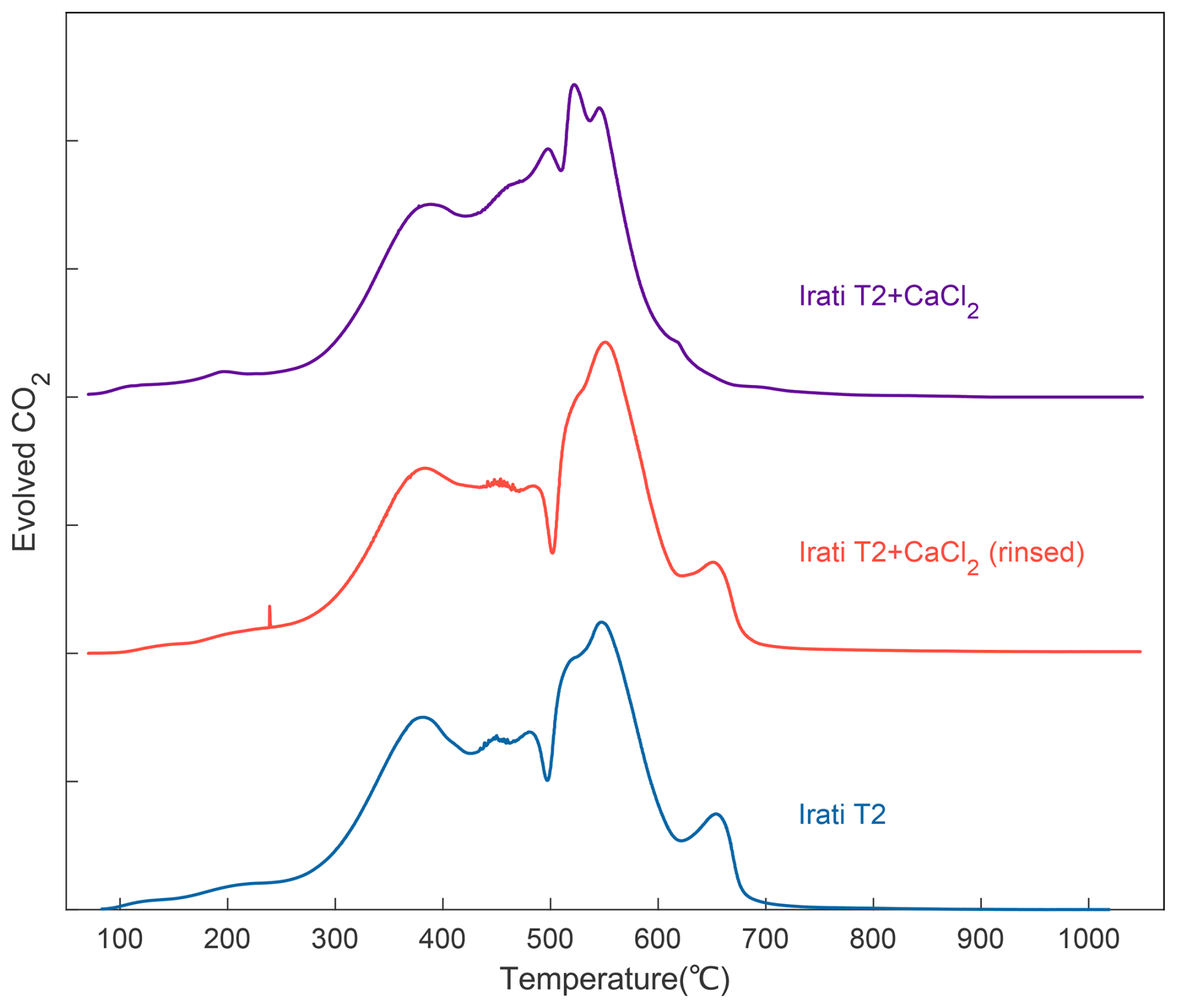

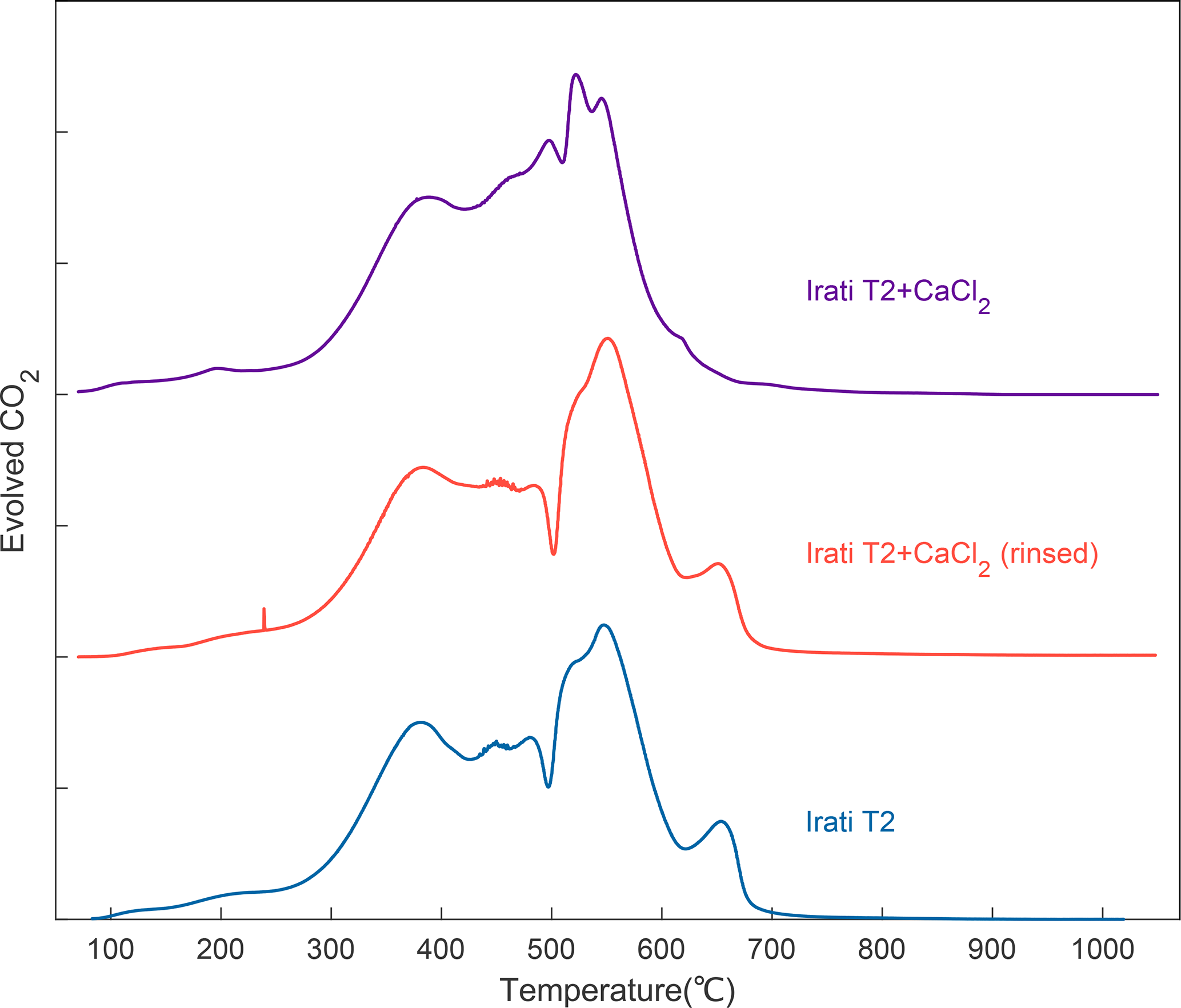

Figure 3 Parallel thermograms of the in-house standard (Irati T2) with distinct treatments. From bottom to top, the blue curve is Irati T2 without any extra treatment; the dark orange curve represents Irati T2 mixed with ∼ 30 mg CaCl₂ and then rinsed with Milli-Q water preceding RPO analysis; the dark purple curve is Irati T2 with addition of ∼ 30 mg CaCl₂ preceding RPO analysis. All samples were analyzed in sequence within two days to alleviate potential systematic biases with time.

3.3 Decarbonation pretreatments deviate thermochemical properties from pristine conditions

Given diverse responses of sediments to HCl concentrations and acid fumigation, it is reasonable to assume that all pretreatment conditions would have resulted in traceable deviation of sample properties away from pristine conditions inherent in unprocessed raw materials. This is verified and examined by comparing RPO thermograms between acidified (i.e., rinsing, fumigation) and unacidified subsamples. Due to the influence of IC in raw materials, thermograms of both processed and raw sediments were first normalized to back-calculated TOC content of each specific sample. As organic carbon contents of raw subsamples cannot be directly estimated, we used back-calculated TOC of fumigated subsamples, which minimize OC loss, to approximate those of raw subsamples. Previous studies suggested that IC decomposition normally commences at ∼ 500° or higher (Capel et al., 2006; Hemingway et al., 2017a). Thus, we only focus on thermographic segments evolved under 450°, below which IC decomposition and consequential CO₂ production are considered to be negligible. Accordingly, we assume that any apparent inconformity of thermograms is ascribed to OC decomposition or alteration.

When thermograms are overlain, acid rinsed subsamples are, on average, more similar to pristine conditions (Fig. 4). Therefore, it indicates acid rinsing generally maintains the characteristic of the raw sample without notable alteration of thermochemical properties. However, the inconsistency between acid rinsed and raw samples is significant for Sed1 and Sed2. Notably, the instantaneous CO₂ concentrations of raw material may be overestimated, due to the potential decomposition of some carbonate minerals at low temperatures (Hazra et al., 2022; Sebag et al., 2018) and/or OC loss during acid fumigation. The former assertion of carbonate mineral decomposition is corroborated by relatively lower T_max value of raw Sed2 sample compared to the corresponding acidified samples (Fig. S6). Considering all of these uncertainties together, we are confident to conclude that acid rinsing is more conducive to maintaining sediment pristine conditions, producing reliable and unbiased thermochemical results.

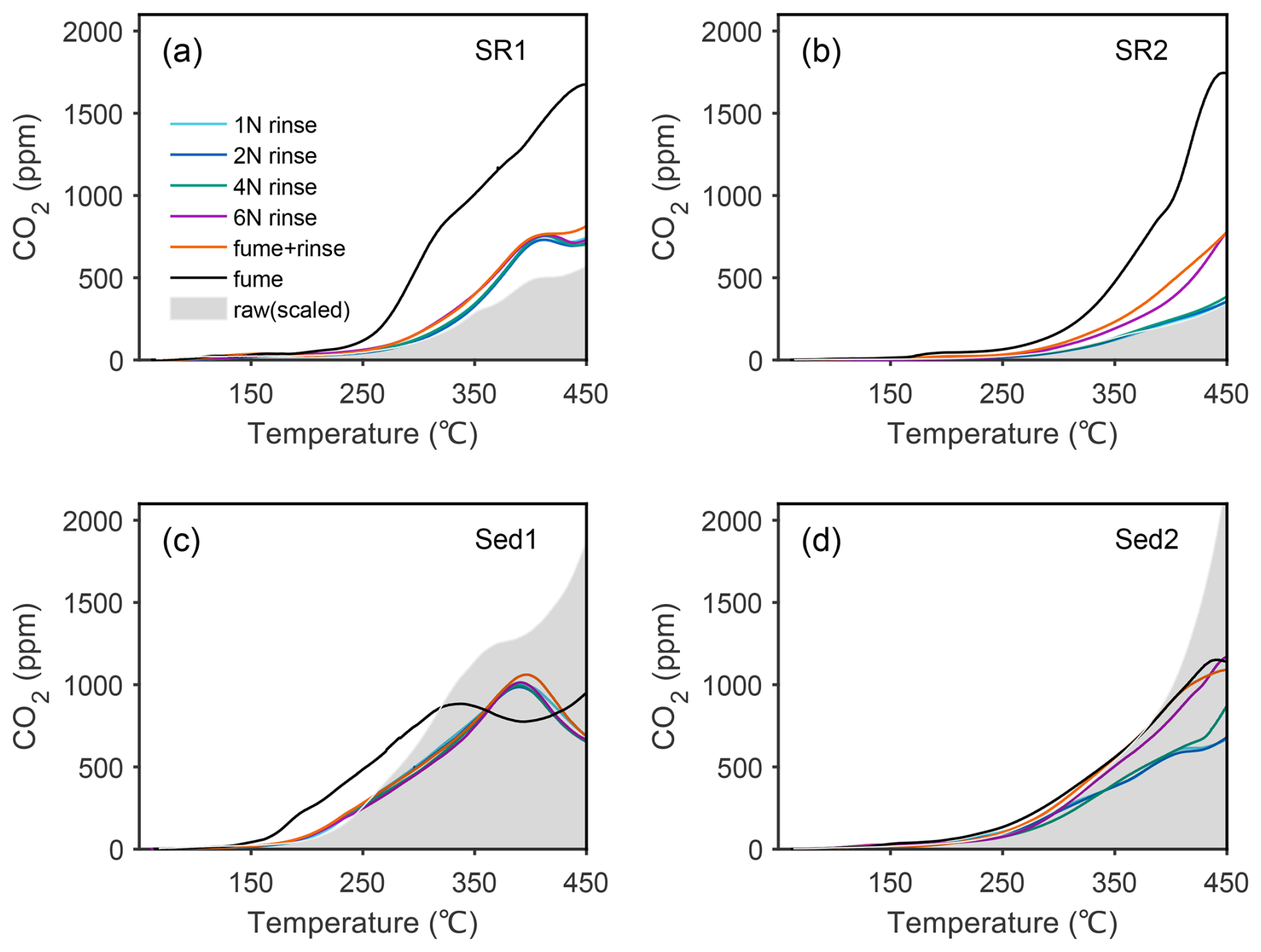

Figure 4 Evaluation of the similarity to the natural pristine states of subsamples acidified by different methods. Panels (a), (b), (c), and (d) are subsamples of SR1, SR2, Sed1, and Sed2, respectively. Each curve represents the thermogram of a subsample acidified by corresponding procedure. The grey area in each subgraph is the thermogram of the raw (unacidified) aliquot after normalization to OC contents.

4 Conclusion and recommendations

This study systematically evaluated how decarbonation pretreatments influence ramped-temperature pyrolysis/oxidation (RPO) measurements of sedimentary OC. We demonstrate that both acid rinsing (particularly acid concentration) and fumigation significantly alter thermochemical properties, with higher acid concentrations promoting mineral dissolution, modifying organo-mineral interaction and leaching soluble OC fractions. Crucially, RPO profiles exhibit remarkable methodological differences, where acid fumigation introduces artifacts through corrosive CaCl₂ decomposition and acid vapor exposure, while acid rinsing with 1 N HCl better preserves natural OC characteristics. Crucially, our main conclusions remain applicable for other experimental setups (e.g., O₂ concentration in RPO analysis). These findings highlight that pretreatment selection directly impacts the interpretation of thermal degradation characteristics in sedimentary systems.

For reliable RPO analysis, we suggest using diluted HCl rinsing with moderate reaction times (∼ 12 h) as the optimal balance between inorganic carbon removal and minimal OC alteration. Other secondary factors (e.g., reaction time) likely have limited impacts on RPO results but may introduce greater biases in bulk carbon measurement. Freeze-drying remains effective but requires strict contamination control (Jiang et al., 2023). While heating accelerates decarbonation, it should be avoided for organic-rich (e.g., protein-rich) sediments to prevent hydrolytic OC loss and leaching of soluble OC. Further studies should incorporate supernatant analysis of acid-soluble OC and complementary techniques like Fourier transform infrared spectroscopy (FTIR) to fully characterize pretreatment impacts (Kleber et al., 2015). Overall, this work establishes that RPO, when paired with appropriate sample preparation, can resolve subtle OC properties obscured by bulk analytical approaches.
